Cooling System, W/ Baffle, FT4/ Stage 5 (126004 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE579843	1	Radiator Reservoir	-
2	AL201300	1	Level Switch	Coolant Level Switch
3	RE312969	1	Filler Cap	-
4	19M7775	2	Screw	M6 X 16
5	R540040	2	Support	-
6	TA22872	1	Bracket	-
7	14M7299	2	Flange Nut	M12
8	TA20141	1	Bracket	SUB FOR RE596721
9	R555209	1	Support	-
10	R563582	1	Bracket	-
11	19M7866	10	Screw	M8 X 20
12	19M7814	4	Screw	M12 X 50
13	RE588085	1	Plate	-
14	RE594399	1	Aftercooler	-
15	24H1822	10	Washer	11/32" X 7/8" X 1/16"
16	R563583	1	Isolator	Cold Side
17	R565211	4	Bushing	-
18	19M8327	1	Screw	M8 X 25
18	19M7866	2	Screw	M8 X 20, USE WITH TA20141
19	R563585	1	Isolator	Front
20	R566165	1	Isolator	Hot Side
21	19M7867	16	Screw	M8 X 25
22	19M8291	4	Screw	M8 X 35
23	R563584	2	Isolator	Side
24	R565007	3	Isolator	Rear
25	RE592537	1	Plate	-
26	RE592536	1	Module	-
27	19M7865	17	Screw	M8 X 16
28	19M7881	4	Screw	M8 X 20
29	14M7518	1	Flange Nut	M10
30	24M7296	2	Washer	10.500 X 30 X 2.500 mm
31	R112772	1	Screw	-
32	R252362	2	Rivet	-
33	R563561	1	Isolator	Bottom
34	R563568	1	Isolator	Top
35	R564997	2	Bumper	-
36	R569615	1	Brace	-
37	R569759	1	Pivot	-
38	R570110	2	Seal	-
39	RE588070	1	Radiator	-
40	RE588072	1	Vapor Condenser	-
41	TA16059	1	Channel	Radiator, RH
42	RE588075	1	Support	-
43	AT460623	10	Isolator	-
44	RE588090	1	Fuel Cooler	-
45	RE589170	1	Latch	-
46	RE594343	1	Channel	Radiator, LH
47	RE594344	1	Channel	Radiator Lower Support
48	RE594345	1	Channel	-
49	24M7207	4	Washer	8.400 X 24 X 2 mm
50	M84971	4	Nut	-
51	RE590524	1	Adapter Fitting	-
52	RE589157	1	Fitting	-
53	RE589160	1	Drain Valve	-
54	28H3429	1	Washer	0.423" X 0.675" X 3/8", USE WITH TR111722

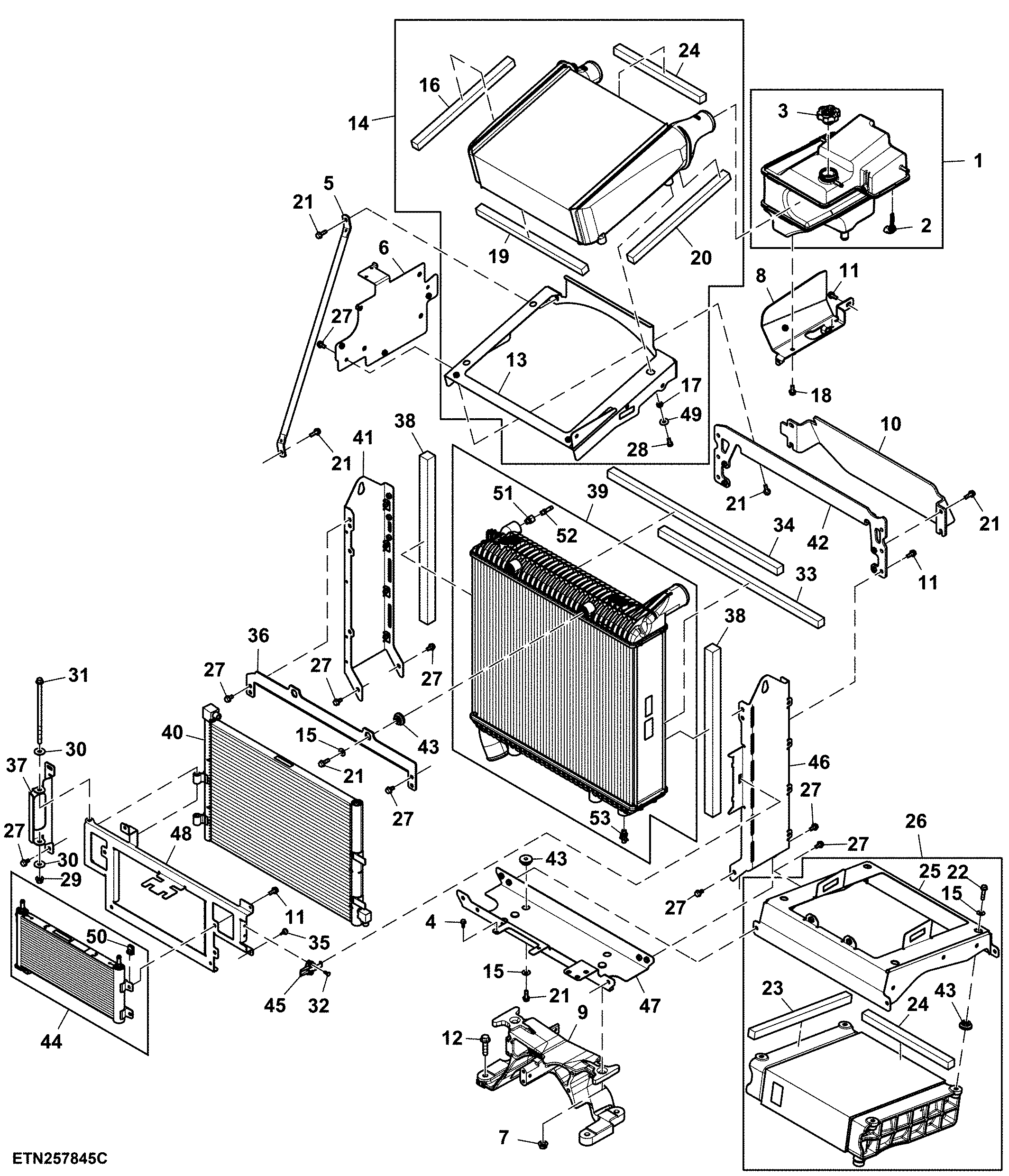

Cooling System, W/ Baffle, FT4/ Stage 5 (126004 - )
