Wiring Harness, Adding 1st SCV, Front Hitch Ready, W/O TLS™, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE564203	1	Wiring Harness	-
2	57M9796	1	Elec. Connector Housing	Interconnect, X710A
3	57M9940	2	Elec. Connector Accessory	-
4	57M10517	1	Elec. Connector Housing	Front Hitch SA/DA Switch Valve, Y649
4	57M8022	1	Elec.Connect Locking Device	-
4	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
5	57M7533	1	Elec. Connector Housing	-
5	57M7621	2	Elec.Connect Locking Device	-
6	57M7840	1	Elec. Connector Housing	Front Hitch / SCV XI, A711
6	57M7469	1	Electrical Connector Assy	-
6	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D
7	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D
7	57M7469	1	Electrical Connector Assy	-
7	57M7840	1	Elec. Connector Housing	SCV XI / SCV XII, A712
8	57M7839	2	Electrical Connector Assy	-
9	57M7840	1	Elec. Connector Housing	SCV XII / SCV XIII, A713
9	57M7469	1	Electrical Connector Assy	-
9	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D
10	AH225364	5	Clip	-
11	RE564951	1	Chassis Wiring Harness	-
12	57M9772	1	Elec. Connector Housing	CAN Backbone from Chassis
12	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
13	57M15493	2	Elec. Connector Accessory	-
14	RWA11136	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9
14	57M10300	1	Elec. Connector Housing	Chassis harness(Midstack Circuits)
15	57M10611	1	Elec. Connector Housing	Front Controller J1 Connector, A580
15	RWA11030	1	Repair Wire Assembly	Cavity A1, A2, A3, A4, B2, B3, B4, C4, D4, E3, E4, F2, F3, F4, A1, A2, B1, B2, B3, B4, C1, C2, C4, D1, D2, D3, D4, E1, E2, E3, E4, F1, F2, F3, G2, G3, H2, J2, J4, K2, K4
15	RWA10888	1	Repair Wire Assembly	Cavity G1, G3, G4, H1, L1, L2, L3, L4, M1, M2, M3, M4
16	57M10604	1	Elec. Connector Housing	-
17	57M10614	1	Elec. Connector Housing	Front Controller J2 Connector
18	57M10613	1	Elec. Connector Housing	-
19	57M7262	1	Elec. Connector Housing	Hitch Following, X117
19	57M8907	1	Elec.Connect Locking Device	-
19	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D, E, F, G, H, J, K
20	L116274	1	Elec. Connector Accessory	-
21	RWA11022	1	Repair Wire Assembly	Cavity 1, 2
21	57M9776	1	Elec. Connector Housing	CAN Terminator, A912
22	57M11134	1	Elec. Connector Housing	-
23	RE258807	2	Tie Band	-
24	RE586787	1	Wiring Harness	-
25	57M8484	1	Elec. Connector Housing	Chassis Interconnect, X830A
25	57M9919	1	Elec. Connector Accessory	-
25	RWA10703	1	Repair Wire Assembly	Cavity A, B, C, D, E, F, G, H, J, K, L, M, N, P, R, S
26	57M9804	1	Elec. Connector Housing	TLS™ Interconnect, X840B
26	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9
27	57M9800	1	Elec. Connector Housing	-
28	57M9792	1	Elec. Connector Housing	Mid-Stack Interconnect, X710B
28	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7
29	R213663	3	Clamp	-

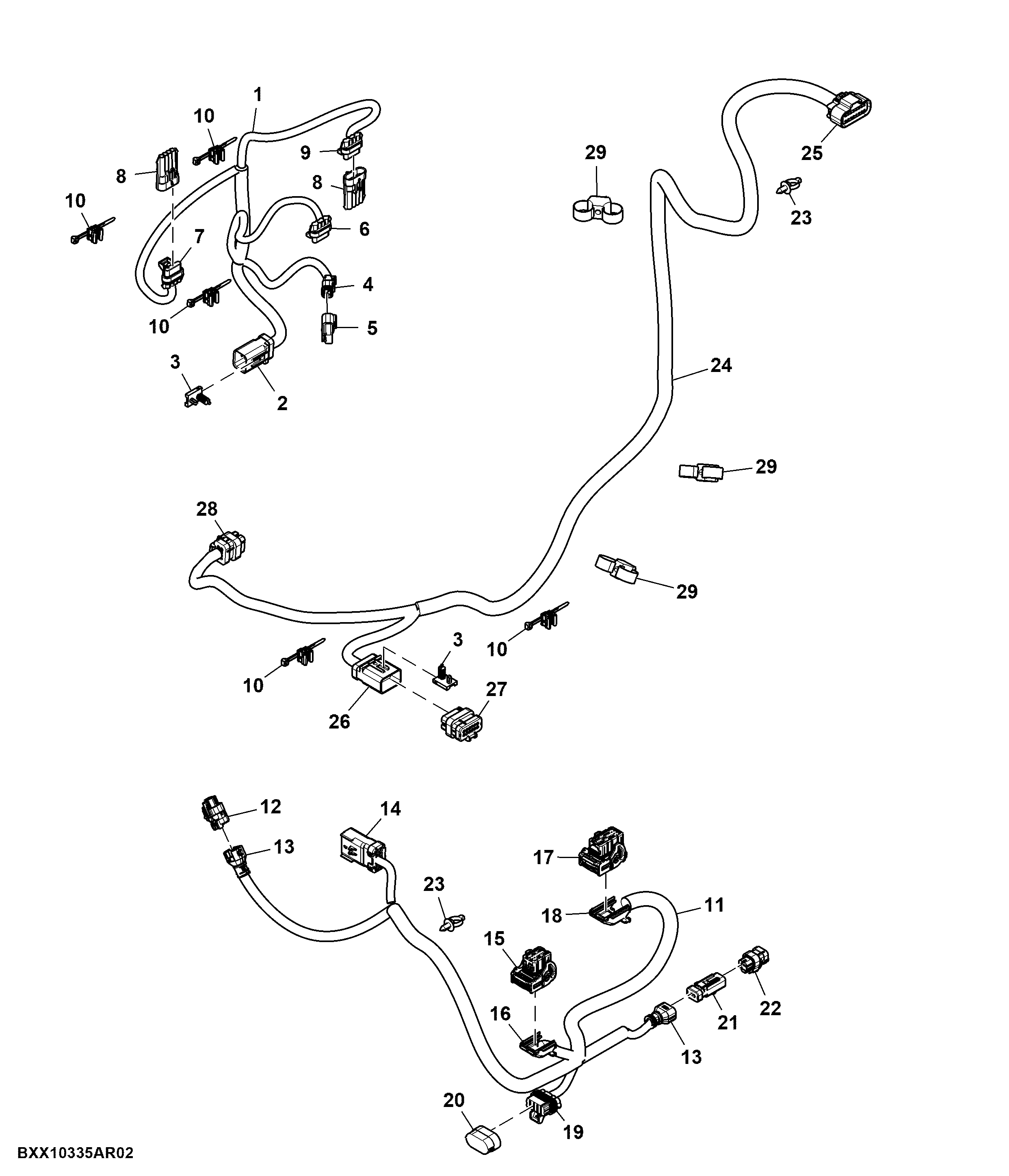

Wiring Harness, Adding 1st SCV, Front Hitch Ready, W/O TLS™, Attachment
