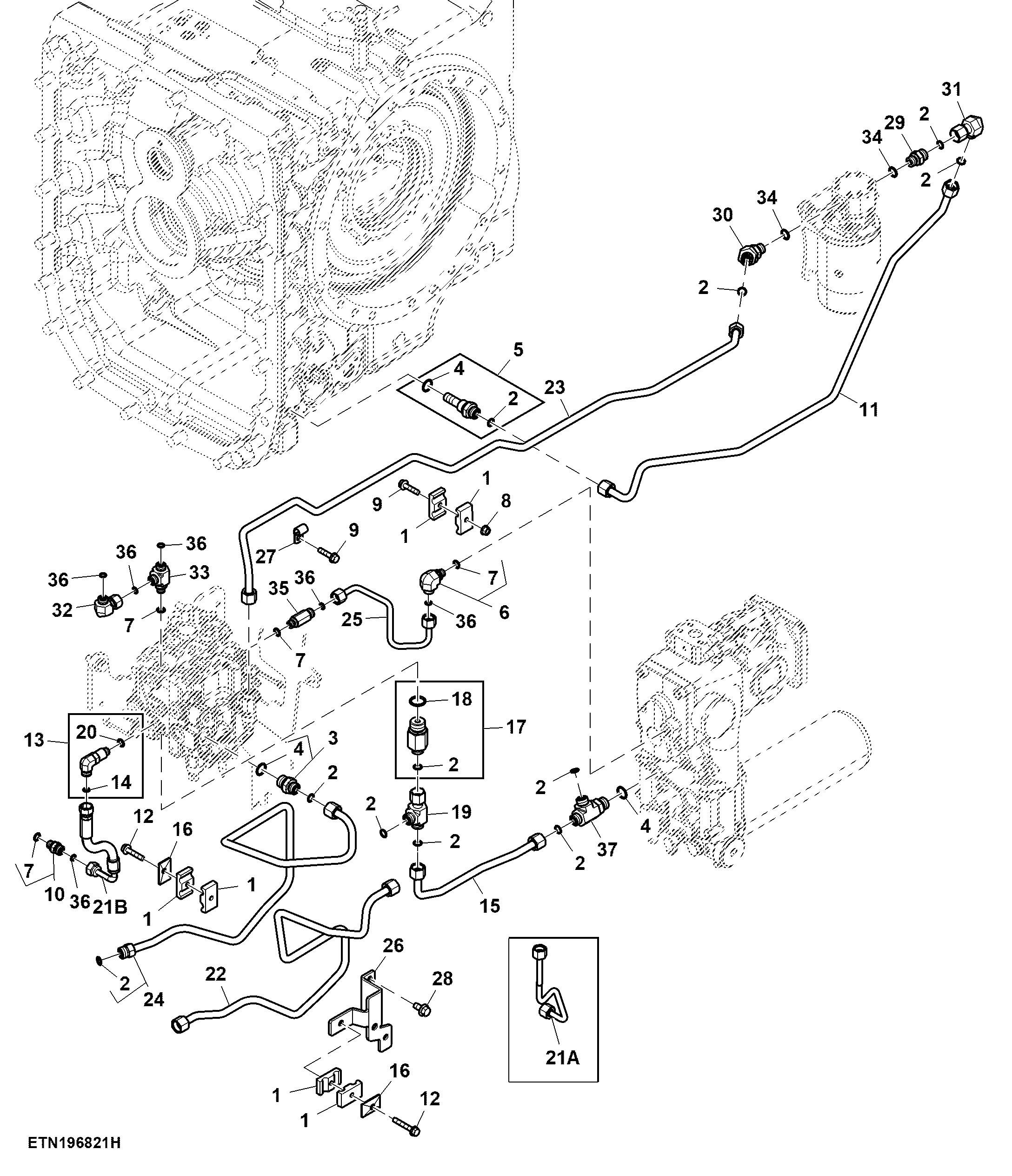

Oil Line, Steering System AutoTrac™, PST / e23™

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H135156	6	Clamp	-
2	T77857	11	O-Ring	-
3	38H5076	1	Adapter Fitting	-
4	51M7045	3	O-Ring	19.300 X 2.200 mm
5	RE341931	1	Adapter Fitting	-
6	38H5016	1	Elbow Fitting	-
7	51M7041	4	O-Ring	11.300 X 2.200 mm
8	14M7298	1	Flange Nut	M8
9	19M7897	2	Screw	M8 X 35
10	38H5002	1	Adapter Fitting	-
11	RE564195	1	Oil Line	Pump Supply From Reservoir
12	19M7800	2	Screw	M8 X 50
13	RE542835	1	Elbow Fitting	-
14	R63548	1	O-Ring	-
15	TA10990	1	Line	Return Line From HSSN To Pump
16	H121168	2	Plate	-
17	TA10960	1	Adapter Fitting	-
18	51M7047	1	O-Ring	23.600 X 2.900 mm
19	38H5069	1	Tee Fitting	-
20	51M7095	1	O-Ring	11.300 X 2.200 mm
22	TA12924	1	Line	LH Steering
23	TA12431	1	Oil Line	Pump Motor Outlet
24	TA12925	1	Line	RH Steering
25	TA13183	1	Oil Line	Pilot Tank To Charge
26	TA12920	1	Bracket	-
27	H75541	1	Clamp	-
28	19M7784	2	Screw	M10 X 20
29	38H5003	1	Adapter Fitting	-
30	38H5071	1	Elbow Fitting	-
31	38H5107	1	Elbow Fitting	-
32	38H5145	1	Elbow Fitting	-
33	38H5067	1	Tee Fitting	-
34	51M7043	2	O-Ring	15.300 X 2.200 mm
35	38H5503	1	Adapter Fitting	-
36	T77613	6	O-Ring	-
37	38H5040	1	Tee Fitting	-
21A	TA16150	1	Line	Pilot Tank To Charge, ORDER TA22241
21B	TA22241	1	Line	Pilot Tank To Charge

Oil Line, Steering System AutoTrac™, PST / e23™

Нет текстового описания
