Wiring Harness, Selective Control Valve, Front Hitch Ready, W/ TLS™, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE564203	1	Wiring Harness	-
2	57M9796	1	Elec. Connector Housing	Interconnect, X710A
3	57M9940	1	Elec. Connector Accessory	-
4	57M10517	1	Elec. Connector Housing	Front Hitch SA/DA Switch Valve, Y649
4	57M8022	1	Elec.Connect Locking Device	-
4	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
5	57M7533	2	Elec. Connector Housing	-
5	57M7621	1	Elec.Connect Locking Device	-
6	57M7840	1	Elec. Connector Housing	Front Hitch / SCV XI, A711
6	57M7469	1	Electrical Connector Assy	-
6	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D
7	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D
7	57M7469	1	Electrical Connector Assy	-
7	57M7840	1	Elec. Connector Housing	SCV XI / SCV XII, A712
8	57M7839	2	Electrical Connector Assy	-
9	57M7840	1	Elec. Connector Housing	SCV XII / SCV XIII, A713
9	57M7469	1	Electrical Connector Assy	-
9	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D
10	AH225364	3	Clip	-
11	RE564952	1	Chassis Wiring Harness	-
12	57M9772	1	Elec. Connector Housing	CAN Backbone from Chassis
12	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
13	57M10297	1	Elec. Connector Housing	Chassis Harness (TLS™ Circuits)
13	RWA11137	1	Repair Wire Assembly	Cavity 10, 11, 12, 13, 14, 3, 4, 5, 6, 9, 1, 2, 3, 4, 5, 6
14	57M10611	1	Elec. Connector Housing	Front Controller J1 Connector, A580
14	RWA10888	1	Repair Wire Assembly	Cavity G1, G3, G4, H1, L1, L2, L3, L4, M1, M2, M3, M4
14	RWA11030	1	Repair Wire Assembly	Cavity A1, A2, A3, A4, B2, B3, B4, C4, D4, E3, E4, F2, F3, F4, A1, A2, B1, B2, B3, B4, C1, C2, C4, D1, D2, D3, D4, E1, E2, E3, E4, F1, F2, F3, G2, G3, H2, J2, J4, K2, K4
15	57M10604	1	Elec. Connector Housing	-
16	57M10614	1	Elec. Connector Housing	Front Controller J2 Connector
16	RWA11030	1	Repair Wire Assembly	Cavity A1, B1, B2, C1, C4, D1, D2, D3, D4, F2, F3, G3, H2, J4
16	RWA10888	1	Repair Wire Assembly	Cavity L1, L2, L4, M1, M2, M3, M4
17	57M10613	1	Elec. Connector Housing	-
18	57M7262	1	Elec. Connector Housing	Hitch Following, X117
18	57M8907	1	Elec.Connect Locking Device	-
18	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D, E, F, G, H, J, K
19	L116274	1	Elec. Connector Accessory	-
20	RWA11022	1	Repair Wire Assembly	Cavity 1, 2
20	57M9776	1	Elec. Connector Housing	CAN Terminator, A912
21	57M7254	1	Elec. Connector Housing	TLS™ Damping Solenoid, Y516
21	RWA11083	1	Repair Wire Assembly	Cavity A, B
22	57M9556	1	Elec. Connector Accessory	-
23	RE12364	1	Electrical Connector Assy	TLS™ Position Sensor, B535
23	RWA11147	1	Repair Wire Assembly	Cavity A, B, C
24	57M10300	1	Elec. Connector Housing	Chassis Harness (Midstack Circuits)
25	57M15493	1	Elec. Connector Accessory	-
26	57M8908	1	Clip	-
27	RE258807	3	Tie Band	-
28	57M11134	1	Elec. Connector Housing	-

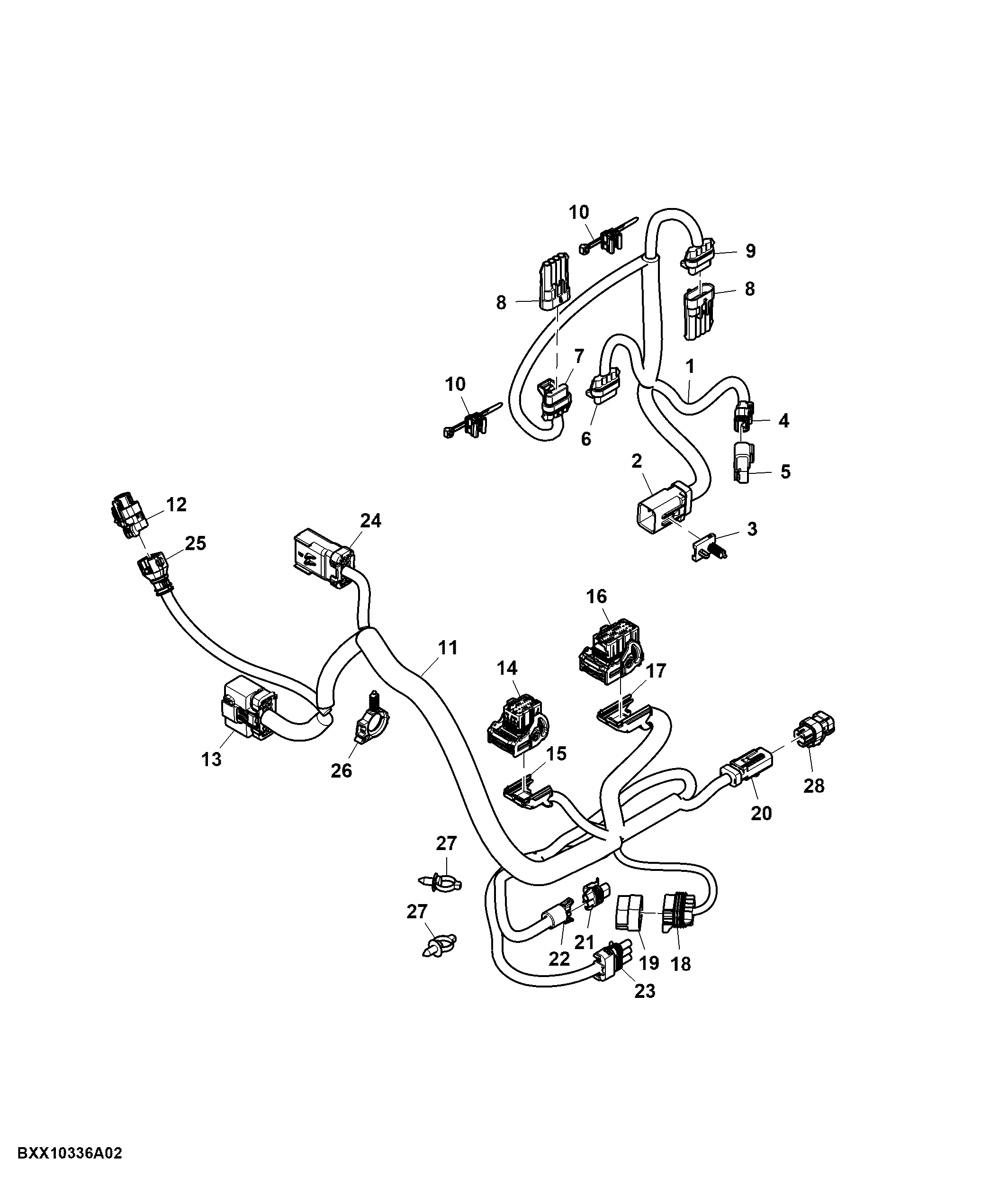

Wiring Harness, Selective Control Valve, Front Hitch Ready, W/ TLS™, Attachment
