Большое обновление пильных узлов

Смотреть

Открытый узел

Attachment, 1st and 2nd SCV, Non Front Hitch Ready, W/O TLS™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE340786	1	Valve Kit	-
2	AL231434	1	Valve Cover	SUB FOR AL206035
3	R543472	1	Cover	-
4	RE564666	1	Line	Load Sense
5	19M7785	7	Screw	M10 X 25
6	RE46687	4	Drain Plug	-
7	51M7045	4	O-Ring	19.300 X 2.200 mm
8	R312139	3	Bracket	-
9	RE341472	1	Manifold	-
10	R312262	3	Bracket	-
11	14M7273	3	Nut	M8
12	R537705	1	Bracket	-
13	R320488	3	Block Clamp	-
14	R542111	1	Cover	-
15	L173497	3	Stud	-
16	19M7783	2	Screw	M10 X 16
17	19M7800	6	Screw	M8 X 50
18	19M8705	6	Screw	M6 X 65
19	AL229870	2	Selective Control Valve	Selective Control Valve, W/ O stepper motor, SUB FOR AL213976
20	AL218230	2	Motor	-
21	R562325	1	Bracket	-
22	19M7863	4	Screw	M6 X 25
23	RE345177	1	Multi-Functional Controller	-
24	RE208005	1	Intake Valve	-
25	RE564203	1	Wiring Harness	-
26	RE564951	1	Chassis Wiring Harness	-
27	RE586787	1	Wiring Harness	-
28	RE345859	1	Valve	-
29	64M1017	2	Drain Plug	-
30	51M7041	3	O-Ring	11.300 X 2.200 mm
31	57M9796	1	Elec. Connector Housing	Interconnect, X710A
32	57M7840	1	Elec. Connector Housing	SCV XI / SCV XII, A712
32	57M7469	1	Electrical Connector Assy	-
32	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D
33	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D
33	57M7469	1	Electrical Connector Assy	-
33	57M7840	1	Elec. Connector Housing	Front Hitch / SCV XI, A711
34	57M7840	1	Elec. Connector Housing	SCV XII / SCV XIII, A713
34	57M7469	1	Electrical Connector Assy	-
34	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D
35	57M7533	1	Elec. Connector Housing	-
35	57M7621	2	Elec.Connect Locking Device	-
36	57M10517	1	Elec. Connector Housing	Front Hitch SA/DA Switch Valve, Y649
36	57M8022	1	Elec.Connect Locking Device	-
36	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
37	57M7839	2	Electrical Connector Assy	-
38	AH225364	5	Clip	-
39	RE258807	2	Tie Band	-
40	57M10300	1	Elec. Connector Housing	Chassis Harness, Midstack Circuit
40	RWA11136	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9
41	57M9772	1	Elec. Connector Housing	CAN Backbone from Chassis
41	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
42	57M10611	1	Elec. Connector Housing	Front Controller J1 Connector, A580
42	RWA11030	1	Repair Wire Assembly	Cavity A1, A2, A3, A4, B2, B3, B4, C4, D4, E3, E4, F2, F3, F4, A1, A2, B1, B2, B3, B4, C1, C2, C4, D1, D2, D3, D4, E1, E2, E3, E4, F1, F2, F3, G2, G3, H2, J2, J4, K2, K4
42	RWA10888	1	Repair Wire Assembly	Cavity G1, G3, G4, H1, L1, L2, L3, L4, M1, M2, M3, M4
43	57M10614	1	Elec. Connector Housing	Front Controller J2 Connector
43	57M10613	1	Elec. Connector Housing	-
43	RWA11030	1	Repair Wire Assembly	Cavity A1, A2, B1, B2, B3, B4, C1, C2, C4, D1, D2, D3, D4, E1, E2, E3, E4, F1, F2, F3, G2, G3, H2, J2, J4, K2, K4
43	RWA10888	1	Repair Wire Assembly	Cavity L1, L2, L3, L4, M1, M2, M3, M4
44	57M8907	1	Elec.Connect Locking Device	-
44	RWA11083	1	Repair Wire Assembly	Cavity J, H, G, F, E, D, A, B, C, K
44	57M7262	1	Elec. Connector Housing	Hitch Following, X117
45	57M9776	1	Elec. Connector Housing	CAN Terminator, A912
45	RWA11022	1	Repair Wire Assembly	Cavity 1, 2
46	57M8484	1	Elec. Connector Housing	Chassis Interconnect, X830A
46	57M9919	1	Elec. Connector Accessory	-
46	RWA10703	1	Repair Wire Assembly	Cavity A, B, C, D, E, F, G, H, J, K, L, M, N, P, R, S
47	57M9804	1	Elec. Connector Housing	TLS™ Interconnect, X840B
47	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9
48	57M9800	1	Elec. Connector Housing	-
49	57M9792	1	Elec. Connector Housing	Mid-Stack Interconnect, X710B
49	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7
50	R213663	3	Clamp	-
51	57M9940	3	Elec. Connector Accessory	-
52	T77613	3	O-Ring	-
53	38H5110	1	Tee Fitting	-
54	51M7048	1	O-Ring	29.600 X 2.900 mm
55	T76938	7	O-Ring	-
56	38H1209	1	Tee Fitting	-
57	L116274	1	Elec. Connector Accessory	-
58	38H5025	1	Elbow Fitting	-
59	64M1019	2	Drain Plug	-
60	51M7043	2	O-Ring	15.300 X 2.200 mm
61	38H5014	2	Adapter Fitting	-
62	51M7047	2	O-Ring	23.600 X 2.900 mm
63	57M9837	2	Elec. Connector Accessory	-
64	57M11134	1	Elec. Connector Housing	-
65	57M10604	1	Elec. Connector Housing	-
66	57M10613	1	Elec. Connector Housing	-
67	T77814	1	O-Ring	-
68	AL207509	1	Seal Kit	USE WITH AL206035
68	AL231108	1	Seal Kit	USE WITH AL231434
69	AL207508	1	Seal Kit	USE WITH AL206035

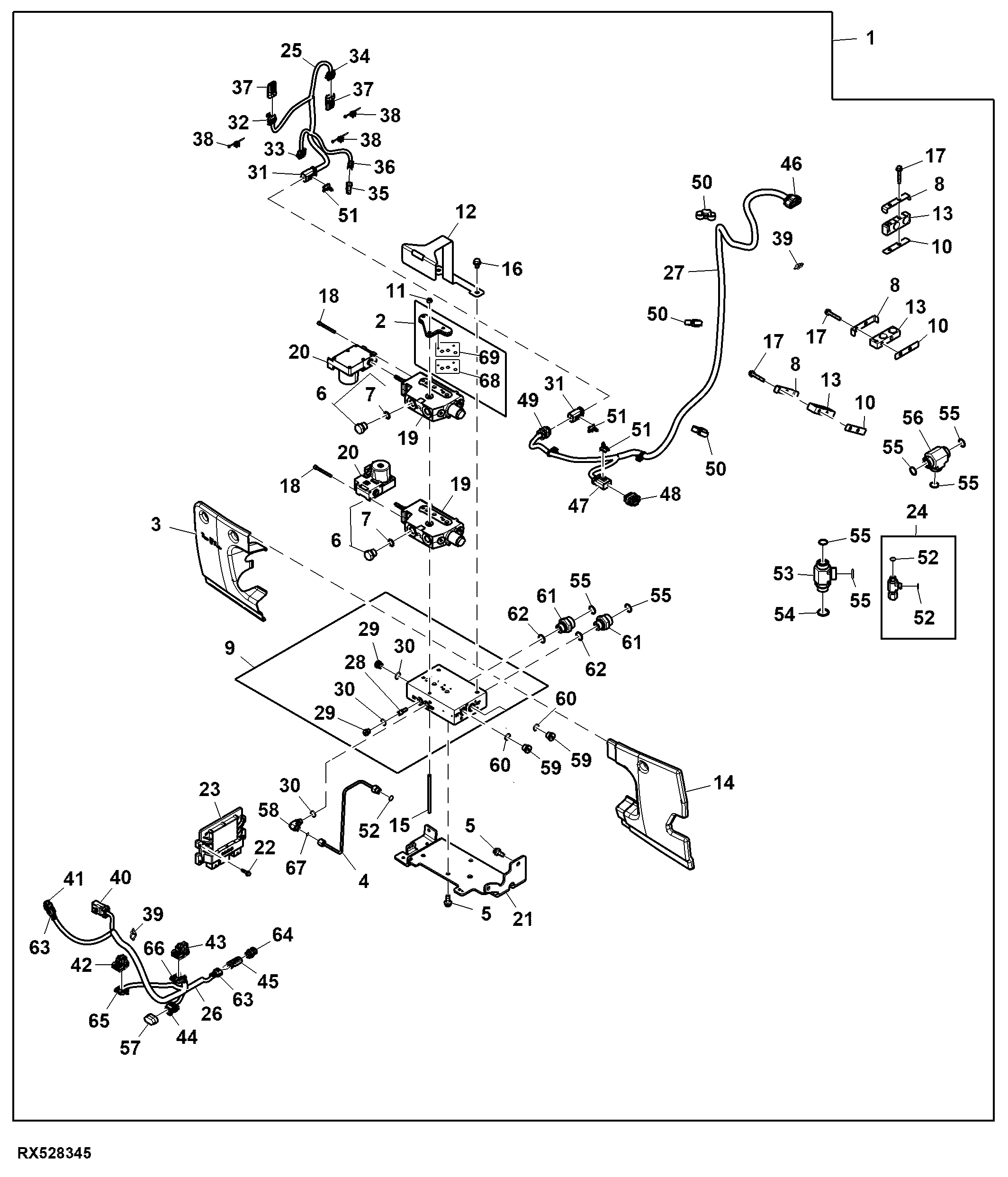

Attachment, 1st and 2nd SCV, Non Front Hitch Ready, W/O TLS™
