DEF Line and Pump, 6.8 L, FT4/ Stage 5 Engine

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	DZ117576	1	DEF Line	Suction, INCLUDES 57M9772
2	57M9772	2	Elec. Connector Housing	-
3	DZ117577	1	DEF Line	Suction Jumper, INCLUDES 57M9772 AND 57M9776
4	57M9776	1	Elec. Connector Housing	-
5	DZ117575	1	DEF Line	Back Flow, INCLUDES 57M9774
6	57M9774	1	Elec. Connector Housing	-
7	DZ117574	1	DEF Line	DEF Line, Pressure, INCLUDES 57M9773
8	57M9773	1	Elec. Connector Housing	-
9	H141706	4	Clamp	-
10	R251581	4	Clamp	-
11	19M7866	5	Screw	M8 X 20
12	DZ118548	1	Filter	DEF Inline Filter Assembly
12	DZ124402	1	Filter	SUB FOR DZ118548
13	57M9856	1	Clamp	-
14	R552345	2	Hose	DEF Doser
15	R232182	2	Clip	-
16	R184863	4	Hose Clamp	-
17	R202160	1	Clamp	-
18	T184924	2	Hose Clamp	-
19	19M8319	4	Screw	M8 X 50
20	H150983	2	Clamp	-
21	RE258807	8	Tie Band	-
22	19M8331	3	Screw	M8 X 20
23	TR106966	1	Plate	-
24	03M7295	3	Bolt	M8 X 90
25	14M7298	3	Flange Nut	M8
26	DZ119474	1	DEF Dosing Unit Pump	ORDER DZ121770; SUB FOR DZ111283
27	TA12595	1	Hose	DEF Vent and Filter
28	H216170	1	Fitting	-
29	TR108920	1	Hose	DEF Vent
30	H216169	1	Breather	-
31	TA13159	1	Line	Coolant Return
32	TR109706	1	Hose	Coolant Supply
33	TA13158	1	Line	Coolant Supply
34	TR109913	1	Bracket	-
35	TR109704	1	Hose	Inline Filter To Header
36	TR109705	1	Hose	DEF Tank Coolant From Inline Filter
37	RE549603	1	Adapter Fitting	-
38	RE549604	1	Adapter Fitting	-
39	RE549605	1	Adapter Fitting	-
40	RE555351	1	Cap	-
41	DZ114640	1	Filter Kit	DEF Supply Module Filter
42	DZ110513	1	Filter Kit	DEF Inline Service Kit
42	DZ124403	1	Filter Kit	SUB FOR DZ110513
43	Z81375	2	Block Clamp	-
44	51M7040	3	O-Ring	9.300 X 2.200 mm
45	M164585	1	Hose Clamp	-

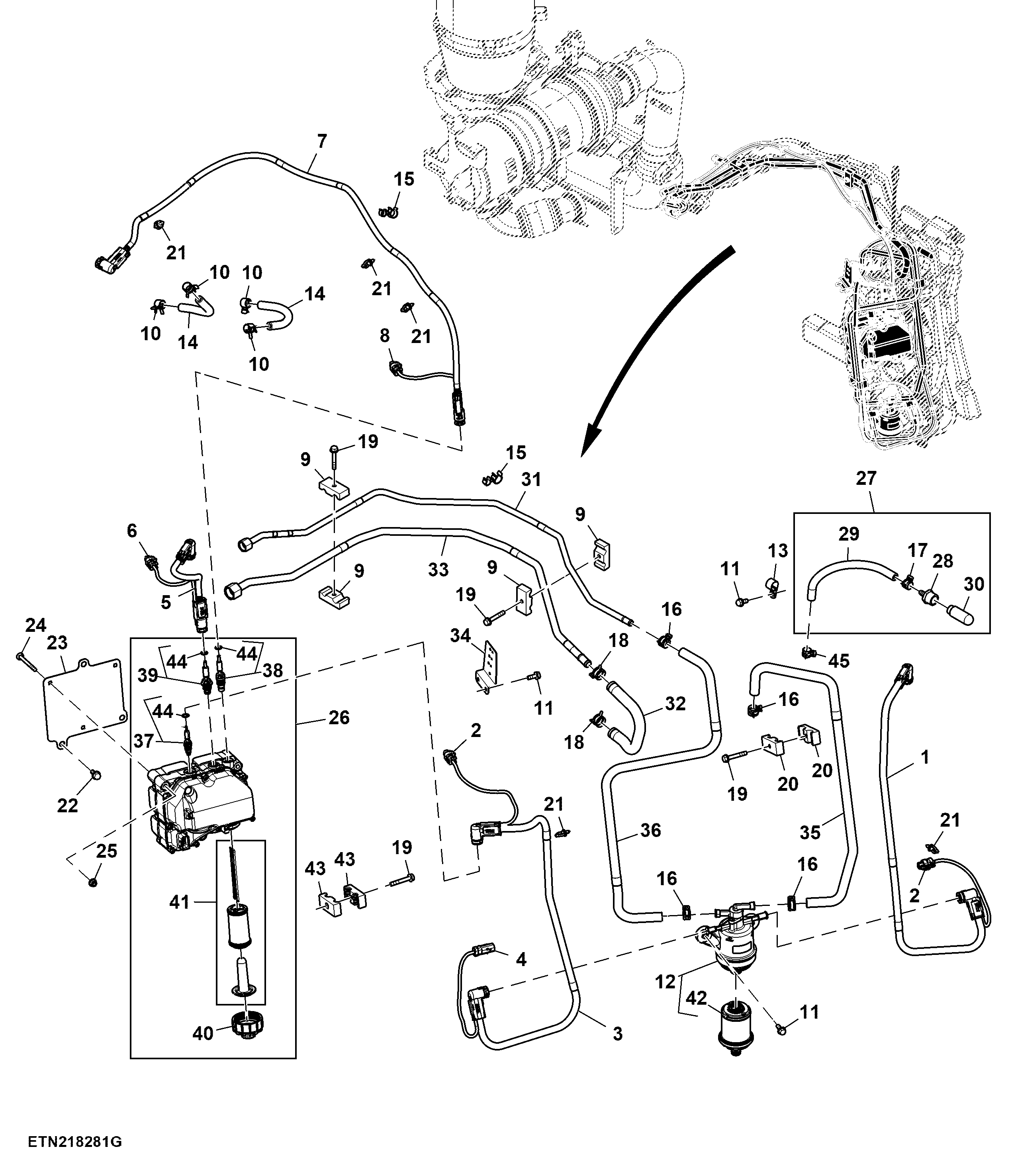

DEF Line and Pump, 6.8 L, FT4/ Stage 5 Engine

Нет текстового описания
