Wiring Harness, Front Controller, Mid-Stack, W/O Front Hitch, TLS™

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE564952	1	Chassis Wiring Harness	-
2	57M9772	1	Elec. Connector Housing	CAN Backbone from Chassis
2	RWA10634	1	Repair Wire Assembly	Cavity 2, 1
3	57M10300	1	Elec. Connector Housing	Chassis Harness, Midstack Circuit
3	RWA10626	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9
4	57M10297	1	Elec. Connector Housing	Chassis Harness TLS™ Circuit
4	RWA10607	1	Repair Wire Assembly	Cavity 10, 11, 12, 13, 14, 3, 4, 5, 6, 9
5	57M10611	1	Elec. Connector Housing	A580
5	57M10604	1	Elec. Connector Housing	-
5	RWA10888	1	Repair Wire Assembly	Cavity G1, G3, G4, H1, L1, L2, L3, L4, M1, M2, M3, M4
6	57M10613	1	Elec. Connector Housing	-
6	RWA10622	1	Repair Wire Assembly	Cavity A1, A2, B1, B2, B3, B4, C1, C2, C4, D1, D2, D3, D4, E1, E2, E3, E4, F1, F2, F3, G2, G3, H2, J2, J4, K2, K4
6	57M10614	1	Elec. Connector Housing	A580
7	57M7262	1	Elec. Connector Housing	X117
7	57M8907	1	Elec.Connect Locking Device	-
7	RWA10794	1	Repair Wire Assembly	Cavity A, B, C, D, E, F, G, H, J, K
8	57M9776	1	Elec. Connector Housing	A912
9	57M7254	1	Elec. Connector Housing	Y516
9	57M7289	1	Elec.Connect Locking Device	-
9	RWA10794	1	Repair Wire Assembly	Cavity A, B
10	RE12364	1	Electrical Connector Assy	B301
10	RWA10867	1	Repair Wire Assembly	Cavity A, B, C
11	RE258807	4	Tie Band	-

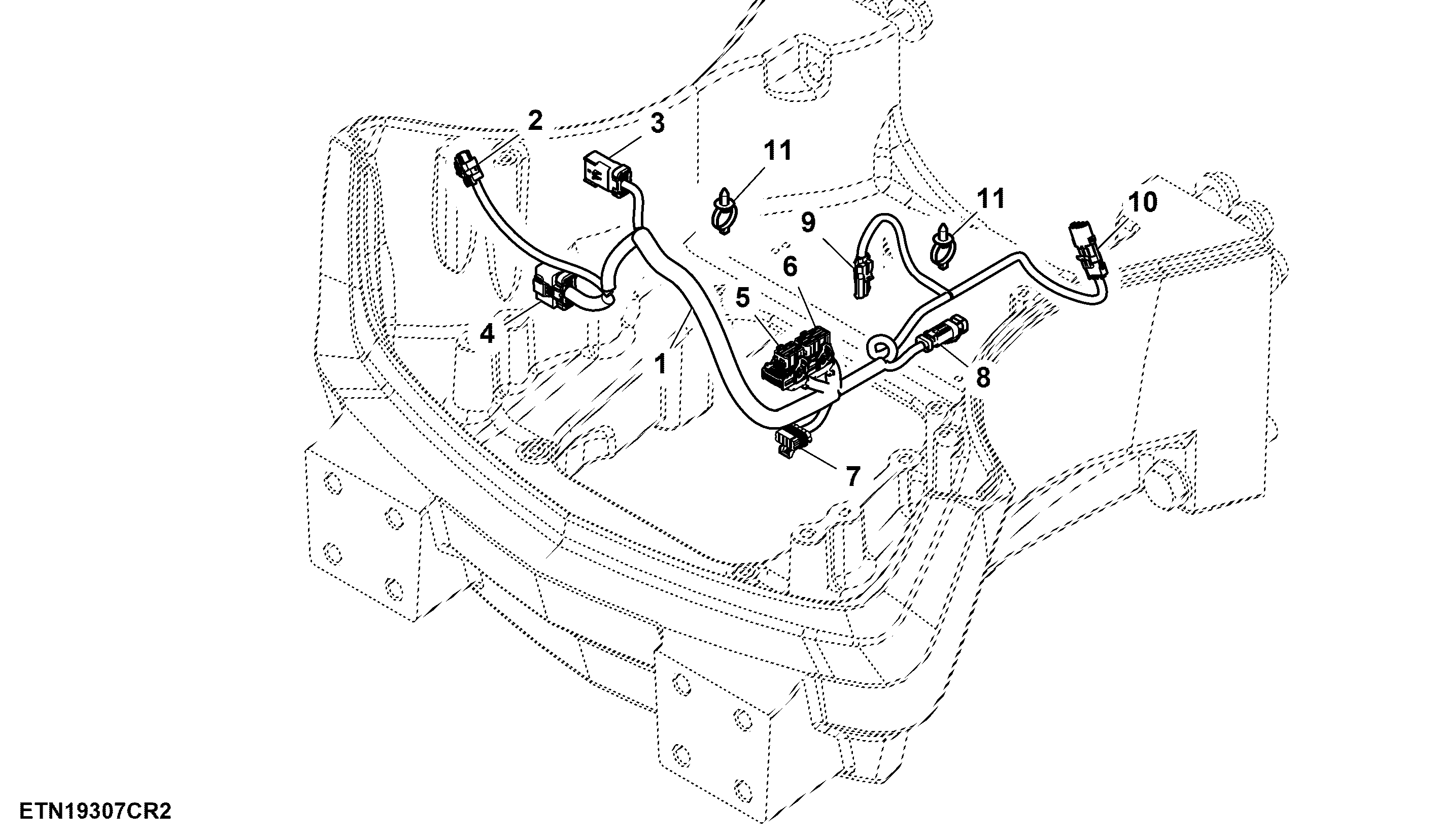

Wiring Harness, Front Controller, Mid-Stack, W/O Front Hitch, TLS™

Нет текстового описания
