Cooling System, W/O Baffle, T2/ FT4/ Stage 5 Engine

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7814	4	Screw	M12 X 50
2	14M7299	2	Flange Nut	M12
3	19M7866	12	Screw	M8 X 20
4	TR111722	1	Bracket	ORDER RE596721
4	TA20141	1	Bracket	SUB FOR RE596721
5	19M7775	2	Screw	M6 X 16
6	R540040	2	Support	-
7	RE588085	1	Plate	-
8	RE594399	1	Aftercooler	-
9	24H1822	10	Washer	11/32" X 7/8" X 1/16"
10	R563583	1	Isolator	Cold Side
11	R565211	4	Bushing	-
12	RE589157	1	Fitting	-
13	R563585	1	Isolator	Front
14	R566165	1	Isolator	Hot Side
15	19M7867	12	Screw	M8 X 25
16	RE579843	1	Radiator Reservoir	-
17	AL201300	1	Level Switch	Coolant Level Switch
18	RE312969	1	Filler Cap	-
19	R555209	1	Support	-
20	RE560268	1	Bracket	-
21	19M7865	17	Screw	M8 X 16
22	19M8291	4	Screw	M8 X 35
23	R563584	2	Isolator	-
24	R565007	3	Isolator	-
25	RE592537	1	Plate	-
26	RE592536	1	Module	INCLUDES (4) AT460623, (4) 24H1822
27	14M7518	1	Flange Nut	M10
28	24M7296	2	Washer	10.500 X 30 X 2.500 mm
29	R112772	1	Screw	-
30	R252362	2	Rivet	Bottom
31	R563561	1	Isolator	Top
32	R563568	1	Isolator	-
33	R564997	2	Bumper	-
34	R569615	1	Brace	-
35	R569759	1	Pivot	-
36	R570110	2	Seal	-
37	RE588070	1	Radiator	-
38	RE588072	1	Vapor Condenser	-
39	TA16059	1	Channel	Radiator, RH
40	RE588075	1	Support	-
41	AT460623	10	Isolator	-
42	RE588090	1	Fuel Cooler	-
43	RE589170	1	Latch	-
44	RE594343	1	Channel	Radiator, LH
45	RE594344	1	Channel	-
46	RE594345	1	Channel	-
47	19M7881	4	Screw	M8 X 20
48	24M7298	4	Washer	8.400 X 25 X 2 mm
49	19M8327	2	Screw	M8 X 25, USE WITH RE596721
49	19M7866	2	Screw	M8 X 20, USE WITH TR111722
50	M84971	4	Nut	-
51	RE590524	1	Adapter Fitting	-
52	RE589160	1	Drain Valve	-
53	28H3429	1	Washer	0.423" X 0.675" X 3/8", USE WITH TR111722

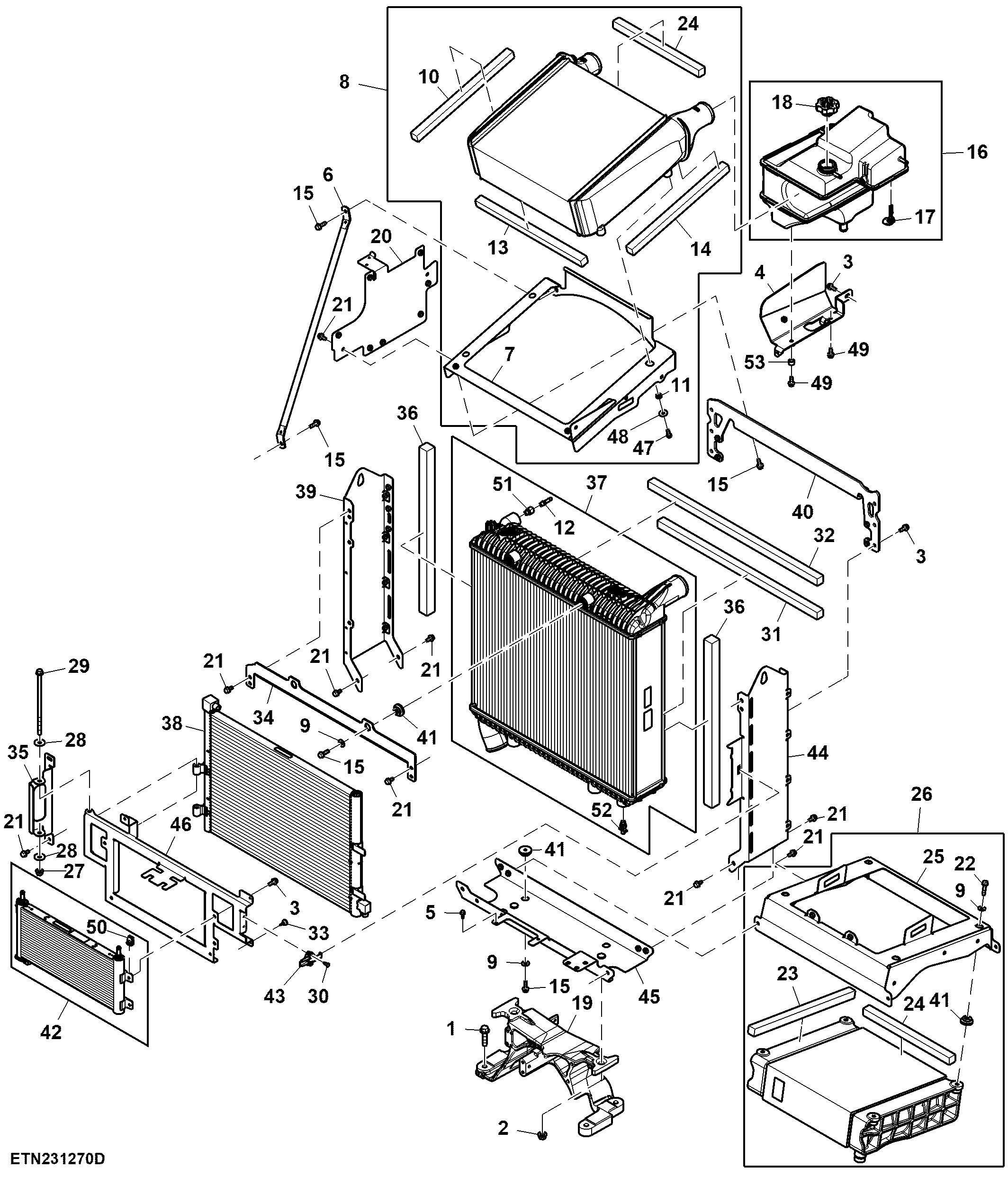

Cooling System, W/O Baffle, T2/ FT4/ Stage 5 Engine
