Открытый узел

Steering Arm and Knuckle, W/ Brakes, MFWD

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7489	8	Cap Screw	M16 X 45
2	JD7759	2	Lubrication Fitting	RH
2	JD7759	1	Lubrication Fitting	LH
3	RE280394	1	Kingpin	RH ORDER R277620 AND RE284283; SUB FOR RE234796
3	RE287740	1	Kingpin	RH MARKED R287736
3	RE280390	1	Kingpin	LH ORDER R277619 AND RE284283; SUB FOR RE260438
3	RE287745	1	Kingpin	LH MARKED R287737
4	AR94761	1	Bearing Cone	Bottom USE WITH R131810
4	JD8968	1	Bearing Cone	Top USE WITH R287736 AND R287737
4	RE284283	1	Tapered Roller Bearing	Top USE WITH R277620 AND R277619
5	R155627	1	Knuckle	(Standard) (Heavy Duty) RH
5	R155628	1	Knuckle	(Standard) (Heavy Duty) LH
5	R198809	1	Knuckle	(Heavy Duty W/ Brakes) RH
5	R198810	1	Knuckle	(Heavy Duty W/ Brakes) LH
5	AT107509	2	Plug	(Not Illustrated) USE WITH R198810 OR R198809
6	RE154869	1	Seal	-
7	R131673	1	Shim	TK = 0.13 mm
7	R131675	1	Shim	TK = 0.25 mm
7	R131676	1	Shim	TK = 1.00 mm
7	R131985	1	Shim	TK = 0.08 mm
8	R131810	1	Kingpin	Bottom
9	RE67161	1	Kingpin	ORDER R131810 AND AR94761
10	14M7277	1	Nut	M20
11	R133288	1	Bolt	-
12	40M7302	1	Snap Ring	-
13	JD9346	1	Ball Bearing	-
14	40M1873	1	Snap Ring	-
15	RE65591	1	Seal	-
16	RE65592	1	Seal	ORDER RE193099
17	RE250838	1	Universal Joint With Shaft	(Heavy Duty) ALSO ORDER R250848 AND 40M7302
17	RE250840	1	Universal Joint With Shaft	(Heavy Duty W/ Brakes) ALSO ORDER R250848 AND 40M7302
17	RE250834	1	Universal Joint With Shaft	(Standard) ALSO ORDER R250848 AND 40M7302
18	RE65621	2	Cross And Bearing Assembly	(Heavy Duty) (Heavy Duty W/ Brakes)
18	RE65620	2	Cross And Bearing Assembly	(Standard)
19	58M5578	4	Lubrication Fitting	-
20	15M7033	4	Pipe Plug	-
21	R250848	1	Washer	-
23	R181104	1	Yoke With Shaft	(Heavy Duty W/ Brakes)
23	R153307	1	Universal Joint With Shaft	(Heavy Duty)
23	R153305	1	Universal Joint With Shaft	(Standard)
24	R157679	1	Oil Slinger	ORDER RE193099
25	19M7598	2	Cap Screw	M4 X 10
26	R231203	1	Plug	USE WITH RE260438
27	30M7020	1	Plug	-
28	51M7097	1	O-Ring	18 X 2.500 mm
29	R277620	1	Kingpin	RH
29	R287738	1	Kingpin	RH MARKED R287736
29	R277619	1	Kingpin	LH
29	R287739	1	Kingpin	LH MARKED R287737
30	RE577392	1	Seal	ORDER RE588241; SUB FOR RE185799
30	RE588241	1	Seal	-
31	R259666	1	Plate	-
32	R231299	1	Seal	LH
33	RE193099	1	Seal	-
22A	RE250836	1	Universal Joint Yoke	(Standard) ALSO ORDER R250848 AND 40M7302
22B	R250839	1	Universal Joint Yoke	(Heavy Duty) ALSO ORDER R250848 AND 40M7302
22C	R250841	1	Universal Joint Yoke	(Heavy Duty W/ Brakes) ALSO ORDER R250848 AND 40M7302

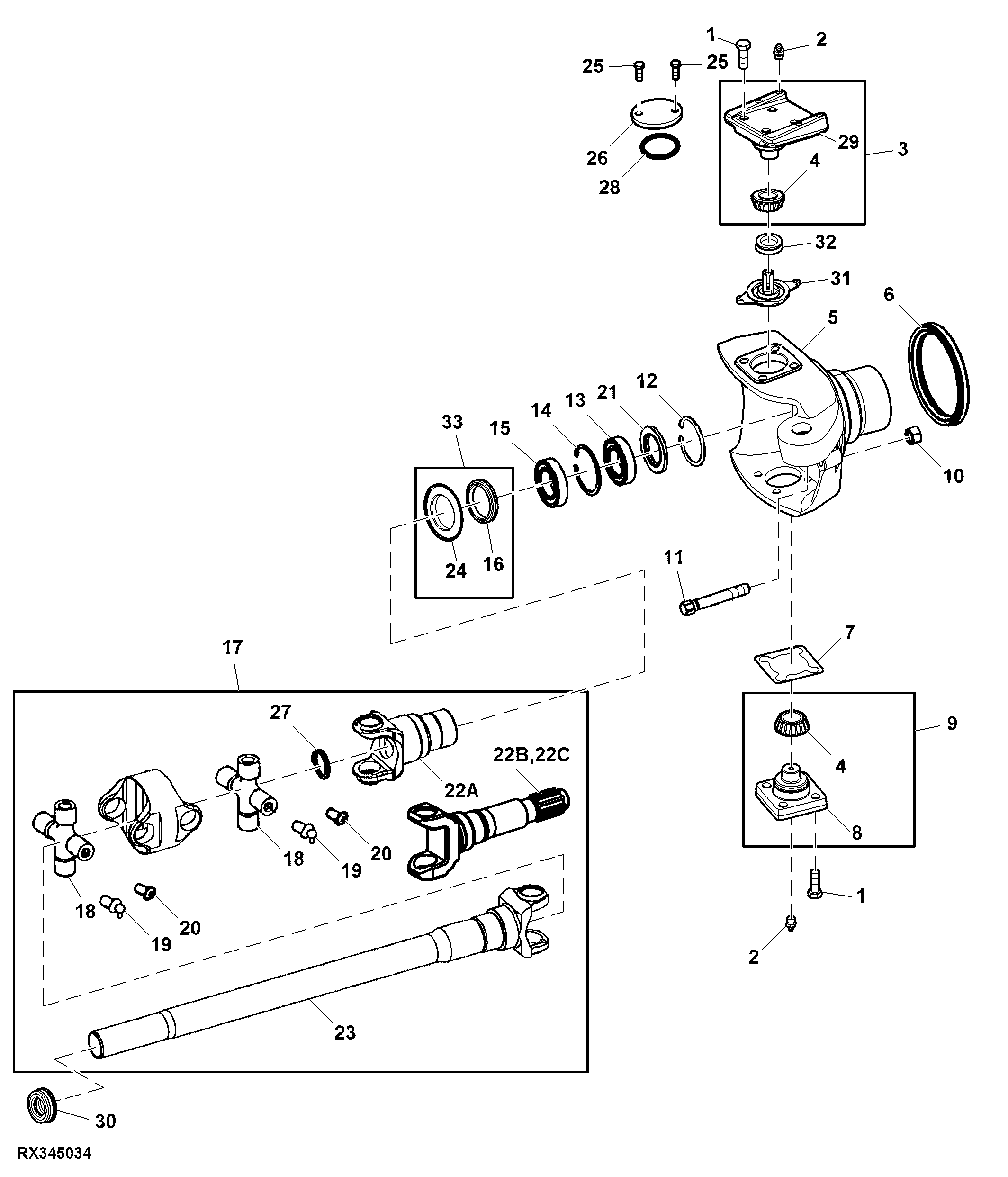

Steering Arm and Knuckle, W/ Brakes, MFWD
