Открытый узел

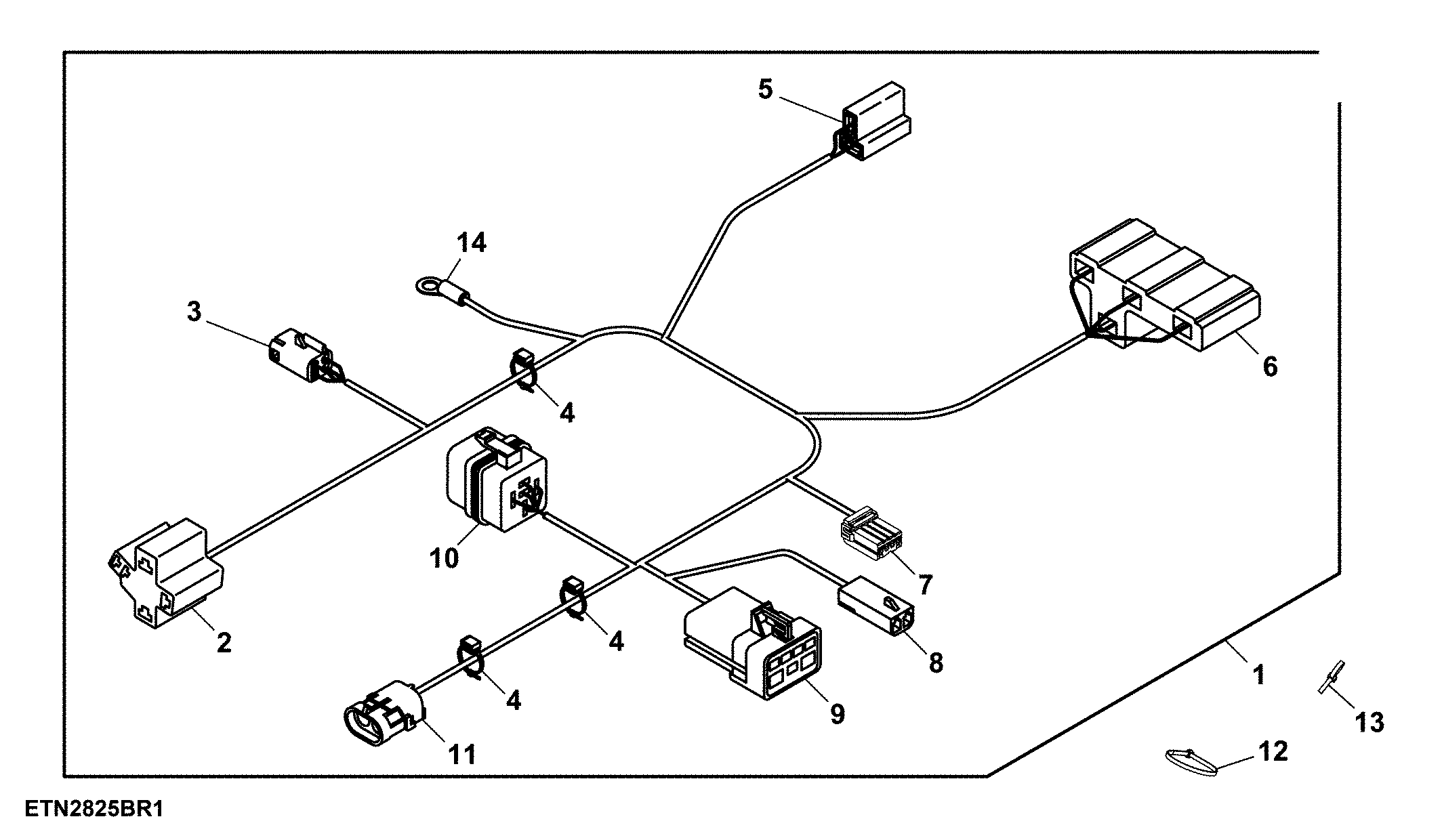

Wiring Harness, Manual Air Conditioning

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE313207	1	Wiring Harness	-
2	RE46734	1	Electrical Connector Assy	Blower Switch S210
2	Z70804	2	Elec. Connector Terminal	Cavity B, 3
2	57M7429	2	Elec. Connector Terminal	Cavity 1, 2
3	57M7789	1	Elec. Connector Housing	A/C On/Off Switch S211
3	57M7724	1	Electrical Connector Assy	-
3	57M7501	4	Elec. Connector Terminal	Cavity A, B, C, D
4	57M9229	5	Clip	-
5	R77476	1	Electrical Connector Assy	Blower Motor M210
5	57M7498	2	Elec. Connector Terminal	Cavity A, B
6	57M8310	2	Elec. Connector Terminal	Cavity 2, 3
6	57M9200	2	Elec. Connector Terminal	Cavity 1, 4
6	57M7457	1	Elec. Connector Housing	Dropping Resistor Network R210
7	57M10452	1	Elec. Connector Housing	A/C De-Icing Switch S212
7	57M8702	3	Elec. Connector Terminal	Cavity 1, 2, 4
8	57M7784	1	Electrical Connector Assy	Backlighting
8	57M7723	1	Electrical Connector Assy	-
9	57M7699	1	Elec. Connector Terminal	-
9	57M9563	1	Elec. Connector Cable Seal	Cavity G
9	57M7575	1	Elec. Connector Terminal	Cavity E
9	57M9215	3	Elec. Connector Seal	Cavity C, D, F
9	57M7258	1	Elec. Connector Seal	Cavity B
9	57M7583	1	Elec. Connector Terminal	Cavity G
9	57M7582	1	Elec. Connector Terminal	Cavity E
9	57M7252	3	Elec. Connector Terminal	Cavity B, C, D, F
9	57M7697	1	Electrical Connector Assy	Cab Harness X210
10	RE240999	1	Relay	KX1 KA1
10	M75140	1	Clip	-
10	Z70804	1	Elec. Connector Terminal	Cavity 87A
11	57M7328	1	Elec. Connector Housing	A/C High / Low Switch S213
11	57M7289	1	Elec.Connect Locking Device	-
11	R104846	2	Elec. Connector Terminal	Cavity A, B
11	57M9215	2	Elec. Connector Seal	Cavity A, B
12	R105388	1	Tie Band	-
13	R44302	1	Tie Band	-
14	57M8865	1	Elec. Connector Terminal	Cab Ground Stud W5

Wiring Harness, Manual Air Conditioning

Нет текстового описания
