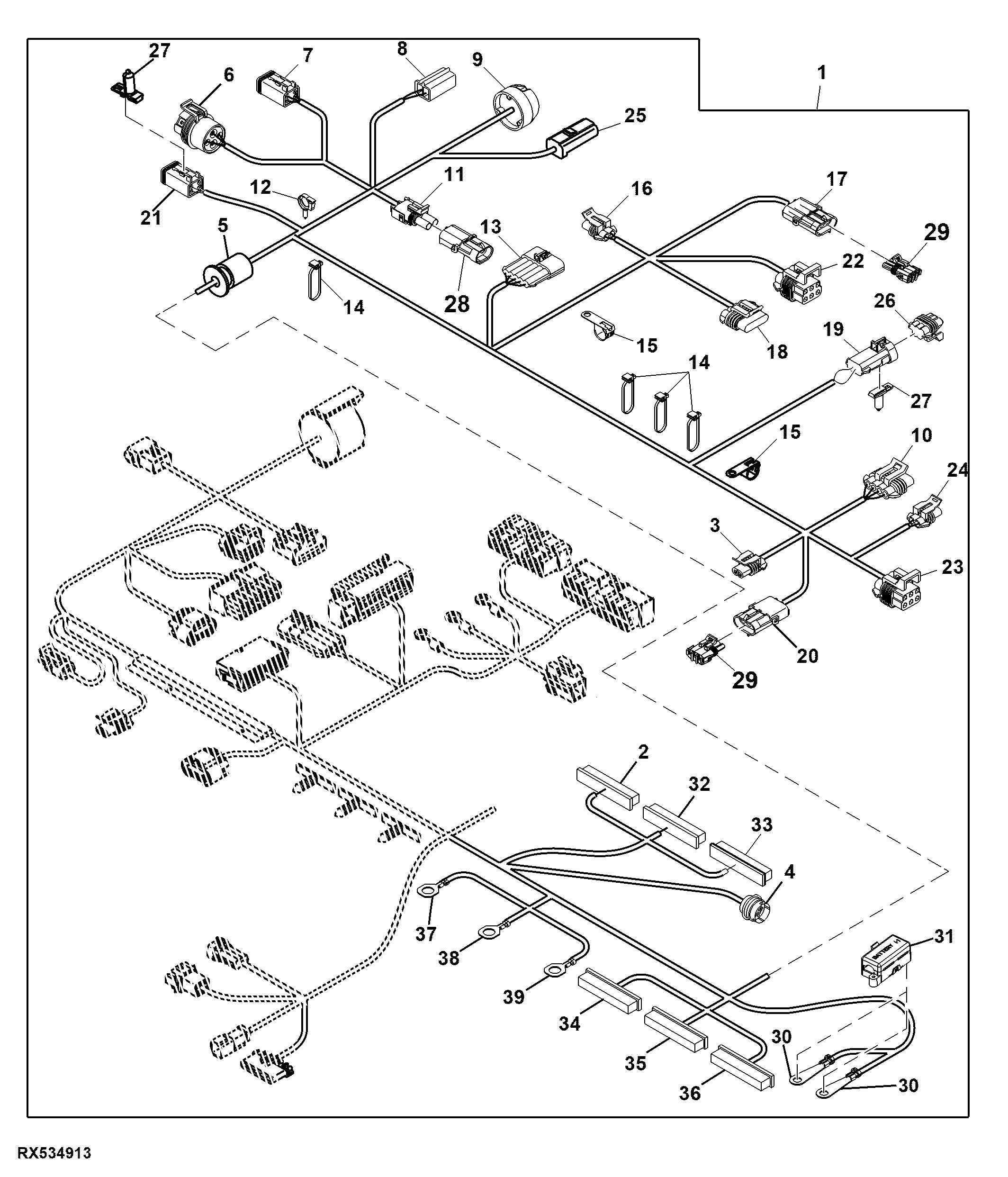

Cab Wiring Harness Connectors (2/3) (EV) (PQT) (40-50K)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE294966	1	Cab Wiring Harness	-
2	57M8847	1	Elec. Connector Housing	Splice Pack 1 X050A
2	57M9186	1	Elec. Connector Terminal	Cavity D
2	57M7590	3	Elec. Connector Terminal	Cavity E, F, G
2	R104921	2	Elec. Connector Terminal	Cavity B, C
2	57M8849	1	Electrical Connector Cap	-
2	57M9203	1	Elec. Connector Terminal	Cavity A
2	57M8848	1	Elec.Connect Locking Device	-
3	57M7254	1	Elec. Connector Housing	Left Rear Fender Flood E183
3	57M7289	1	Elec.Connect Locking Device	-
3	R104846	2	Elec. Connector Terminal	Cavity A, B
3	57M9215	1	Elec. Connector Seal	Cavity A
3	57M7258	1	Elec. Connector Seal	Cavity B
4	N282068	2	Elec. Connector Terminal	Cavity 16, 19
4	57M9225	2	Elec. Connector Terminal	Cavity 23, 24
4	57M8260	3	Elec. Connector Terminal	Cavity 2, 3, 4
4	N282069	8	Elec. Connector Terminal	Cavity 5, 7, 9, 10, 11, 13, 15, 25
4	57M8429	4	Elec. Connector Terminal	Cavity 18, 20, 27, 29
4	57M8164	3	Elec. Connector Terminal	Cavity 14, 22, 28
4	57M8616	1	Elec. Connector Housing	Chassis Harness X100
5	R112653	1	Grommet	-
6	RE210023	1	Electrical Connector Assy	Implement CAN Data Connector X921
6	57M7614	2	Elec. Connector Terminal	Cavity 1, 3
6	R78067	2	Elec. Connector Terminal	Cavity 2, 4
7	57M8015	1	Electrical Connector Assy	Implement CAN X913
7	57M8016	1	Elec.Connect Locking Device	-
7	57M8165	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
8	R77477	1	Electrical Connector Assy	License Plate Lamp X111
8	57M8810	2	Elec. Connector Terminal	Cavity A, B
9	AR75695	1	Socket Outlet	7 Pin Dome Elect. Conn. (SUB FOR L83677); X160
10	57M9215	2	Elec. Connector Seal	Cavity A, C
10	57M7258	2	Elec. Connector Seal	Cavity B, D
10	57M7469	1	Electrical Connector Assy	-
10	57M8416	1	Elec. Connector Housing	Left Tail Lamp X107
10	R104846	4	Elec. Connector Terminal	Cavity A, B, C, D
11	RE12363	1	Electrical Connector Assy	Hitch Down Switch
11	57M9219	2	Elec. Connector Seal	Cavity A, B
12	57M8908	1	Clip	-
13	57M7286	1	Elec. Connector Terminal	Cavity A
13	57M9219	4	Elec. Connector Seal	Cavity B, C, D, E
13	57M7285	4	Elec. Connector Terminal	Cavity B, C, D, E
13	57M9216	1	Elec. Connector Seal	Cavity A
13	57M7300	1	Elec. Connector Accessory	-
13	57M8274	1	Elec. Connector Housing	Chassis Harness X807
14	57M9229	4	Clip	-
15	57M8824	2	Elec. Connector Accessory	-
16	57M7289	1	Elec.Connect Locking Device	-
16	57M9215	1	Elec. Connector Seal	Cavity A
16	57M7258	1	Elec. Connector Seal	Cavity B
16	R104846	2	Elec. Connector Terminal	Cavity A, B
16	57M7254	1	Elec. Connector Housing	Right Rear Fender Flood E186
17	R78054	1	Electrical Connector Assy	Right Extremity Light X135
17	R78061	3	Elec. Connector Terminal	Cavity A, B, C
17	57M9218	3	Elec. Connector Seal	Cavity A, B, C
18	57M8416	1	Elec. Connector Housing	Right Tail Lamp X106
18	57M7469	1	Electrical Connector Assy	-
18	R104846	2	Elec. Connector Terminal	Cavity A, B, C, D
18	57M7258	1	Elec. Connector Seal	Cavity D
18	57M9215	1	Elec. Connector Seal	Cavity A, B, C
19	57M7258	1	Elec. Connector Seal	Cavity E
19	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
19	57M7252	5	Elec. Connector Terminal	Cavity A, B, C, D, E
19	57M8630	1	Elec. Connector Housing	Front PTO Harness X703
19	57M9194	1	Elec.Connect Locking Device	-
20	57M9219	1	Elec. Connector Seal	Cavity A
20	R78061	2	Elec. Connector Terminal	Cavity B, C
20	57M9218	2	Elec. Connector Seal	Cavity B, C
20	R78054	1	Electrical Connector Assy	Left Extremity Light X134
21	57M7803	1	Elec. Connector Housing	Manual PQT Option X812
21	57M8907	1	Elec.Connect Locking Device	-
21	57M7252	9	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G, H, J
21	57M9215	9	Elec. Connector Seal	Cavity A, B, C, D, E, F, G, H, J
22	57M7260	1	Elec. Connector Housing	Right Hitch Up / Down Connector
22	57M7291	1	Electrical Connector Assy	-
22	R104846	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
22	57M9215	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
23	R104846	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
23	57M9215	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
23	57M7291	1	Electrical Connector Assy	-
23	57M7260	1	Elec. Connector Housing	Left Hitch Up / Down Switch
24	57M7687	1	Elec. Connector Housing	Rear Remote PTO Switch S574
24	57M7317	1	Elec. Connector Accessory	-
24	R104846	3	Elec. Connector Terminal	Cavity A, B, C
24	57M9215	3	Elec. Connector Seal	Cavity A, B, C
25	57M8815	1	Elec. Connector Housing	Implement Flood
25	57M9461	1	Elec. Connector Terminal	Cavity 1
26	57M9204	1	Elec. Connector Housing	Dust Cap
26	57M9194	1	Elec.Connect Locking Device	-
27	57M8910	2	Clip	-
28	R78053	1	Electrical Connector Assy	Dust Cap
29	RE12364	2	Electrical Connector Assy	Dust Cap
30	57M9197	2	Elec. Connector Terminal	Battery Power
31	RE48875	1	Junction Block	-
32	57M8848	1	Elec.Connect Locking Device	-
32	57M8849	1	Electrical Connector Cap	-
32	R104921	4	Elec. Connector Terminal	Cavity B, C, D, E
32	57M7590	1	Elec. Connector Terminal	Cavity G
32	57M7589	1	Elec. Connector Terminal	Cavity A
32	57M8847	1	Elec. Connector Housing	Splice Pack 2 X010R
33	57M8847	1	Elec. Connector Housing	Splice Pack 3 X050B
33	57M8848	1	Elec.Connect Locking Device	-
33	57M8849	1	Electrical Connector Cap	-
33	57M9203	1	Elec. Connector Terminal	Cavity A
33	R104921	3	Elec. Connector Terminal	Cavity C, D, E
33	57M7590	3	Elec. Connector Terminal	Cavity B, F, G
34	R104921	4	Elec. Connector Terminal	Cavity A, B, C, F
34	57M9186	1	Elec. Connector Terminal	Cavity D
34	57M8849	1	Electrical Connector Cap	-
34	57M8848	1	Elec.Connect Locking Device	-
34	57M8847	1	Elec. Connector Housing	Splice Pack 4 X172
35	57M8847	1	Elec. Connector Housing	Splice Pack 5 X953
35	57M8848	1	Elec.Connect Locking Device	-
35	57M8849	1	Electrical Connector Cap	-
35	57M9186	5	Elec. Connector Terminal	Cavity A, B, E, F, G
35	R104921	2	Elec. Connector Terminal	Cavity C, D
36	57M8847	1	Elec. Connector Housing	Splice Pack 6 X951
36	57M8848	1	Elec.Connect Locking Device	-
36	57M8849	1	Electrical Connector Cap	-
36	57M9186	5	Elec. Connector Terminal	Cavity A, B, E, F, G
36	R104921	2	Elec. Connector Terminal	Cavity C, D
37	57M9195	1	Elec. Connector Terminal	Ground
38	57M9195	1	Elec. Connector Terminal	Back Lighting Ground
39	57M9195	1	Elec. Connector Terminal	IMP Connector Ground
