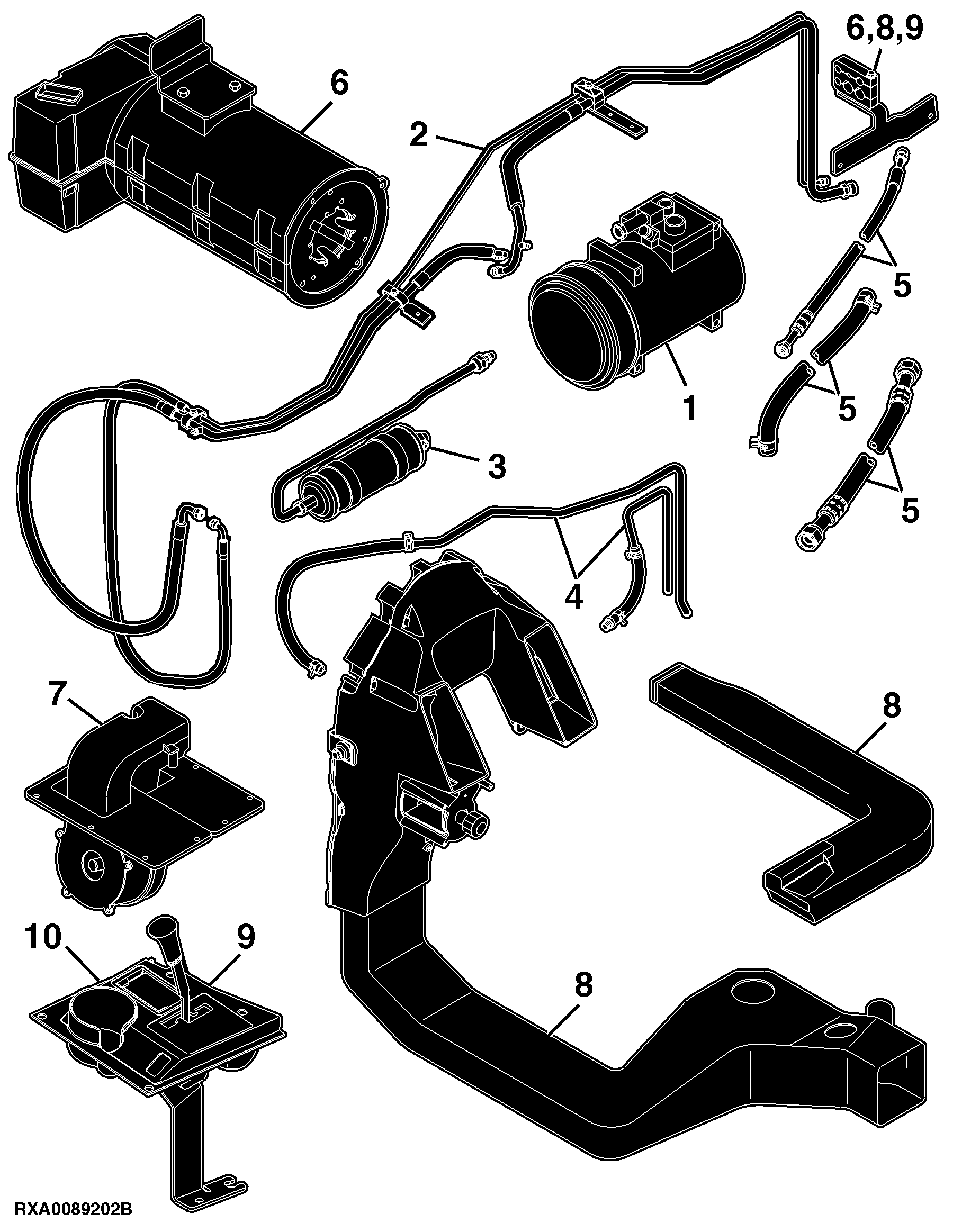

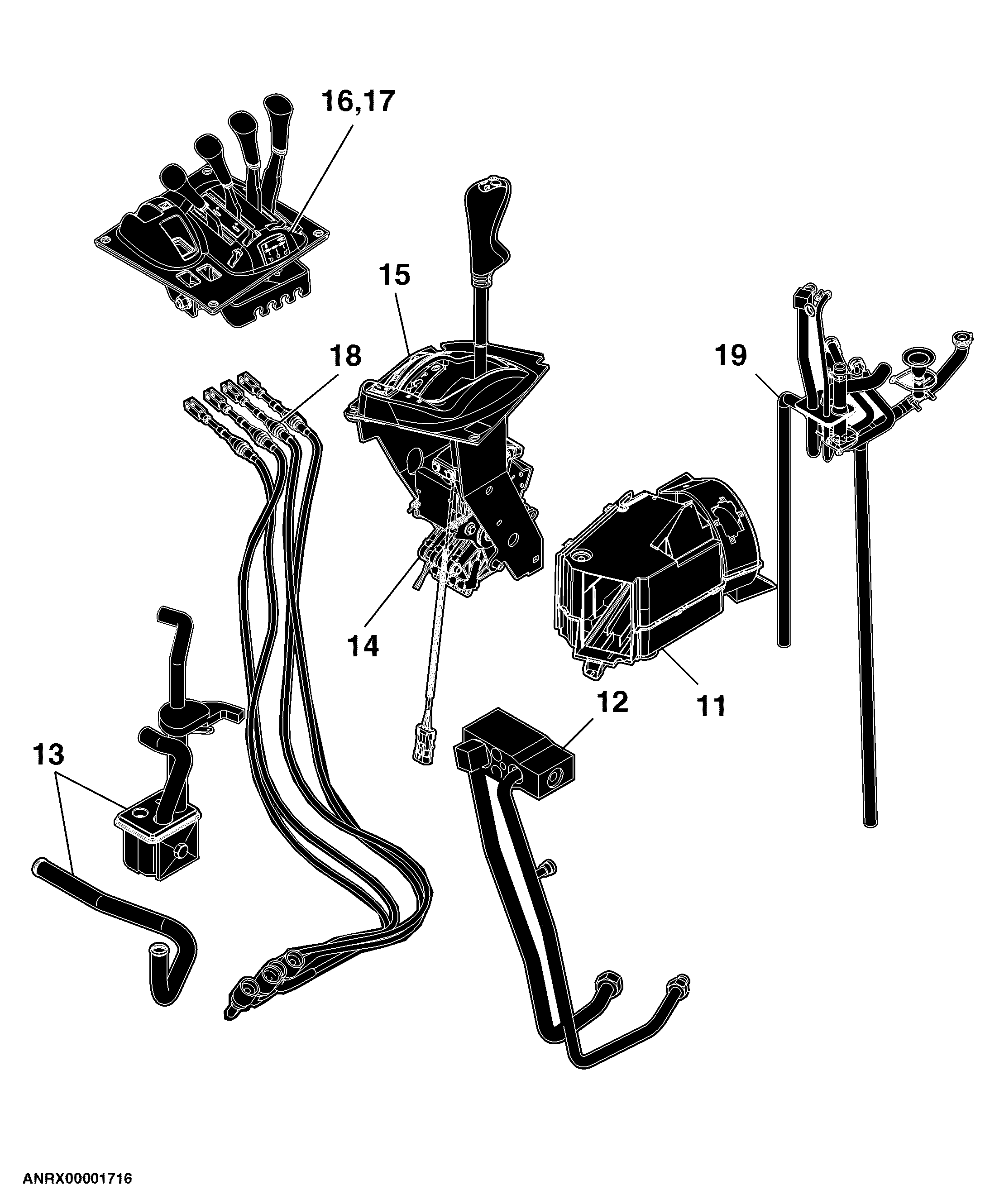

90 Operator's Station Accessories 7930 Russian Version

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Intake, Air Filter Assembly	-
-	-	1	Shifter, 5 Range, APQ (1/1)	-
-	-	1	Shifter, 5 Range, APQ	-
-	-	1	Selective Control Levers and Linkage, 3 SCV	-
-	-	1	Selective Control Levers and Linkage (4 SCV)	-
-	-	1	SELECTIVE CONTROL LEVERS AND LINKAGE (3SCV)	-
-	-	1	Refrigerator Lines, HVAC Inside Cab	-
-	-	1	Refrigerant Lines / Expansion Valve	-
-	-	1	Refrigerant Lines	-
-	-	1	PTO Shifters, W / O IVT™	-
-	-	1	Panel, Rear Cab	-
-	-	1	Module, HVAC, Manual Tractor	-
-	-	1	A/C Receiver Dryer and Mounting Parts	-
-	-	1	Heater Hoses, Rear	-
-	-	1	HEATER HOSES (FRONT)	-
-	-	1	Fresh Air Filter Housing	-
-	-	1	Cowl, Louvers, Manual HVAC Control	-
-	-	1	COVER PLATE (W/OUT PTO SHIFTERS)	-
-	-	1	Cable, Selective Control Valve	-
-	-	1	Blower / Pressurizer	-
-	-	1	AIR CONDITIONING COMPRESSOR	-
-	-	1	Air Circulation Ducts	-
-	-	1	A/C, Line Bundle	-

90 Operator's Station Accessories 7930 Russian Version

Нет текстового описания
