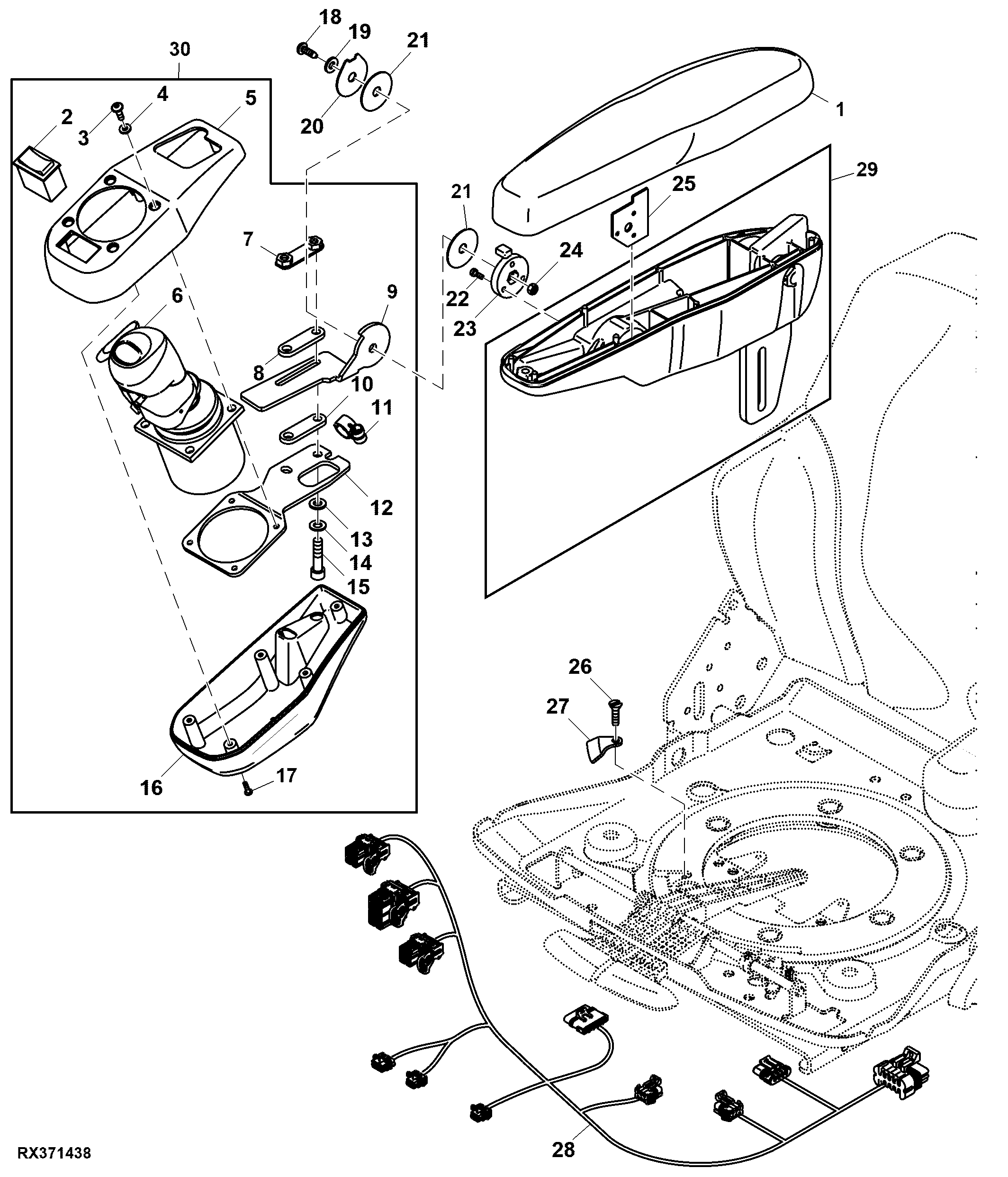

Joystick Control Lever, W/ Power Quad™/ Auto Quad™ (For North America)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT350318	1	Pad	USE WITH RE276665 OR RE276666; SUB FOR AT315716
1	AT350317	1	Armrest	USE WITH RE276665 OR RE276666; SUB FOR AT315715
2	AL113865	1	Toggle/Rocker Switch	-
3	19M8831	4	Screw	M5 X 16
4	L113119	4	Washer	-
5	L112752	1	Housing	-
6	PG200556	1	Multi-Functional Controller	NEW PART
6	PG200562	1	Multi-Func Controller Reman	REMAN FOR RE285427 OR RE285429
6	RE285427	1	Control Lever	(W/O Autoshift Button) ORDER PG200556 OR PG200562
6	PG200561	1	Multi-Func Controller Reman	REMAN FOR RE278354
6	PG200555	1	Multi-Functional Controller	NEW PART
6	RE278354	1	Control Lever	(W/ Autoshift Button) ORDER PG200555 OR PG200561
7	AL115998	1	Strap	-
8	L113340	3	Strap	-
9	R273649	1	Bracket	-
10	L113340	1	Strap	-
11	L113570	1	Clamp	-
12	L174189	1	Reinforcement	-
13	24M7055	2	Washer	8.400 X 16 X 1.600 mm
14	12M7111	2	Disk Spring	8.200 X 16 X 0.900 mm
15	19M8968	2	Screw	M8 X 35
16	L112885	1	Housing	-
17	37M7286	5	Screw	-
18	L114190	1	Screw	-
19	L41824	2	Disk Spring	-
20	L174557	1	Washer	-
21	R74379	2	Washer	-
22	37M7071	3	Screw	-
23	R273644	1	Adapter	-
24	14M7151	1	Nut	M8
25	R273650	1	Plate	-
26	37M7192	1	Screw	-
27	R245184	1	Stop	-
28	RE310889	1	Wiring Harness	SUB FOR RE236952
29	RE268429	1	Armrest Kit	USE WITH RE276665 OR RE276666
30	RE285429	1	Control Lever	ORDER PG200556 OR PG200562
..	RE276666	1	Field Installation Kit	(ALSO ORDER RE268429) (ALSO ORDER AT350318 OR AT350317)

Joystick Control Lever, W/ Power Quad™/ Auto Quad™ (For North America)
