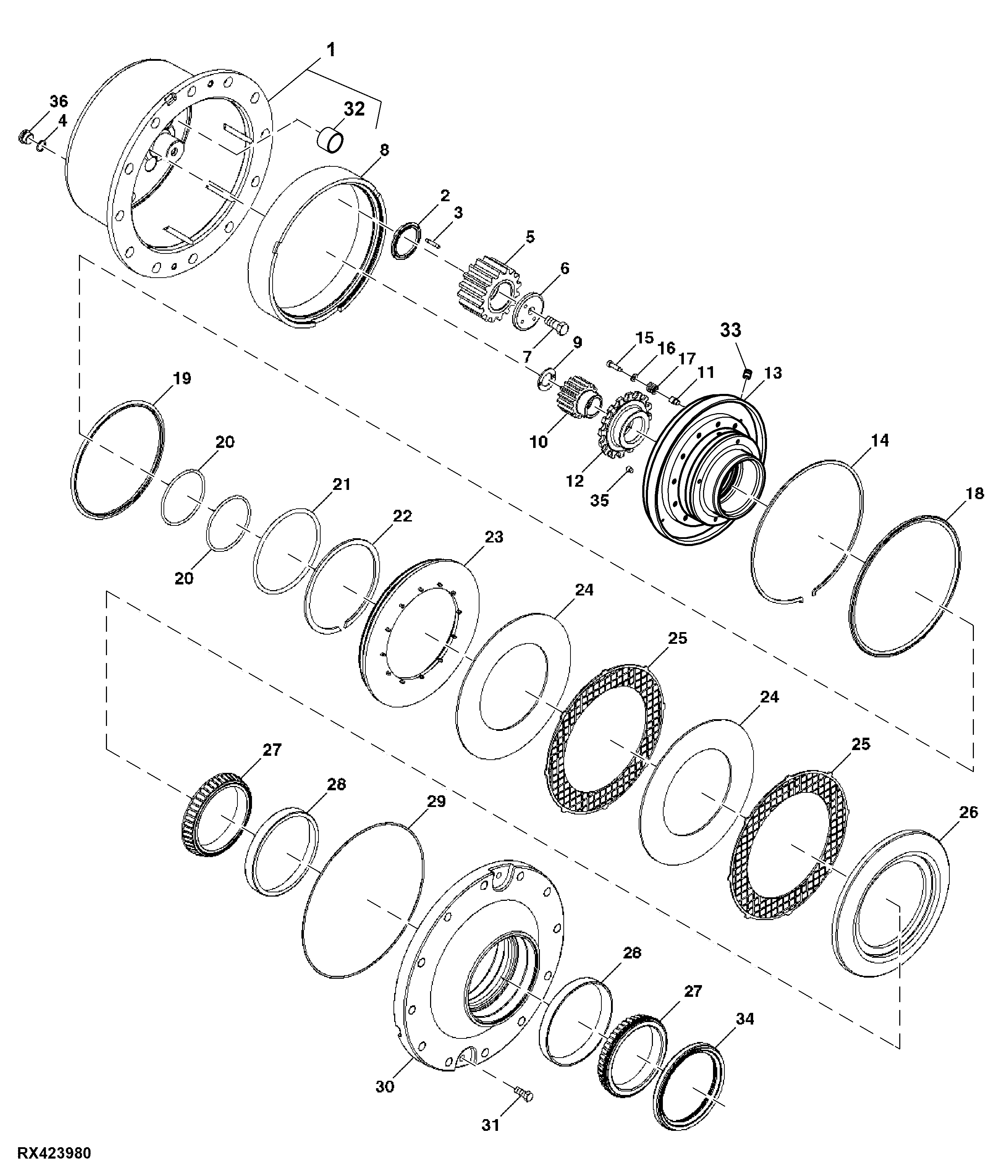

Hub Carrier and Planetary Drive W/ Brakes, MFWD

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE556206	1	Planet Pinion Carrier	ORDER RE564020; ALSO ORDER R539188
1	R238625	1	Planet Pinion Carrier	ORDER RE564020; ALSO ORDER R539188; SUB FOR R187536
1	RE564020	1	Planet Pinion Carrier	-
2	R332855	3	Thrust Washer	USE WITH RE556206 AND RE564020
2	R168091	3	Thrust Washer	USE WITH R238625
3	R121283	99	Needle Roller	-
4	P47889	1	O-Ring	-
5	R121282	3	Planet Pinion	-
6	R92871	3	Retainer	-
7	R112888	3	Cap Screw	-
8	R187515	1	Ring Gear	-
9	R100774	1	Thrust Washer	-
9	R539188	1	Thrust Washer	USE WITH RE564020
9	R238225	1	Thrust Washer	-
10	R130078	1	Pinion	SUB FOR R259958
11	R91842	1	Screw	-
12	R543207	1	Nut	SUB FOR R124404 AND R171858
13	R187512	1	Hub	-
14	R195492	1	Snap Ring	-
15	R187539	12	Screw	-
16	24M7232	12	Washer	8.700 X 17 X 2 mm
17	R187538	12	Compression Spring	-
18	RE187524	1	Seal	-
19	RE187523	1	Seal	-
20	R187513	2	O-Ring	-
21	R209626	1	Snap Ring	-
22	R187533	1	Snap Ring	-
23	R187517	1	Piston	-
24	R187530	2	Plate	-
25	RE292444	2	Brake Disk	SUB FOR RE187532
26	R187527	1	Plate	-
27	JD9050	2	Bearing Cone	-
28	JD9115	2	Bearing Cup	-
29	R87047	1	Ring	-
30	R104756	1	Hub	-
31	19M8011	2	Cap Screw	M12 X 30
32	R121362	3	Bearing Race	-
33	AT107510	1	Plug	-
34	RE154869	1	Seal	SUB FOR RE282252
35	R218924	1	Drain Plug	-
36	R336065	1	Fitting Plug	SUB FOR R98012

Hub Carrier and Planetary Drive W/ Brakes, MFWD
