Открытый узел

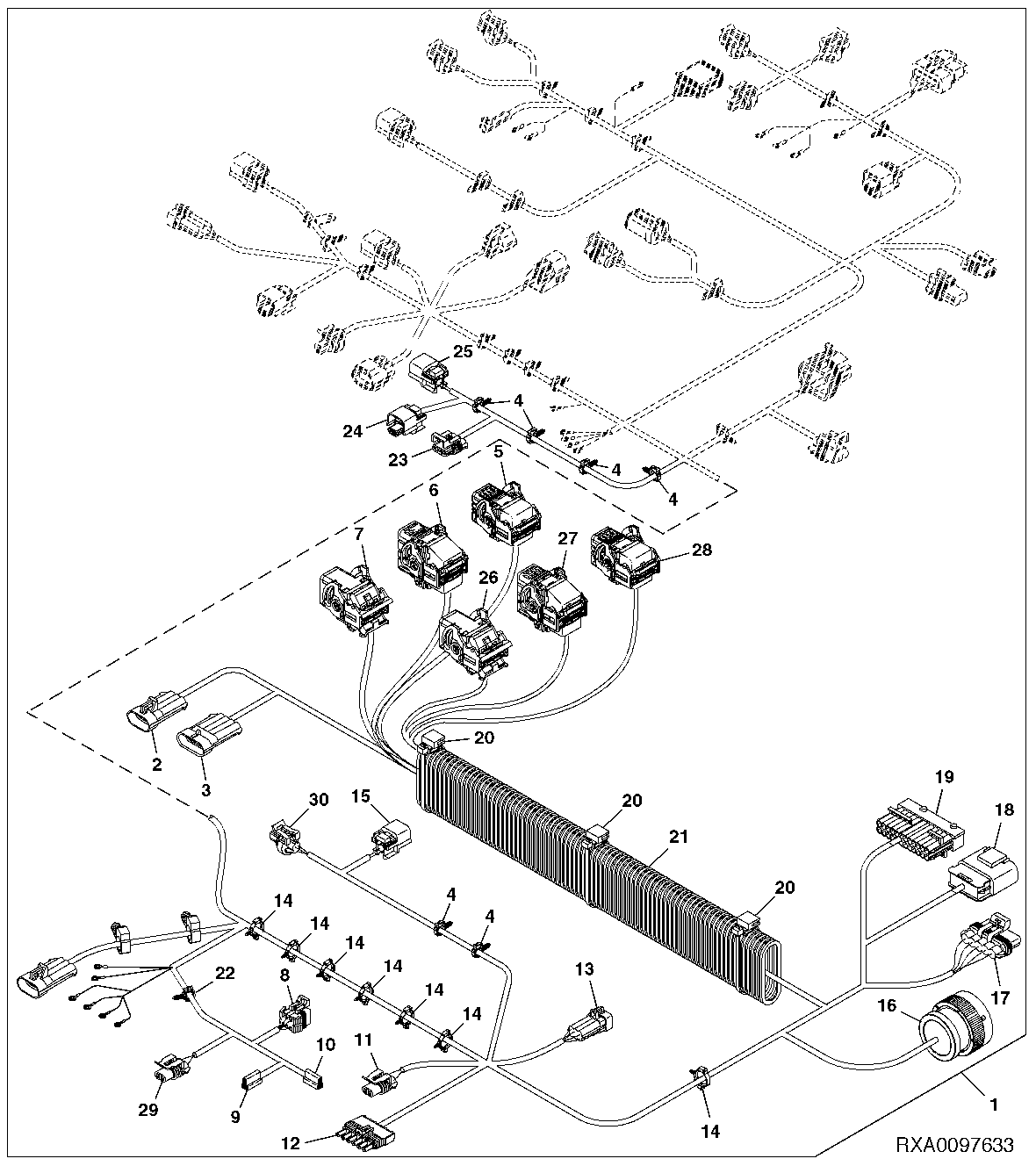

CHASSIS WIRING HARNESS CONNECTORS (2/2) (MANUAL SCV) (W/TLS) (W/FRONT BRAKE)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE259369	1	Chassis Wiring Harness	-
2	57M7257	1	Elec. Connector Housing	SCO HARNESS
2	57M7290	1	Elec. Connector Accessory	-
3	57M8415	1	Elec. Connector Housing	AUTOTRAC HARNESS
3	57M7469	1	Electrical Connector Assy	-
5	57M8519	1	Elec. Connector Housing	SCU J1 CONNECTOR
5	57M8528	1	Electrical Connector Cap	-
6	57M8527	1	Elec. Connector Housing	SCU J2 CONNECTOR
6	57M8529	1	Electrical Connector Cap	-
7	57M8520	1	Elec. Connector Housing	SCU J3 CONNECTOR
7	57M8528	1	Electrical Connector Cap	-
8	57M7966	1	Electrical Connector Assy	FUEL LIFT PUMP RELAY
8	57M8878	1	Elec.Connect Locking Device	-
9	R77476	1	Electrical Connector Assy	FRONT WASHER PUMP
10	R77476	1	Electrical Connector Assy	REAR WASHER PUMP
11	57M7256	1	Elec. Connector Housing	AIR BRAKE PRESSURE
11	57M7289	1	Elec.Connect Locking Device	-
12	57M9406	1	Elec. Connector Accessory	SINGLE POINT GROUND SPLICE PACK
12	57M8326	1	Electrical Connector Assy	-
13	57M7263	1	Elec. Connector Housing	REAR/SECONDARY BRAKE HARNESS
13	57M7291	1	Electrical Connector Assy	-
14	57M9188	1	Clip	-
15	57M8924	1	Elec. Connector Housing	FRONT BRAKE VALVE
15	57M8633	1	Elec. Connector Accessory	-
16	57M8795	1	Elec. Connector Housing	CAB CONNECTOR
17	57M7308	1	Elec. Connector Accessory	-
17	57M7301	1	Elec. Connector Housing	IMPLEMENT GROUND
18	57M9220	1	Elec. Connector Housing	TRANSMISSION HARNESS
19	57M8070	1	Elec. Connector Housing	TRANSMISSION HARNESS
19	57M8943	1	Elec.Connect Locking Device	-
20	57M9229	3	Clip	-
21	-	1	Part 32	-
22	57M8902	1	Clip	-
23	57M7255	1	Elec. Connector Housing	TLS POSITION
23	57M7290	1	Elec. Connector Accessory	-
24	57M8924	1	Elec. Connector Housing	TLS FRONT RAISE/LOWER
24	57M8633	1	Elec. Connector Accessory	-
25	57M8924	1	Elec. Connector Housing	TLS FRONT RAISE
25	57M8633	1	Elec. Connector Accessory	-
26	57M8523	1	Elec. Connector Housing	ECU J3 CONNECTOR
26	57M8528	1	Electrical Connector Cap	-
27	57M8527	1	Elec. Connector Housing	ECU J2 CONNECTOR
27	57M8529	1	Electrical Connector Cap	-
28	57M8519	1	Elec. Connector Housing	ECU J1 CONNECTOR
28	57M8528	1	Electrical Connector Cap	-
29	57M7254	1	Elec. Connector Housing	FUEL LEVEL
29	57M7289	1	Elec.Connect Locking Device	-
30	57M8625	1	Elec. Connector Housing	FRONT BRAKE PRESSURE
30	57M8624	1	Elec.Connect Locking Device	-

CHASSIS WIRING HARNESS CONNECTORS (2/2) (MANUAL SCV) (W/TLS) (W/FRONT BRAKE)

Нет текстового описания
