Открытый узел

PUMP, SINGLE

PUMP, SINGLE

PUMP, SINGLE

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

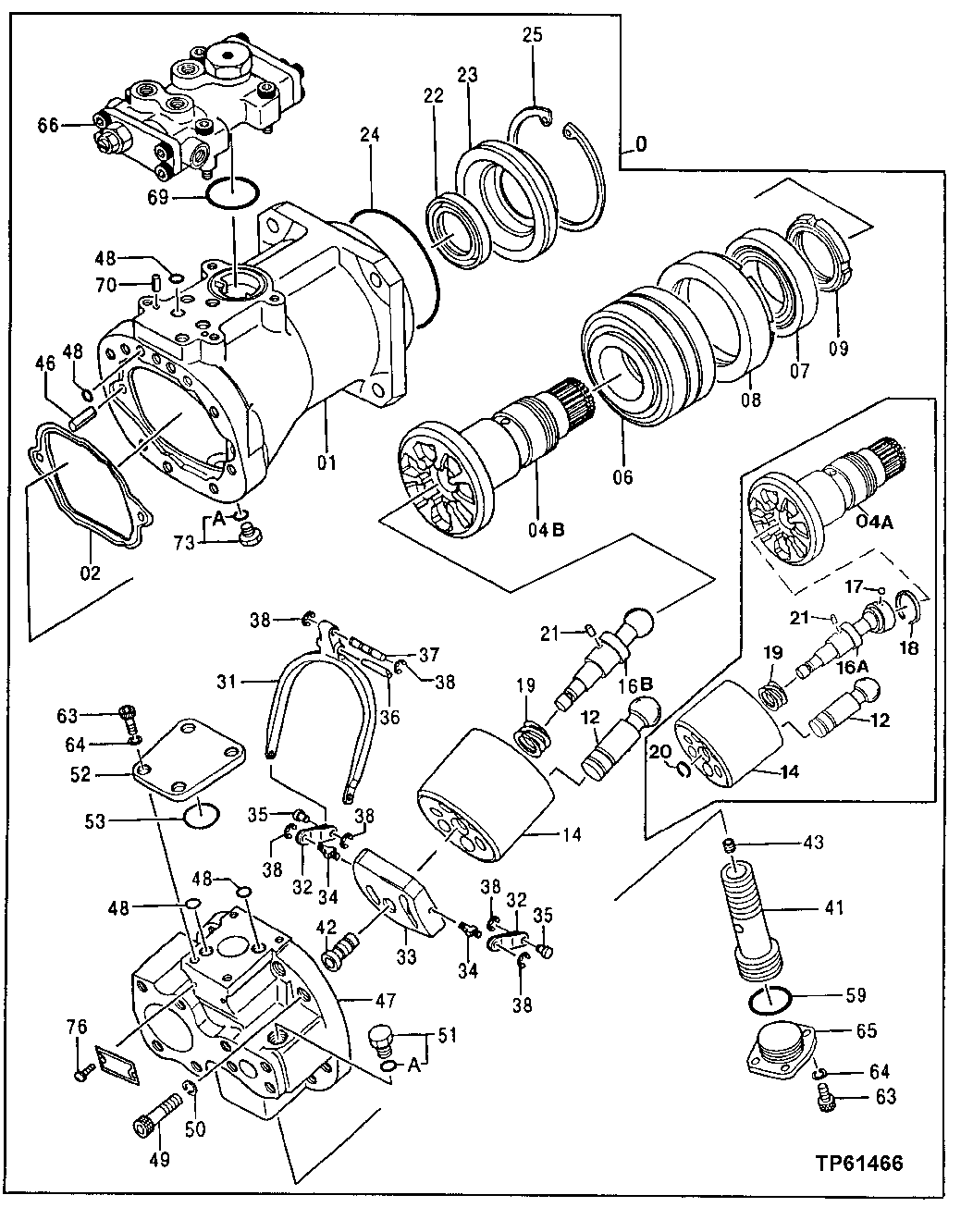

PUMP, SINGLE

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	9077555EX	1	Hydraulic Pump Reman	(REMAN FOR 9077555 AND AT205808)
0	9077555EX	1	Hydraulic Pump Reman	(USE IF AVAILABLE), (SUB AT217339)
1	-	1	Part 3	(NOT AVAILABLE FOR SERVICE)
2	8068521	1	Gasket	(SUB FOR TH112240 ) (SUB FOR AT250202)
6	TH111233	1	Tapered Roller Bearing	-
7	JD37194	1	Tapered Roller Bearing	-
8	3035965	1	Spacer	(SUB FOR TH111140)
9	4191665	1	Nut	M65, (SUB FOR TH111236)
12	8051275	7	Piston	(SUB FOR AT203603)
14	2022744	1	Rotor	(SUB FOR TH111111)
17	L38718	1	Ball	6 mm (0.236")
18	4191667	1	Snap Ring	(SUB FOR TH111238)
19	4194362	1	Compression Spring	(SUB FOR TH111266)
20	4193062	1	Snap Ring	(SUB FOR TH111251)
21	4198956	1	Pin Fastener	5 X 10 mm (0.197" X 0.394"), (SUB FOR T107766)
22	4639126	1	Seal	(SUB FOR TH112094)
23	3035966	1	Cover	(SUB FOR TH111141)
24	4191664	1	O-Ring	149.300 X 3.100 mm (5.878" X 0.122"), (SUB FOR TH111235)
25	40M7194	1	Snap Ring	-
31	3039569	1	Link	(SUB FOR TH111194)
32	9724756	2	Lever	(SUB FOR TH109873)
33	9749142	1	Valve	(SUB FOR AT168530 ) (SUB FOR AT250274)
34	4179179	2	Dowel Pin	(SUB FOR TH109874)
35	4179177	2	Dowel Pin	6 X 10 mm (0.236" X 0.394"), (SUB FOR TH109875)
36	4200227	1	Dowel Pin	(SUB FOR TH109878)
37	4179176	1	Dowel Pin	6 X 44 mm (0.236" X 1.732"), (SUB FOR TH109876)
38	CH17951	6	Ring	-
41	3106174	1	Piston	(SUB FOR 3036326 ) (ALSO ORDER 4641714 AND 4337812)
41	4641714	1	Pin Fastener	-
41	4337812	1	Set Screw	-
42	4193245	1	Pin Fastener	(SUB FOR TH111254)
43	4179838	1	Set Screw	M10 X 12, (SUB FOR TH109881)
46	34M7061	2	Spring Pin	8 X 20 mm
47	1011956	1	Cylinder Head	(SUB FOR AT200950)
48	CH11560	10	Packing	-
49	19M8341	8	Screw	M12 X 45
50	12M7058	8	Lock Washer	12 mm, (SUB FOR 12M6138)
51	AT318013	1	Drain Plug	(SUB FOR 4093624 ) (SUB FOR TH102536)
52	4204862	1	Cover	(SUB FOR TH111306)
53	955020	1	O-Ring	(SUB FOR TH111628, 4006683)
59	984623	1	O-Ring	41.700 X 3.500 mm (1.642" X 0.138"), (SUB FOR TH102592)
63	19M8446	8	Screw	M8 X 20
64	4514388	8	Spring Washer	(SUB FOR TH101835)
65	4216295	1	Stop	(SUB FOR TH111927)
66	9077557	1	Regulator	(SUB FOR AT205809)
69	CH17260	1	Packing	-
70	34M3845	2	Spring Pin	4 X 10 mm
73	9134111	1	Fitting	(SUB FOR AT203648)
76	37H99	2	Screw	0.100" X 1/4"
4A	2038877	1	Shaft	(SUB FOR TH111112, AT219590 AND AT219647)
4B	2038877	1	Shaft	(SUB FOR AT219590)
16A	-	1	Part 13	( 8035539 NO LONGER AVAILABLE) (FURNISH 3081023 AND 2038877), (SUB FOR TH111473, AT219647 AND AT219590)
16B	3081023	1	Shaft	(SUB FOR AT219647)
51A	M800650	1	Packing	-
73A	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32")
