Открытый узел

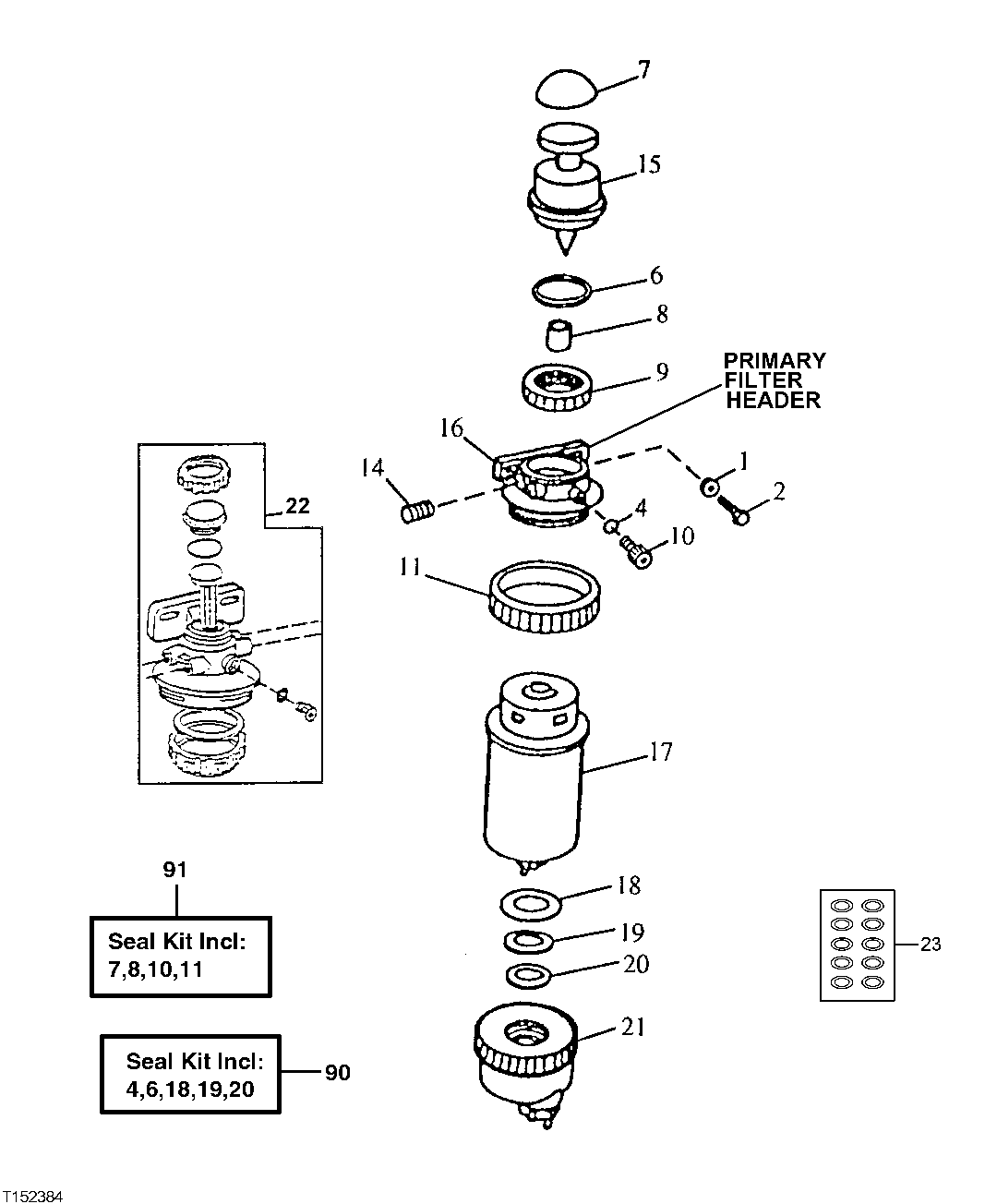

PRIMARY FUEL FILTER AND WATER SEPERATOR

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24M7239	2	Washer	10.700 X 21 X 2.500 mm
2	19H3483	2	Cap Screw	3/8" X 1-1/8"
4	R113562	1	O-Ring	(K1)
6	-	1	Part 4	(K1)
7	-	1	Part 5	(K2)
8	-	1	Part 6	(K2)
9	-	2	Part 7	-
10	R113563	1	Drain Plug	(K2)
11	-	1	Part 9	(K2)
14	15H604	2	Pipe Plug	1/4"
15	R113562	1	O-Ring	NOT ILLUSTRATED
15	RE50467	1	Hand Primer	PRIMARY FILTER
16	-	1	Part 13	PRIMARY FILTER ( RE63183 NO LONGER AVAILABLE), (SUB RE500161 ) (ALSO ORDER (2) R65684, (2) R82719 AND (4) R26286)
17	RE62424	1	Fuel Filter	PRIMARY FILTER (INCLUDES DRAIN VALVE), (SUB FOR RE53729 AND RE61723)
18	-	1	Part 15	(K1)
19	-	1	Part 16	(K1)
20	-	1	Part 17	(K1)
21	RE51650	1	Sediment Bowl	PRIMARY FILTER
22	RE500161	1	Filter Kit	PRIMARY FILTER (WHEN REPLACING RE63183, ALSO ORDER (2) R65684, (2) R82719 AND (4) R26286)
23	RE516513	1	Pump Repair Kit	(WITH HAND PRIMER) (CONTAINS 10 O-RINGS)
23	RE516512	1	O-Ring Kit	(WITHOUT HAND PRIMER) (CONTAINS 10 O-RINGS)
90	RE516553	1	Seal Kit	INCLUDES ALL (K1) PARTS, (SUB FOR RE50752)
91	RE51649	1	Seal Kit	INCLUDES ALL (K2) PARTS (MECHANICAL)

PRIMARY FUEL FILTER AND WATER SEPERATOR
