Открытый узел

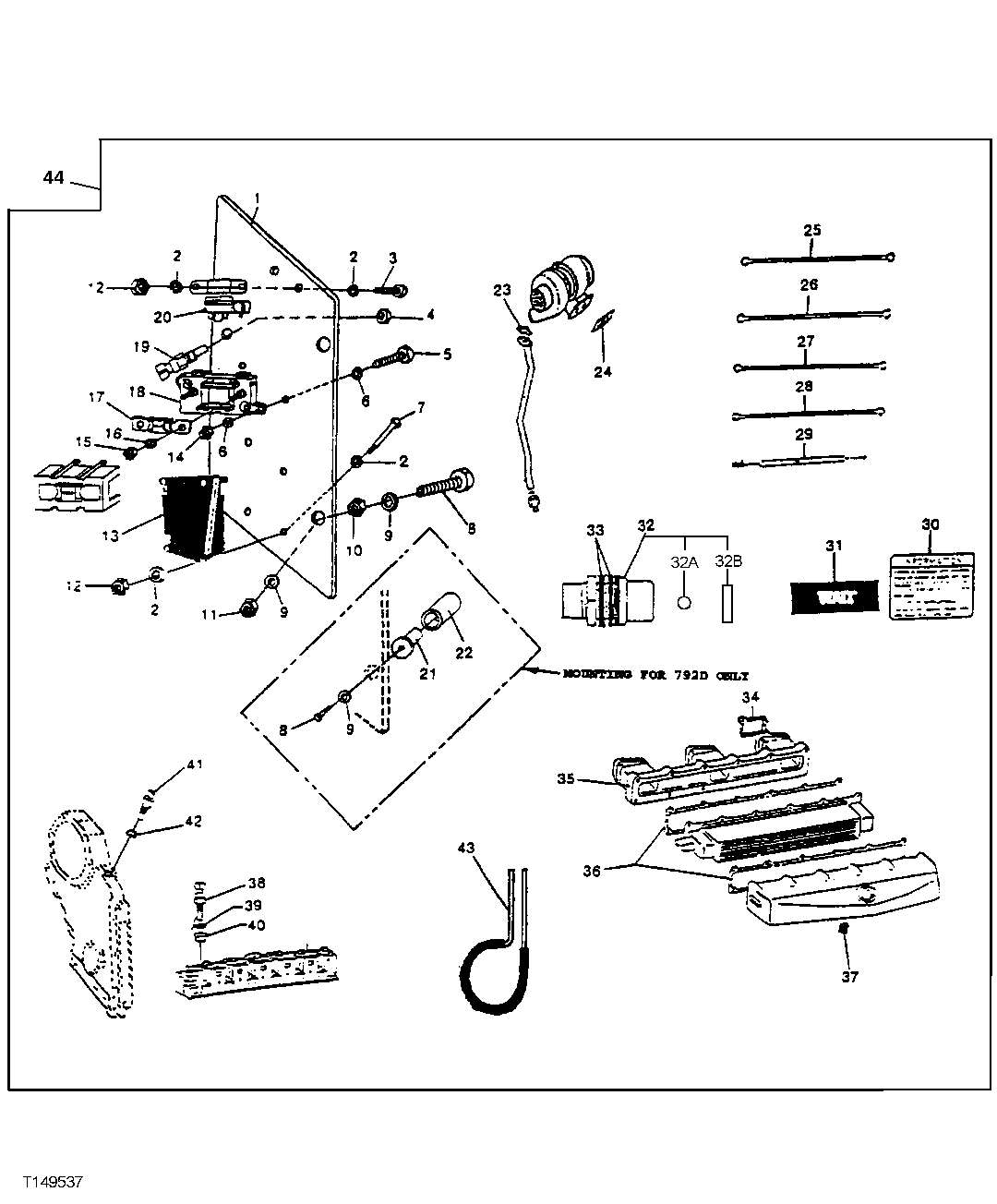

AIR HEATER KIT (24 VOLT)

AIR HEATER KIT (24 VOLT)

AIR HEATER KIT (24 VOLT)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

AIR HEATER KIT (24 VOLT)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	-
2	24H1287	12	Washer	9/32" X 5/8" X 0.065"
5	19H3370	2	Cap Screw	0.190" X 5/8"
6	24H1283	4	Washer	7/32" X 1/2" X 0.049"
7	19H2151	4	Cap Screw	1/4" X 3"
8	19H1732	2	Cap Screw	3/8" X 1-1/4"
9	24H1884	4	Washer	13/32" X 13/16" X 0.120", (4) USED 892E, (2) USED 792D)
10	14H812	2	NUT	3/8", (892E ONLY)
11	T11234	2	Lock Nut	-
12	M40333	6	Lock Nut	-
13	RE67622	1	Control	-
14	U45916	2	Lock Nut	-
15	14M7029	2	Nut	M8
16	12M7056	1	Lock Washer	8 mm, (SUB FOR 12M7065)
17	AT203566	1	Fuse	(125 AMP)
18	AT206818	1	Fuse Holder	-
19	RE38310	1	Sensor	(AMBIENT TEMP)
20	AT145341	1	Relay	-
21	T145755	1	Nut	(792D-LC ONLY)
22	-	1	Part 20	(792D-LC ONLY)
23	R105346	1	Gasket	-
24	R89879	1	Gasket	-
25	RE67625	1	Wiring Harness	(BLACK) (MANIFOLD GROUND CABLE)
26	RE67623	1	Wiring Harness	(RED) (BATTERY DISCONNECT RELAY WIRE)
27	RE67624	1	Wiring Harness	(RED) (HEATER RELAY WIRE)
28	RE66685	1	Wiring Harness	(RED) (FUSE WIRE)
29	RE67794	1	Wiring Harness	(RELAY JUMPER WIRE)
30	R131562	1	Label	(WINDSHIELD)
31	R132503	1	Label	(WAIT LAMP)
32	RE67670	1	Wiring Harness	(WAIT LAMP)
33	R132749	2	Washer	-
34	R130573	3	Gasket	-
35	RE65907	1	Intake Manifold	(USE WHEN R107633, PREVIOUSLY INSTALLED)
35	RE65910	1	Intake Manifold	(AT030 ENGINE) (892E-LC)
36	R88993	2	Gasket	-
37	15H569	1	Pipe Plug	1/8"
38	RE38310	1	Sensor	(COOLANT)
39	R77673	1	O-Ring	-
40	R90145	1	Adapter Fitting	-
41	RE519144	1	Sensor	(SUB FOR RE71121, RE508195)
42	51M7044	1	O-Ring	17.300 X 2.200 mm
43	T76252	2	Clamp	-
44	RE69434	1	Kit	(CONTAINS RE65907)(USE WHEN R107633, PREVIOUSLY INSTALLED) (NON EMISSION CERTIFIED ENGINES)
44	RE71383	1	Kit	(CONTAINS RE65910)(EMISSION CERTIFIED ENGINES) (USE WHEN R127427 PREVIOUSLY INSTALLED)
..	RE67626	1	Wiring Harness	(- ALSO INCLUDED IN KIT) (MANIFOLD HEATER)
..	14M7272	2	Nut	(- ALSO INCLUDED IN KIT) M6, (SUB FOR 14M7027)
..	R44302	20	Tie Band	(A)
32A	R132487	1	Bulb	-
32B	R132488	1	Lens	(AMBER)
