SERVICE DOORS AND COVERS (792) [02D16]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

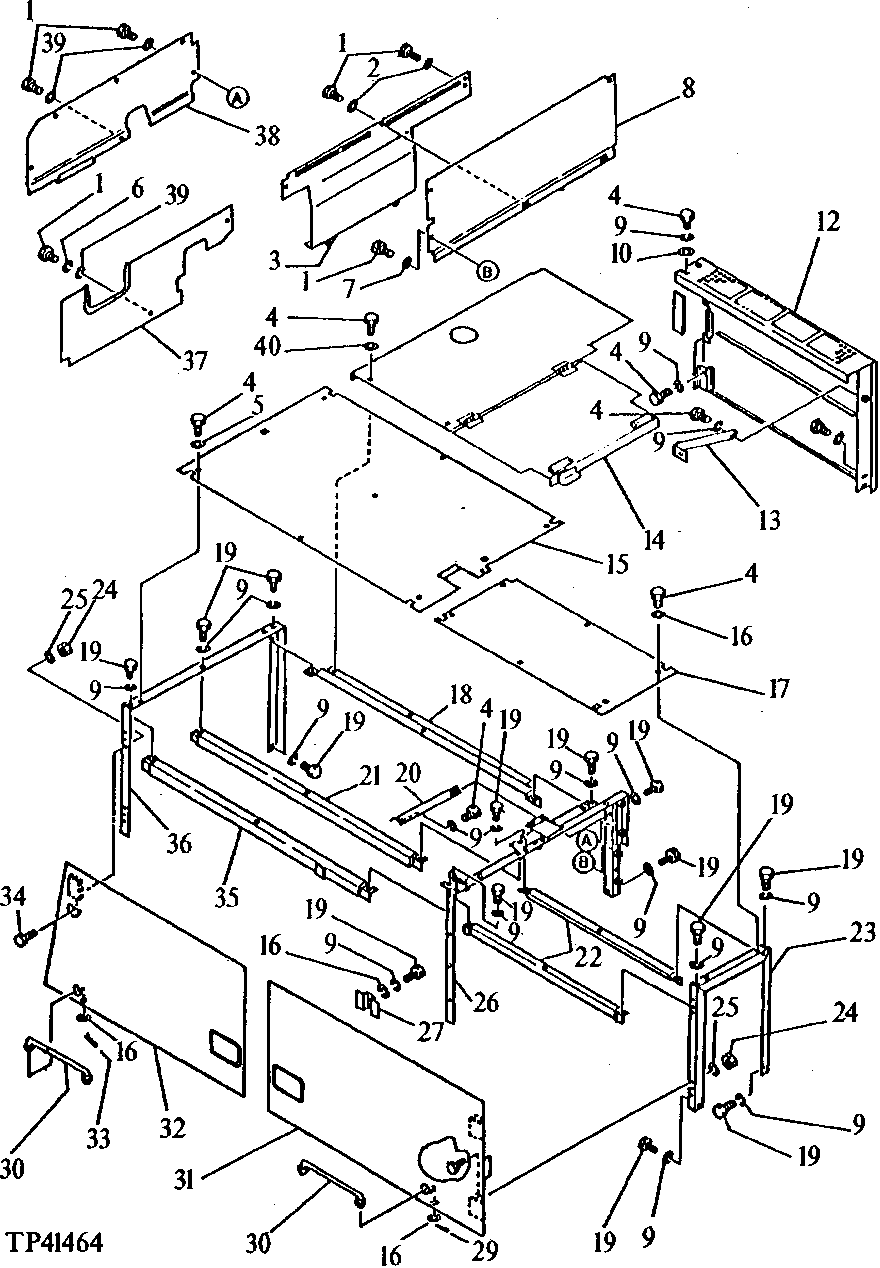

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8017	17	Cap Screw	M12 X 20
2	24M7047	2	Washer	13 X 24 X 2.500 MM, (SUB FOR TH100967)
3	8026444	1	PLATE	(SUB FOR TH103058)
4	19M8017	23	Cap Screw	-
5	24M7047	14	Washer	13 X 24 X 2.500 MM, (SUB FOR TH100967)
6	12H301	1	Lock Washer	1/2", (SUB FOR TH100413)
7	24M7047	3	Washer	13 X 24 X 2.500 MM, (SUB FOR TH100967)
8	8027198	1	COVER	(SUB FOR TH103059) (SUB FOR TH106767)
9	12H301	25	Lock Washer	1/2", (SUB FOR TH100413)
10	24M7047	15	Washer	13 X 24 X 2.500 MM
11	4128399	1	PLATE	(SUB FOR TH102209)
12	7013642	1	COVER	(SUB FOR TH103055)
13	4164022	1	SUPPORT	(SUB FOR TH103054)
14	7014530	1	COVER	(SUB FOR TH103060)
15	7013701	1	COVER	(SUB FOR TH103050)
16	24M7047	6	Washer	13 X 24 X 2.500 MM, (SUB FOR TH100967)
17	7013156	1	COVER	(SUB FOR TH103051)
18	8030087	1	SUPPORT	(SUB FOR TH103046)
19	19M7872	19	Cap Screw	M12 X 25
20	9719318	1	SUPPORT	(SUB FOR TH103045)
21	9719320	1	SUPPORT	(SUB FOR TH103047)
22	9717901	2	SUPPORT	(SUB FOR TH103049)
23	8026441	1	SUPPORT	(SUB FOR TH103044)
24	14M7274	12	Nut	M10
25	12M7066	12	Lock Washer	10 MM, (SUB FOR TH100417)
26	7013702	1	SUPPORT	(SUB FOR TH103043)
27	TH102200	2	STOP	-
28	19M7938	2	Cap Screw	M10 X 20
29	R50647	1	Spring Locking Pin	(SUB FOR TH101244)
30	9707254	2	ROD	(SUB FOR TH101245)
31	6006293	1	DOOR	(SUB FOR TH103053)
32	6006294	1	DOOR	(SUB FOR TH103052)
33	R50647	1	Spring Locking Pin	(SUB FOR TH101244)
34	19M7938	10	Cap Screw	M10 X 20
35	9719319	1	SUPPORT	(SUB FOR TH103048)
36	8028195	1	SUPPORT	(SUB FOR TH103042)
37	8028076	1	COVER	(SUB FOR TH103056)
38	8028937	1	COVER	(SUB FOR TH103057)
39	24M7047	12	Washer	13 X 24 X 2.500 MM, (SUB FOR TH100967)
40	24M7047	3	Washer	13 X 24 X 2.500 MM
40	24H1748	3	Washer	1/2" X 1-1/4" X 0.105"
