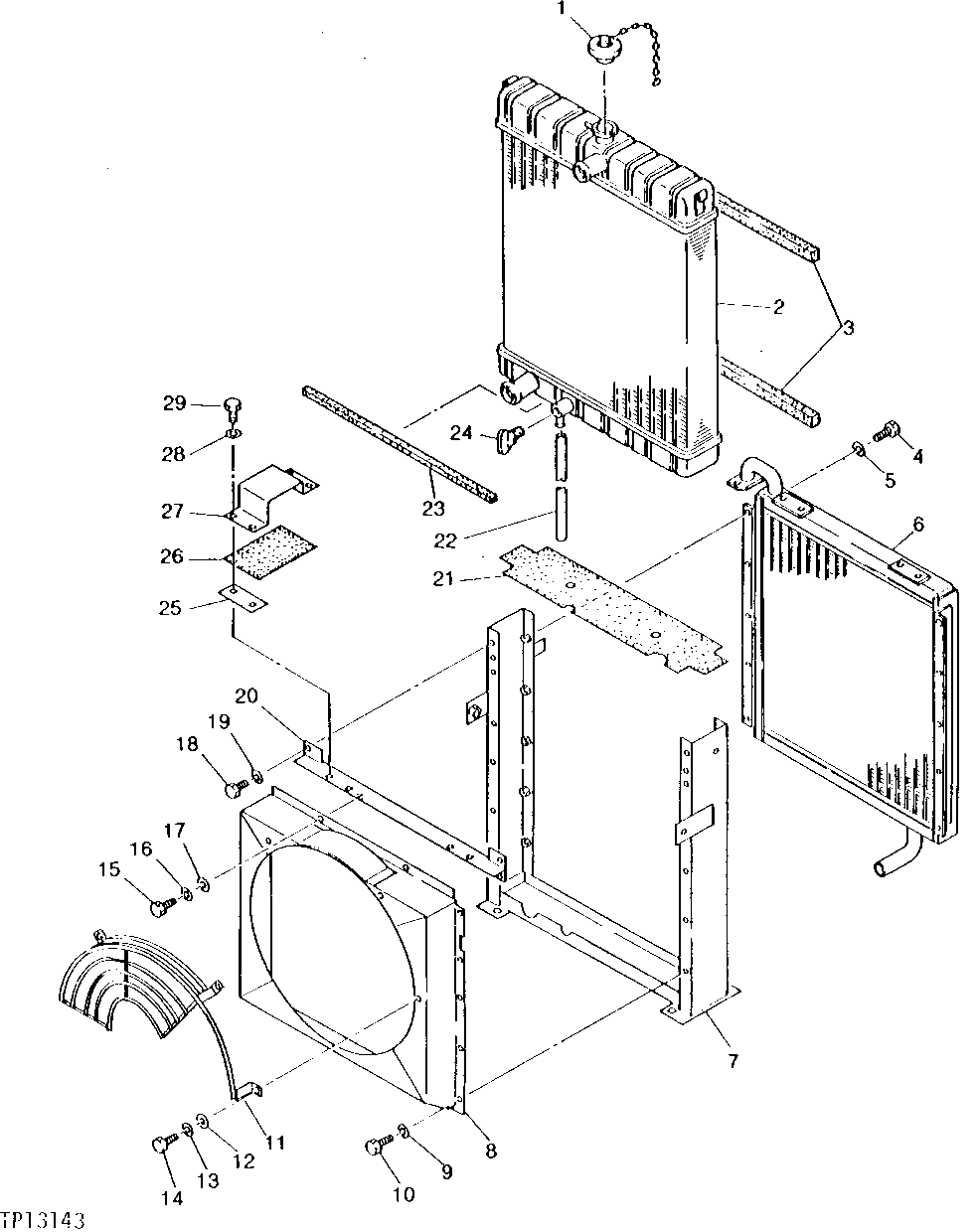

RADIATOR, OIL COOLER AND SHROUD [01H16]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	4160920	1	CAP	(SUB FOR TH101765)
2	4163730	1	RADIATOR	(SUB FOR TH101758)
2	4163735	1	RADIATOR	(SUB FOR TH102884)
2	4163735	1	RADIATOR	(SUB FOR TH102884)
3	4163383	2	PACKING	(SUB FOR TH101767)
4	19M7402	10	Cap Screw	M10 X 25
5	12M7066	10	Lock Washer	10 MM, (SUB FOR TH100417)
6	4163731	1	OIL COOLER	(SUB FOR TH101766)
6	4163736	1	OIL COOLER	(SUB FOR TH102886)
6	4163736	1	OIL COOLER	(SUB FOR TH102886)
7	4163729	1	FRAME	(SUB FOR TH101756)
7	4163734	1	FRAME	(SUB FOR TH102883)
7	4163734	1	FRAME	(SUB FOR TH102883)
8	4163732	1	SHROUD	(SUB FOR TH101763)
8	4163737	1	SHROUD	(SUB FOR TH102885)
8	4163737	1	SHROUD	(SUB FOR TH102885)
9	12M7066	10	Lock Washer	10 MM, (SUB FOR TH100417)
10	19M7938	10	Cap Screw	M10 X 20
11	4163733	1	GUARD	(SUB FOR TH101768)
12	24M7055	3	Washer	8.400 X 16 X 1.600 MM, (SUB FOR TH100280)
13	12M7056	3	Lock Washer	8 MM, (SUB FOR TH100529) (SUB FOR 12M7065)
14	19M7932	3	Cap Screw	M8 X 16
15	19M7923	2	Cap Screw	M6 X 12
16	12M7006	2	Lock Washer	6 MM, (SUB FOR TH100548)
17	24M7054	2	Washer	6.400 X 12 X 1.600 MM, (SUB FOR TH100278)
18	19M7402	4	Cap Screw	M10 X 25
19	12M7066	4	Lock Washer	10 MM, (SUB FOR TH100417)
20	4163386	1	BRACKET	(SUB FOR TH101759)
21	4163387	1	PACKING	(SUB FOR TH101757)
22	-	1	Part 30	( TH110139 NO LONGER AVAILABLE) (MAKE FROM 1/2 INCH I.D. VINYL TUBING CUT TO LENGTH)
23	4163381	1	PACKING	(SUB FOR TH101769)
24	4148705	1	Drain Plug	(SUB FOR TH100907) (SUB FOR TH109425)
25	4160911	8	STRAP	(SUB FOR TH101762)
26	4163384	2	PACKING	(SUB FOR TH101761)
27	4163385	2	HOLDER	(SUB FOR TH101760)
28	12M7066	8	Lock Washer	10 MM, (SUB FOR TH100417)
29	19M7402	8	Cap Screw	M10 X 25

RADIATOR, OIL COOLER AND SHROUD [01H16]

Нет текстового описания
