Открытый узел

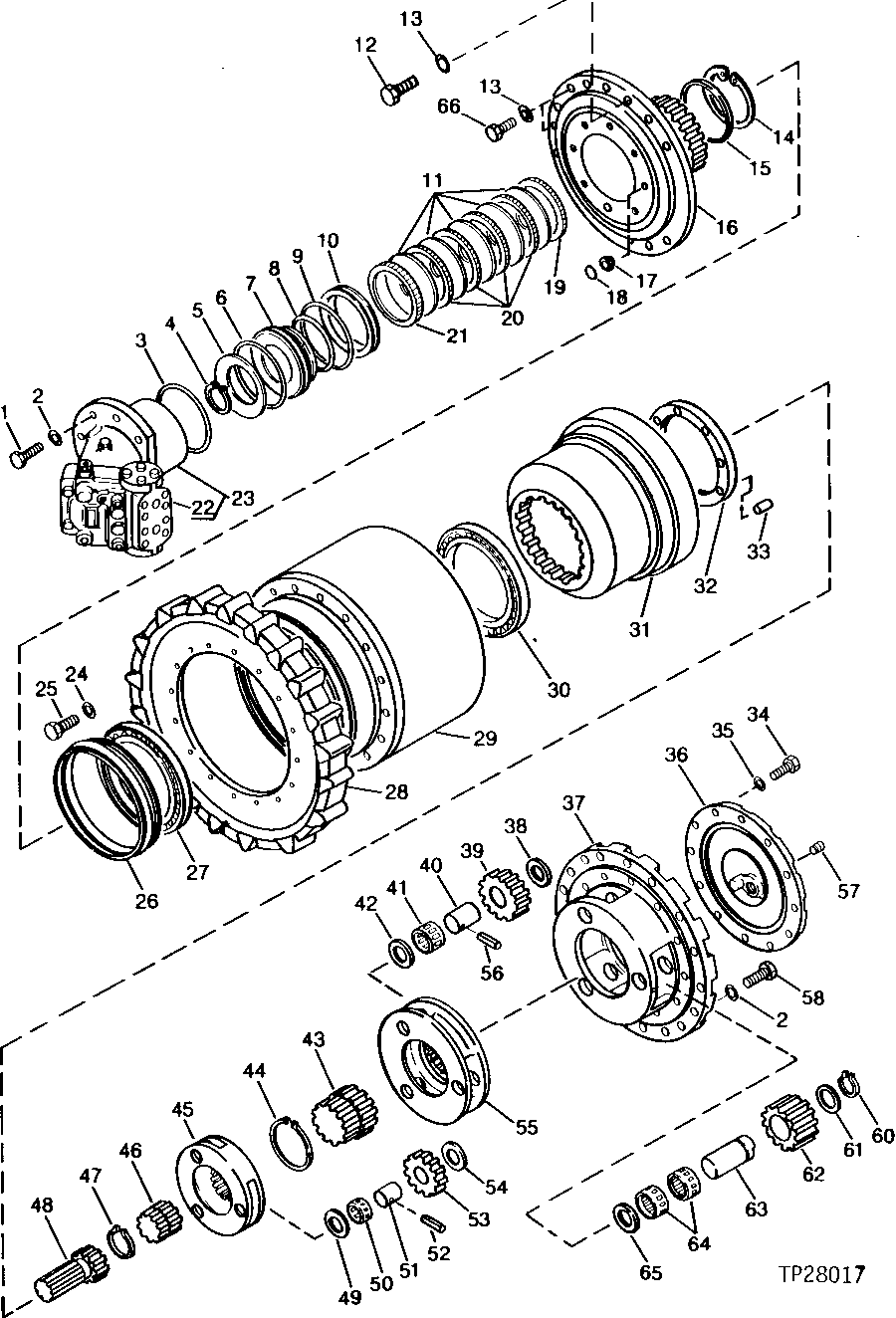

PROPEL MOTOR, BRAKE AND FINAL DRIVE [01C13]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
30	4138577	1	CYLINDRICAL ROLLER BEARING	(SUB FOR TH103096)
30	JD9603	1	BEARING CONE	(SUB FOR 4126654 ALONG WITH JD9157)
30	JD9157	1	BEARING CUP	-
31	1006703	1	RING GEAR	(SUB FOR TH102286)
31	1006714	1	RING GEAR	(SUB FOR TH103100)
32	3022523	1	RETAINER	(SUB FOR TH100469)
32	3025266	1	RETAINER	(SUB FOR TH103101)
33	4126653	1	DOWEL PIN	(SUB FOR TH100470)
33	4138498	1	DOWEL PIN	(SUB FOR TH103102)
34	19M8765	12	Screw	M12 X 28, (SUB FOR TH102307 OR AT131539) (ALSO ORDER 12M7067) (SUB FOR 19M3204)
34	12M7058	12	Lock Washer	12 MM (0.472") (SUB FOR 12M7067)
35	4065034	12	WASHER	(SUB FOR TH100486)
36	2016635	1	COVER	(SUB FOR TH102306)
36	2016767	1	COVER	(SUB FOR TH103114)
37	1006704	1	PLANET PINION CARRIER	(SUB FOR TH102301)
37	1006758	1	PLANET PINION CARRIER	(SUB FOR TH103109)
38	4113761	3	THRUST WASHER	(SUB FOR TH102293)
39	3025076	3	GEAR	(SUB FOR TH102297)
39	TH103108	3	GEAR	-
40	4144558	3	Bushing	(SUB FOR TH102298)
41	4126657	3	NEEDLE BEARING	(SUB FOR TH102299)
42	4113761	3	THRUST WASHER	(SUB FOR TH102293)
43	3025072	1	SUN GEAR	(SUB FOR TH102295)
43	3025271	1	SUN GEAR	(SUB FOR TH103107)
44	957581	1	SNAP RING	(SUB FOR TH102296)
44	40M7193	1	Snap Ring	(SUB FOR TH102289)
45	2016633	1	PLANET PINION CARRIER	(SUB FOR TH102287)
45	2016772	1	PLANET PINION CARRIER	(SUB FOR TH103103)
46	3025074	1	SUN GEAR	(SUB FOR TH102288)
46	3025270	1	SUN GEAR	(SUB FOR TH103104)
47	40M7193	1	Snap Ring	(SUB FOR TH102289)
47	991351	1	Snap Ring	(SUB FOR TH102644)
48	2016634	1	SHAFT	(SUB FOR TH102310)
48	2016771	1	SHAFT	(SUB FOR TH103115)
49	4113761	3	THRUST WASHER	(SUB FOR TH102293)
49	4135227	3	THRUST WASHER	(SUB FOR TH100477)
50	TH102292	3	NEEDLE BEARING	-
50	4135194	3	NEEDLE BEARING	(SUB FOR TH100476)
51	4137721	3	PIN FASTENER	(SUB FOR TH102291)
51	4135192	3	PIN FASTENER	(SUB FOR TH100475)
52	4082632	3	SPRING PIN	4 X 60 MM (0.157" X 2.362") (SUB FOR TH100478)
53	3025077	3	GEAR	(SUB FOR TH102290) PLANETARY
53	3025268	3	GEAR	(SUB FOR TH103105) PLANETARY
54	4113761	3	THRUST WASHER	(SUB FOR TH102293)
54	4135227	3	THRUST WASHER	(SUB FOR TH100477)
55	2016632	1	PLANET PINION CARRIER	(SUB FOR TH102294)
55	1006762	1	PLANET PINION CARRIER	(SUB FOR TH103106)
56	34M7014	3	Spring Pin	5 X 60 MM (0.197" X 2.362") (SUB FOR TH102300)
57	4241425	1	FITTING PLUG	(SUB FOR TH102308) (SUB FOR TH111906)
58	19M7489	16	Cap Screw	M16 X 45
60	962002	3	Snap Ring	(SUB FOR TH100483)
61	4062857	3	THRUST WASHER	(SUB FOR TH102305)
61	4138499	3	THRUST WASHER	(SUB FOR TH103113)
62	3025075	3	GEAR	(SUB FOR TH102302) PLANETARY
62	TH103110	3	GEAR	PLANETARY
63	4137722	3	SHAFT	(SUB FOR TH102303)
63	4138497	3	SHAFT	(SUB FOR TH103111)
64	4513638	6	NEEDLE BEARING	(SUB FOR TH102304)
64	TH103112	6	NEEDLE BEARING	-
65	4062857	3	THRUST WASHER	(SUB FOR TH102305)
65	4138499	3	THRUST WASHER	(SUB FOR TH103113)
66	19M7892	4	Cap Screw	M20 X 80
66	4175219	4	BOLT	(SUB FOR TH103537)
66	19M7892	4	Cap Screw	M20 X 80
66	4175219	4	BOLT	(SUB FOR TH103537)

PROPEL MOTOR, BRAKE AND FINAL DRIVE [01C13]

Нет текстового описания
