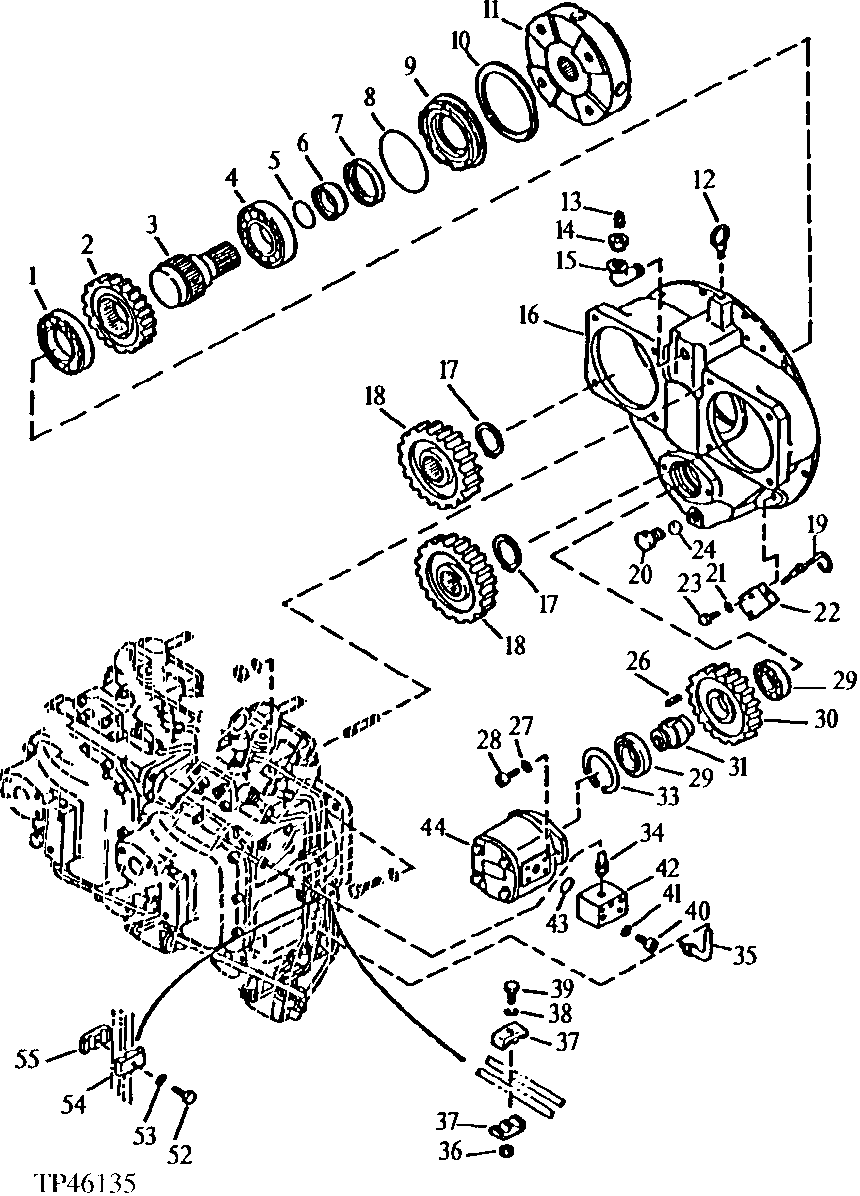

MAIN HYDRAULIC PUMP, GEARBOX AND DRIVE [02E17]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M804206	1	Bearing	(SUB FOR TH101792) (SUB FOR AT250102)
1	M804206	1	Bearing	(SUB FOR TH101792) (USE IF AVAILABLE)
2	3024914	1	GEAR	(SUB FOR TH101788)
3	40M7120	1	Snap Ring	(SUB FOR TH101789)
3	40M7120	1	Snap Ring	(SUB FOR TH101789)
3	3035308	1	SHAFT	(SUB FOR TH106792)
3	3035308	1	SHAFT	(SUB FOR TH106792)
4	JD9320	1	Ball Bearing	(SUB FOR TH101793 OR TH108029)
5	4089823	1	O-Ring	49.400 X 3.100 MM (1.945" X 0.122") (SUB FOR TH101791)
6	40M7120	1	Snap Ring	-
6	40M7120	1	Snap Ring	-
6	4114333	1	BUSHING	(SUB FOR TH101790)
6	4114333	1	BUSHING	(SUB FOR TH101790)
7	4171410	1	SEAL	(SUB FOR TH101794)
8	4154411	1	O-RING	(SUB FOR TH101796)
9	4136782	1	COVER	(SUB FOR TH101795)
10	4154412	1	SNAP RING	(SUB FOR TH101797)
11	4080519	1	COUPLING	(SUB FOR TH102897)
12	4092149	1	Eyebolt	(SUB FOR TH101814)
13	4511984	1	Pipe Plug	(SUB FOR TH101812)
14	J728684	1	Reducer	(SUB FOR TH101811)
15	15H621	1	Elbow Fitting	19.050 MM (3/4") (SUB FOR TH101810)
16	1006666	1	GEAR CASE	(SUB FOR TH101787)
17	40M7166	2	Snap Ring	(SUB FOR TH101799)
18	3024915	2	GEAR	(SUB FOR TH101798)
19	4159308	1	DIPSTICK	(SUB FOR TH101808)
20	15M7036	2	Drain Plug	(SUB FOR TH109285 OR 0309805) (SUB FOR 4092534 OR 4217653, ALONG WITH CH11570)
21	12M7066	2	Lock Washer	10 MM (0.394") (SUB FOR TH100417)
22	4159309	1	JUNCTION BLOCK	(SUB FOR TH101809)
23	TH101815	2	BOLT	-
24	CH10569	2	Packing	(USE WITH 0309805 OR 15M7036)
24	CH11570	2	O-Ring	(USE WITH 0309805 OR 15M7036)
26	4118495	1	Key	(SUB FOR TH101802)
27	12M7135	2	Lock Washer	10 MM (0.394") (SUB FOR TH101817) (SUB FOR 12M6791)
28	19M8440	2	Screw	M10 X 25, (SUB FOR TH101108)
29	JD8514	2	Ball Bearing	(SUB FOR TH101803)
30	3024916	1	GEAR	(SUB FOR TH101800)
31	3021068	1	SHAFT	(SUB FOR TH101801)
33	40M7090	1	Snap Ring	(SUB FOR TH101804)
