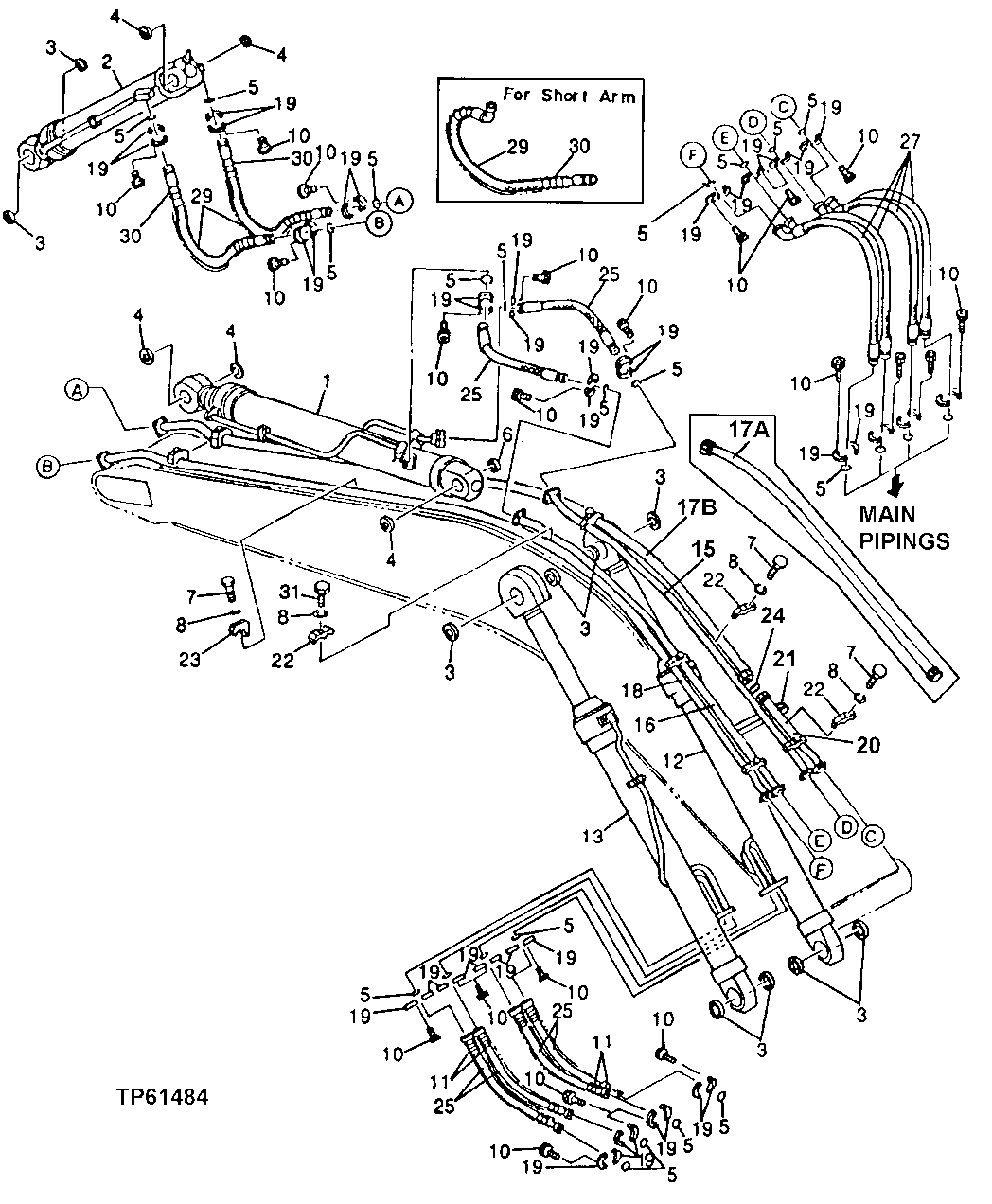

BOOM, BUCKET AND ARM PLUMBING (790) [02G23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(ARM)
2	-	1	Part 2	(BUCKET)
3	TH102445	10	Seal	(I.D. 100 MM - O.D. 115 MM)
4	TH102446	8	Seal	(I.D. 80 MM - O.D. 95 MM)
5	T78313	24	O-Ring	32.918 X 3.531 MM (1.296" X 0.139") (SUB FOR TH101988 AND H61355)
7	19M7719	9	Cap Screw	M16 X 70, (SUB FOR TH101987)
8	12H294	11	Lock Washer	15.875 MM (5/8") (SUB FOR TH100466)
10	M341032	96	Screw	M10 X 32, (SUB FOR TH101301)
11	4055141	4	GUARD	(SUB FOR TH102470)
12	-	1	Part 10	(RIGHT BOOM)
13	-	1	Part 11	(LEFT BOOM)
15	8030827	1	TUBE	(SUB FOR TH102474)
16	8030828	1	TUBE	(SUB FOR TH102475)
18	8030830	1	TUBE	(SUB FOR TH102477)
19	H61354	48	Flange Fitting	(SUB FOR TH102473)
20	9752843	1	OIL LINE	(SUB FOR AT185735)
21	4144315	1	SCREW	(SUB FOR AT185736)
22	4148597	7	CLAMP	(SUB FOR TH101981)
23	4148598	4	CLAMP	(SUB FOR TH102472)
24	T78612	1	O-Ring	-
25	4154620	6	HYDRAULIC HOSE - FABRICATE	(SUB FOR TH102478)
27	TH102479	4	HYDRAULIC HOSE	-
29	TH102483	2	HYDRAULIC HOSE	STANDARD ARM
29	4157650	2	HYDRAULIC HOSE	(SUB FOR TH102484) LONG ARM
29	4173045	2	HOSE	(SUB FOR TH103462) 90° END (SHORT ARM)
30	4053617	2	Guard	(SUB FOR TH102482) SHORT ARM
30	TH102480	2	GUARD	STANDARD ARM
30	4060288	2	GUARD	(SUB FOR TH106776) LONG ARM
31	19M7417	2	Cap Screw	M16 X 65, (SUB FOR TH102471)
17A	8074761	1	OIL LINE	(USE IF AVAILABLE) FOR T78612 SUB AT250019 THIS APPLICATION, (SUB FOR TH102476) (SUB AT185734, AT185735, AT185736, TH101981, 19M7719, 12H294 AND T78612)
17B	8074761	1	OIL LINE	(SUB FOR AT185734)

BOOM, BUCKET AND ARM PLUMBING (790) [02G23]

Нет текстового описания
