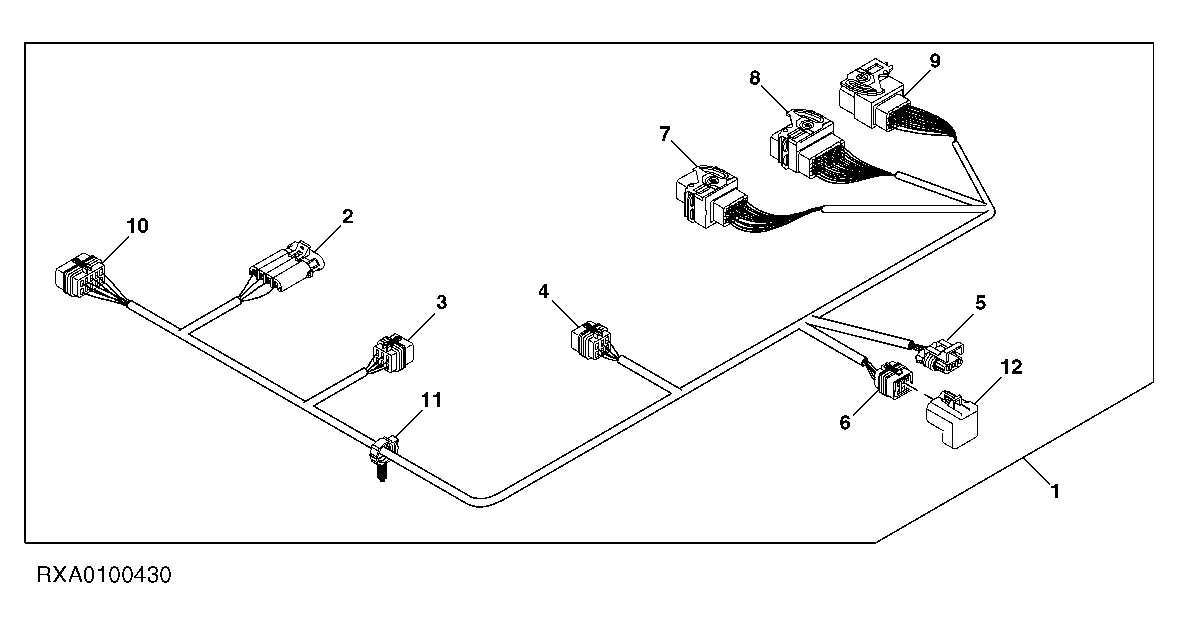

WIRING HARNESS (MIDSTACK, 2-3 FUNCTION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE310889	1	Wiring Harness	(SUB FOR RE236952)
2	57M8416	1	Elec. Connector Housing	GRAPPLE VALVE
2	57M7469	1	Electrical Connector Assy	-
3	57M7260	2	Elec. Connector Housing	FRONT HITCH SW EXTENSION
3	57M7260	1	Elec. Connector Housing	-
4	57M7263	2	Elec. Connector Housing	CAN BACKBONE
4	57M7291	1	Electrical Connector Assy	-
5	57M7255	1	Elec. Connector Housing	ENGINE HARNESS
5	57M7290	1	Elec. Connector Accessory	-
6	57M7291	1	Electrical Connector Assy	-
6	57M7260	1	Elec. Connector Housing	CAN TERMINATOR OR EXTENSION
7	57M8518	1	Elec. Connector Housing	SCO J1 CONNECTOR
7	57M8528	1	Electrical Connector Cap	-
8	57M8526	1	Elec. Connector Housing	SCO J2 CONNECTOR
8	57M8529	1	Electrical Connector Cap	-
9	57M8521	1	Elec. Connector Housing	SCO J3 CONNECTOR
9	57M8528	1	Electrical Connector Cap	-
10	57M7262	1	Elec. Connector Housing	SCV5 AND SCV6
10	57M8907	1	Elec.Connect Locking Device	-
11	57M8902	8	Clip	-
12	RE207311	1	Electronic Control Unit	-

WIRING HARNESS (MIDSTACK, 2-3 FUNCTION)
