Открытый узел

TRANSMISSION WIRING HARNESS (IVT)

TRANSMISSION WIRING HARNESS (IVT)

TRANSMISSION WIRING HARNESS (IVT)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

TRANSMISSION WIRING HARNESS (IVT)

Нет текстового описания

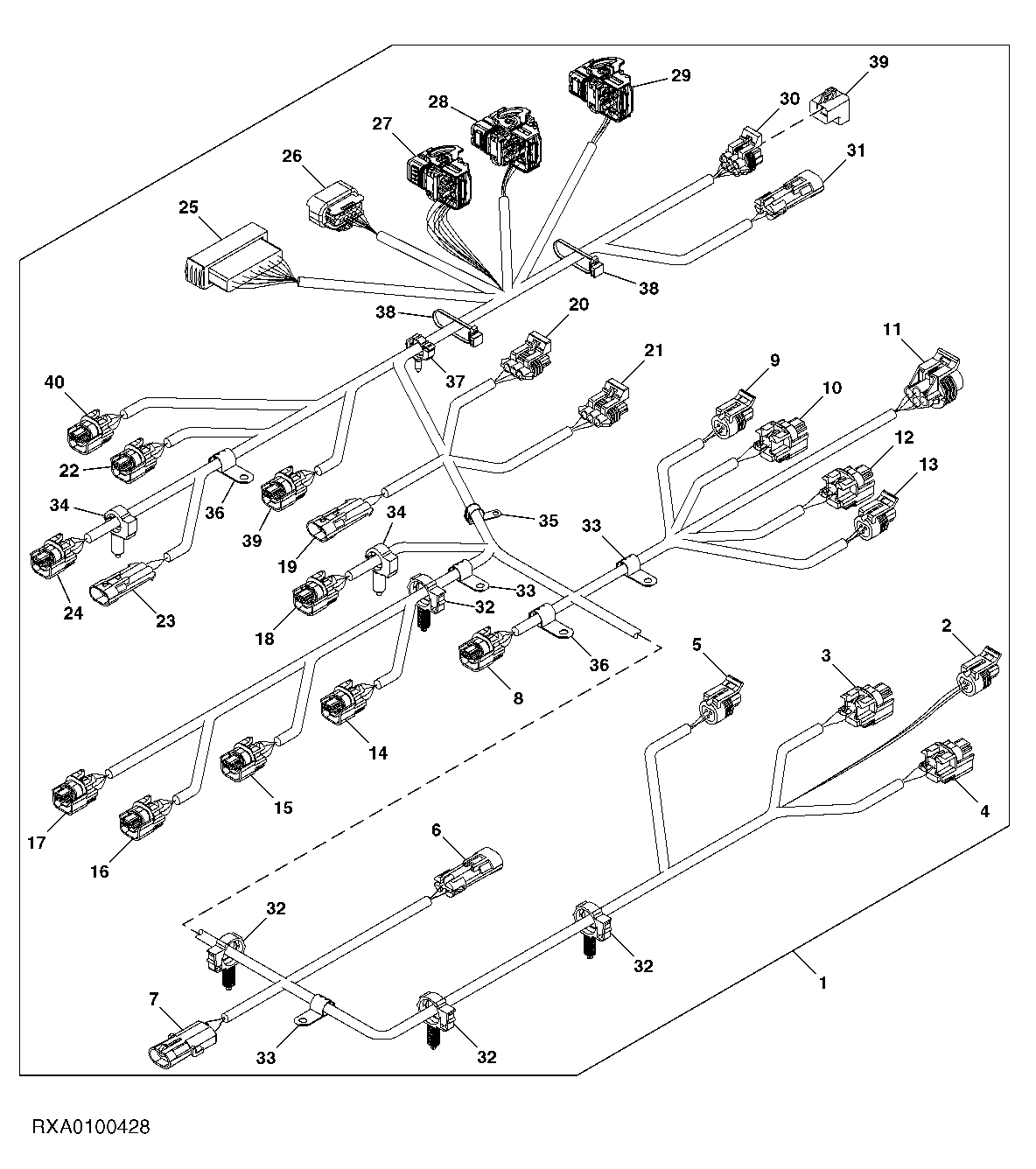

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE259365	1	Wiring Harness	-
2	57M8625	1	Elec. Connector Housing	LUBE (HYDRO) PRESSURE
2	57M8624	1	Elec.Connect Locking Device	-
3	57M8924	1	Elec. Connector Housing	HYDRO CONTROL SOLENOID
3	57M8633	1	Elec. Connector Accessory	-
4	57M8924	1	Elec. Connector Housing	HYDRO OIL TEMP
5	57M8625	1	Elec. Connector Housing	TRANS PUMP PRESSURE
5	57M8624	1	Elec.Connect Locking Device	-
6	57M7256	1	Elec. Connector Housing	HYDRAULIC PUMP FILTER REST
6	57M7289	1	Elec.Connect Locking Device	-
7	R78053	1	Electrical Connector Assy	HYDRO FIXED UNIT SPEED
8	57M8924	1	Elec. Connector Housing	CARRIER SPEED
8	57M8633	1	Elec. Connector Accessory	-
9	57M8924	1	Elec. Connector Housing	PARK SUMP BLOCK SOLENOID
9	57M8633	1	Elec. Connector Accessory	-
10	57M8924	1	Elec. Connector Housing	-
10	57M8925	1	Diode	CLUTCH ENABLE PRESSURE
11	57M7346	1	Elec. Connector Housing	MFWD SPEED SENSOR
11	57M7347	1	Elec. Connector Accessory	-
12	57M8625	1	Elec. Connector Housing	PARK BRAKE PRESSURE
13	57M8924	1	Elec. Connector Housing	PARK SUPPLY SOLENOID
14	57M8924	1	Elec. Connector Housing	HC SOLENOID
14	57M8633	1	Elec. Connector Accessory	-
15	57M8924	1	Elec. Connector Housing	LC SOLENOID
16	57M8924	1	Elec. Connector Housing	RB SOLENOID
17	57M8924	1	Elec. Connector Housing	ENABLE SOPLENOID
18	57M8924	1	Elec. Connector Housing	MFWD SOLENOID
19	57M7255	1	Elec. Connector Housing	TRAILER BRAKE
19	57M7289	1	Elec.Connect Locking Device	-
20	57M7255	1	Elec. Connector Housing	PRIMARY WHEEL SPEED
20	57M7290	1	Elec. Connector Accessory	-
21	57M7255	1	Elec. Connector Housing	SECONDARY WHEEL SPEED
22	57M8924	1	Elec. Connector Housing	REAR PTO SOLENOID
22	57M8633	1	Elec. Connector Accessory	-
23	57M7985	1	Electrical Connector Assy	REAR PTO SHAFT SELECT SWITCH
23	57M7289	1	Elec.Connect Locking Device	-
24	57M8924	1	Elec. Connector Housing	REAR PTO SPEED
24	57M8633	1	Elec. Connector Accessory	-
25	57M8944	1	Elec. Connector Housing	ENGINE HARNESS
25	57M8943	1	Elec.Connect Locking Device	-
26	57M8917	1	Elec. Connector Housing	ENGINE HARNESS
27	57M8523	1	Elec. Connector Housing	FVC CONTROLLER J3
27	57M8528	1	Electrical Connector Cap	-
28	57M8529	1	Electrical Connector Cap	-
28	57M8527	1	Elec. Connector Housing	FVC CONTROLLER J2
29	57M8522	1	Elec. Connector Housing	FVC CONTROLLER J1
29	57M8528	1	Electrical Connector Cap	-
30	57M7260	1	Elec. Connector Housing	CAN TERMINATOR OR EXTENSION
30	57M7291	1	Electrical Connector Assy	-
31	57M7256	1	Elec. Connector Housing	BACK-UP ALARM
31	57M7289	1	Elec.Connect Locking Device	-
32	57M8902	4	Clip	-
33	57M9432	3	Clamp	-
34	57M8903	2	Clip	-
35	57M8827	1	Clamp	-
36	57M9435	2	Clamp	-
37	57M9206	1	Clip	-
38	57M9229	5	Clip	-
39	RE207311	1	Electronic Control Unit	-
