Открытый узел

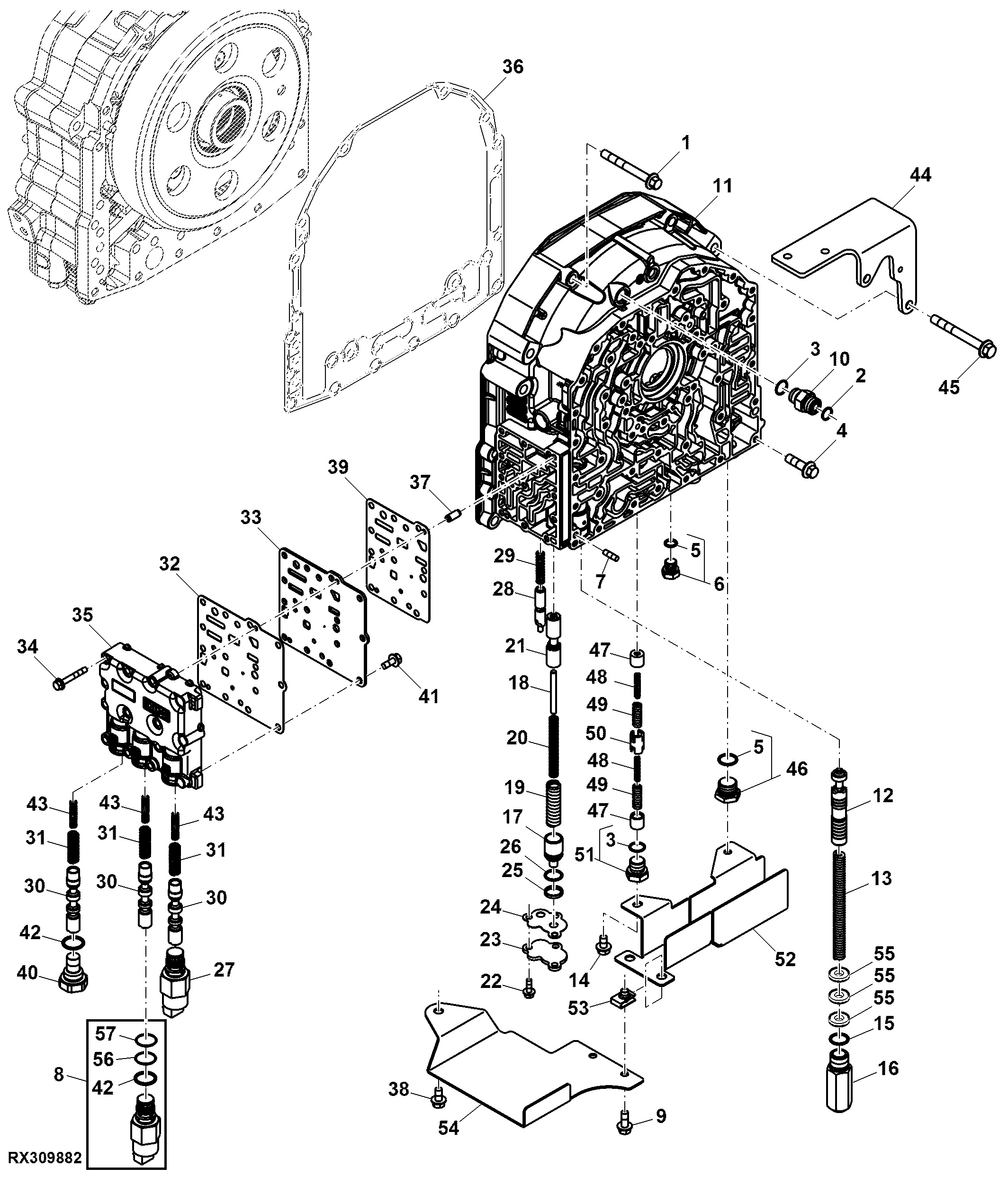

Transmission Front Cover, PowrQuad™ / AutoQuad™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R112063	3	Screw	-
2	T77857	1	O-Ring	-
3	51M7043	2	O-Ring	15.300 X 2.200 mm
4	R115141	8	Screw	-
5	51M7041	5	O-Ring	11.300 X 2.200 mm
6	RE46684	5	Fitting Plug	-
7	R38295	2	Needle Roller	-
8	RE183369	1	Solenoid Valve	-
9	19M7865	2	Screw	M8 X 16
10	38H5003	1	Adapter Fitting	-
11	R331121	1	Cover	SUB FOR R289609 OR R184046
12	R120947	1	Valve	-
13	R304025	1	Compression Spring	SUB FOR R225653ALSO ORDERRE308180
14	19M7864	3	Screw	M8 X 12
15	51M7045	1	O-Ring	19.300 X 2.200 mm
16	RE308180	1	Plug	INCLUDES 51M7045USE WITH R304025
16	RE180029	1	Fitting Plug	USE WITH R225653
17	R299265	1	Piston	SUB FOR R176199; ALSO ORDER R299262, R299263 AND R299264
18	R299264	1	Pin	SUB FOR R110257; ALSO ORDER R299262, R299263 AND R299265
19	R299262	1	Compression Spring	SUB FOR R291057; ALSO ORDER R299263, R299264 AND R299265
20	R95216	1	Compression Spring	-
20	R299263	1	Compression Spring	ALSO ORDER R299262, R299264 AND R299265
21	R252208	1	Spool Valve	-
22	19M7862	3	Screw	M6 X 20
23	R171412	1	Cover	-
24	R341955	1	Gasket	SUB FOR R171413
25	R559032	1	Seal	SUB FOR R112976
26	P48347	1	O-Ring	-
27	RE183407	1	Solenoid Valve	INCLUDES RE276475
27	RE276475	1	Repair Kit	-
28	R176198	1	Valve	-
29	R54174	1	Spring	-
30	R212401	3	Spool	-
31	R194659	3	Compression Spring	-
32	R341954	1	Gasket	Inner Gasket SUB FOR R213484
33	R213348	1	Plate	ALSO ORDER R341954 AND R341953
34	R186727	11	Screw	M6 X 45
35	R332401	1	Housing	SUB FOR R240426
36	R321236	1	Gasket	SUB FOR R202640
37	34M5028	2	Spring Pin	5 X 12 mm, SUB FOR APPL 34M7126
38	19M7864	3	Screw	M8 X 12, SUB FOR APPL 19M7865
39	R341953	1	Gasket	Outer Gasket SUB FOR R213485
40	R214778	1	Plug	-
41	19M7775	3	Screw	M6 X 16
42	T57247	2	O-Ring	-
43	R194658	3	Compression Spring	-
44	R240098	1	Bracket	-
45	19M7811	2	Screw	M10 X 90
46	RE221609	1	Drain Plug	USE WITH R224824
47	R241994	2	Spool Valve	-
48	R273530	2	Compression Spring	SUB FOR R249705 OR R265071
49	R249707	2	Compression Spring	-
50	R273498	1	Spool Valve	SUB FOR R241995
51	RE238616	1	Drain Plug	-
52	R224824	1	Shield	-
53	M84971	1	Nut	-
54	R240443	1	Shield	-
55	R86638	1	Shim	USE WITH RE308180
56	R27564	1	O-Ring	-
57	T143169	1	O-Ring	-

Transmission Front Cover, PowrQuad™ / AutoQuad™

Нет текстового описания
