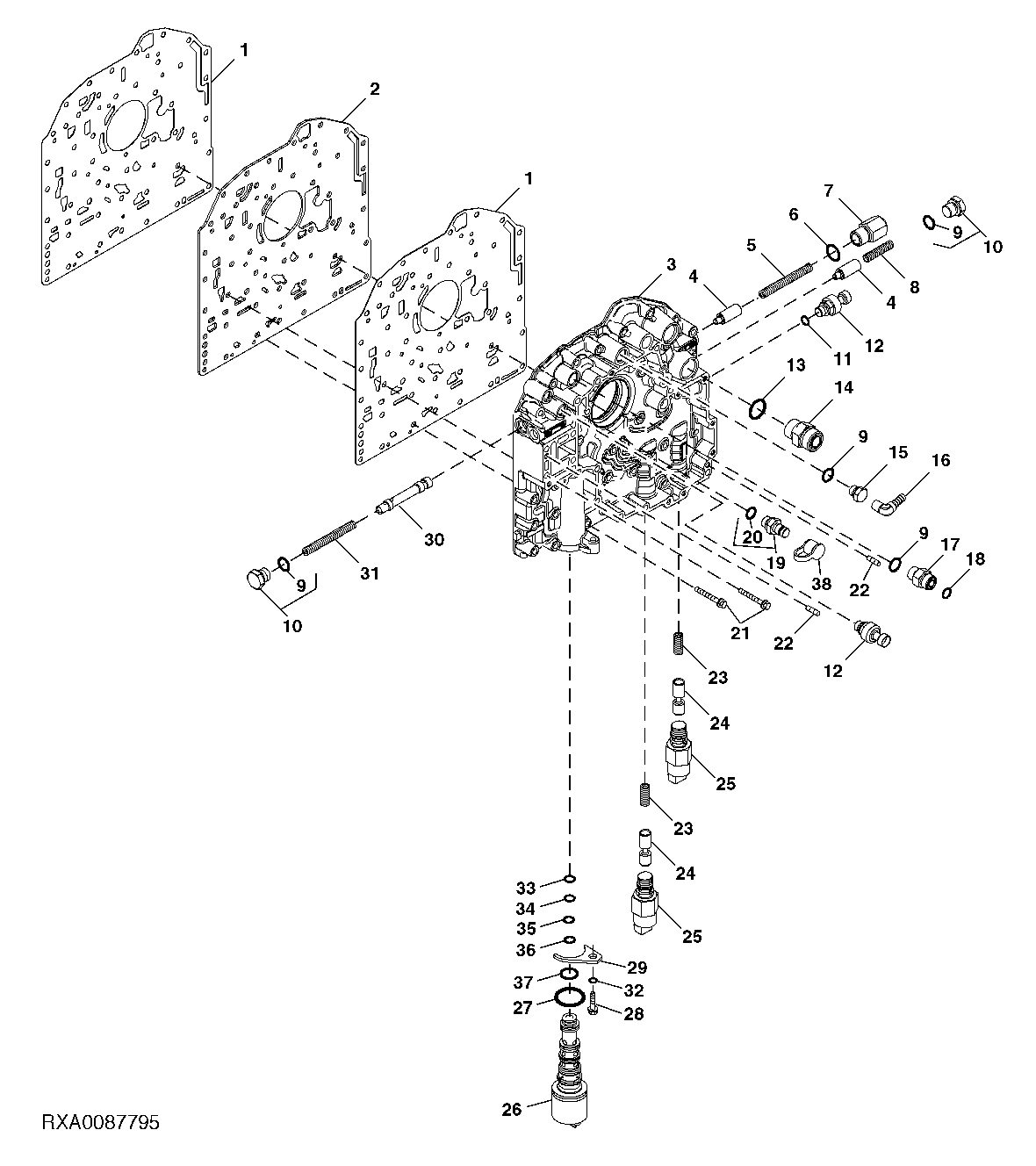

Transmission Control Valve Housing and Valves

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R336841	2	Gasket	-
1	R185106	2	Gasket	NLA; ORDER R336841
2	R185108	1	Plate	-
3	R331512	1	Housing	SUB FOR R197473
4	R95081	2	Valve	-
5	R95084	1	Spring	-
6	51M7045	2	O-Ring	19.300 X 2.200 mm
7	R95082	1	Fitting Plug	-
8	R116040	1	Spring	-
9	51M7043	4	O-Ring	15.300 X 2.200 mm
10	RE46685	2	Fitting Plug	-
11	51M7040	1	O-Ring	9.300 X 2.200 mm
12	RE217077	2	Trans Oil Pressure Sensor	INCLUDES 51M7040
13	51M7047	2	O-Ring	23.600 X 2.900 mm
14	38H5005	2	Adapter Fitting	-
15	R113419	1	Adapter Fitting	-
16	R112945	1	Elbow Fitting	-
17	R120818	1	Adapter Fitting	-
18	T77857	1	O-Ring	-
19	RE190805	1	Diagnostic Coupling	-
20	51M7041	1	O-Ring	11.300 X 2.200 mm
21	R109067	32	Screw	-
22	R38295	2	Needle Roller	-
23	R163423	2	Compression Spring	-
24	R163424	2	Valve Spool	-
25	RE183407	2	Solenoid Valve	INCLUDES RE276475
25	RE276475	2	Repair Kit	-
26	RE177539	1	Valve	INCLUDES R151701, R27928, R62070, U11326 AND R106663; ALSO ORDER U41966
27	U41966	1	O-Ring	-
28	19M7867	1	Screw	M8 X 25
29	R95045	1	Clamp	-
30	R95076	1	Valve	-
31	R95077	1	Spring	-
32	24H1864	1	Washer	13/32" X 3/4" X 7/64"
33	R151701	1	O-Ring	-
34	R27928	1	O-Ring	-
35	R62070	1	Ring	-
36	U11326	1	O-Ring	-
37	R106663	1	O-Ring	-
38	R77175	1	Cover	-

Transmission Control Valve Housing and Valves
