Открытый узел

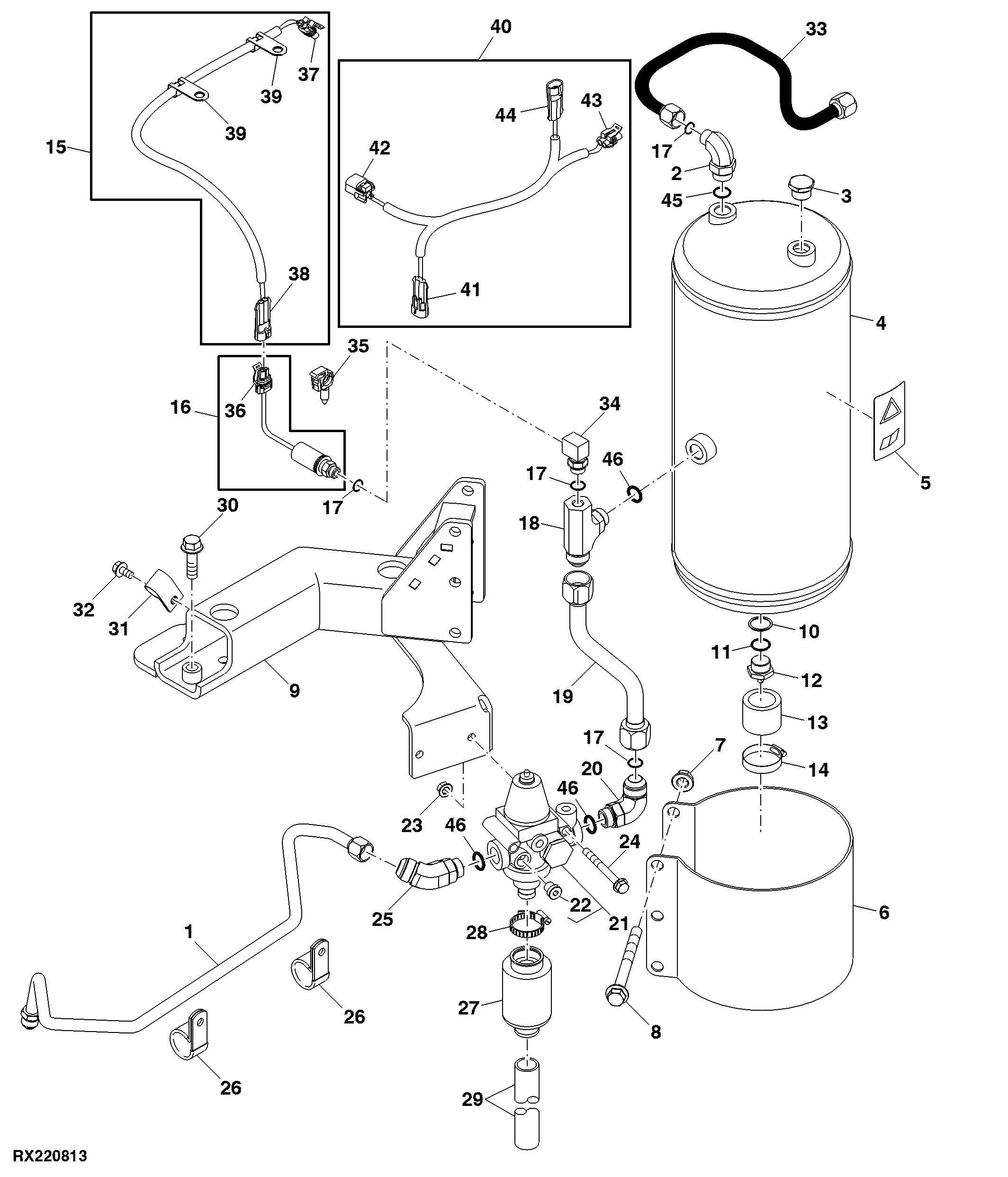

TRAILER AIR BRAKE AIR TANK

TRAILER AIR BRAKE AIR TANK

TRAILER AIR BRAKE AIR TANK

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

TRAILER AIR BRAKE AIR TANK

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE254035	1	Line	-
2	RE212396	1	Elbow Fitting	-
3	R117315	1	Fitting Plug	-
4	RE236296	1	Reservoir	-
5	L65043	1	Label	(European Version) (Russian)
6	R271286	1	Clamp	SUB FOR R192219
7	14M7299	3	Flange Nut	M12
8	19M7838	3	Screw	M12 X 130
9	RE192221	1	Support	-
10	L53827	1	Ring	SUB FOR L62893 APPL
11	L63816	1	Washer	-
12	AL68589	1	Drain Valve	-
13	R150662	1	Tube	-
14	TY22467	1	Clamp	-
15	RE251105	1	Wiring Harness	-
16	RE212869	1	Pressure Switch	-
17	51M7040	3	O-Ring	9.300 X 2.200 mm
18	RE213142	1	Tee Fitting	-
19	RE213583	1	Line	-
20	RE213180	1	Elbow Fitting	-
21	RE159802	1	Control Valve	-
22	RE159805	1	Fitting Plug	-
23	14M7298	2	Flange Nut	M8
24	19M8039	2	Screw	M8 X 80
25	RE213165	1	Elbow Fitting	-
26	R213784	2	Hose Clamp	-
27	AL111719	1	Absorber	INCLUDES AL212940
28	AL212940	1	Clamp	-
29	R150664	1	Tube	-
30	19M7791	1	Bolt	M12 X 40
31	T24959	1	Clamp	-
32	19M7865	1	Screw	M8 X 16
33	RE212330	1	Hydraulic Hose	(North American version)
33	RE212329	1	Hydraulic Hose	(European Version)
33	RE212329	1	Hydraulic Hose	(North American version)
34	RE219616	1	Elbow Fitting	-
35	H141394	1	Clip	-
36	57M7254	1	Elec. Connector Housing	-
36	57M7289	1	Elec.Connect Locking Device	-
37	57M7254	1	Elec. Connector Housing	(Chassis Harness)
37	57M7289	1	Elec.Connect Locking Device	-
38	57M7256	1	Elec. Connector Housing	(Air Brake Pressure Switch)
38	57M7289	1	Elec.Connect Locking Device	-
39	57M8903	3	Clip	-
40	RE327410	1	Wiring Harness	-
41	57M9222	1	Elec. Connector Housing	Park Supply Harness USE WITH (2) 57M8603_Seals
41	57M8633	1	Elec. Connector Accessory	-
42	57M8924	1	Elec. Connector Housing	Park Supply Solenoid USE WITH 57M8602_Pin And(2) 57M8603_Seals
42	57M8633	1	Elec. Connector Accessory	-
43	57M7254	1	Elec. Connector Housing	Trailer Brake Valve USE WITH (2) R104846_Pins And(2) 57M9215_Seals
43	57M7289	1	Elec.Connect Locking Device	-
44	57M7256	1	Elec. Connector Housing	Trailer Brake Harness USE WITH 57M7252_Pin,R104846_Pin And(2) 57M9215_Seals
44	57M7289	1	Elec.Connect Locking Device	-
45	51M7044	1	O-Ring	17.300 X 2.200 mm
46	51M7045	3	O-Ring	19.300 X 2.200 mm
