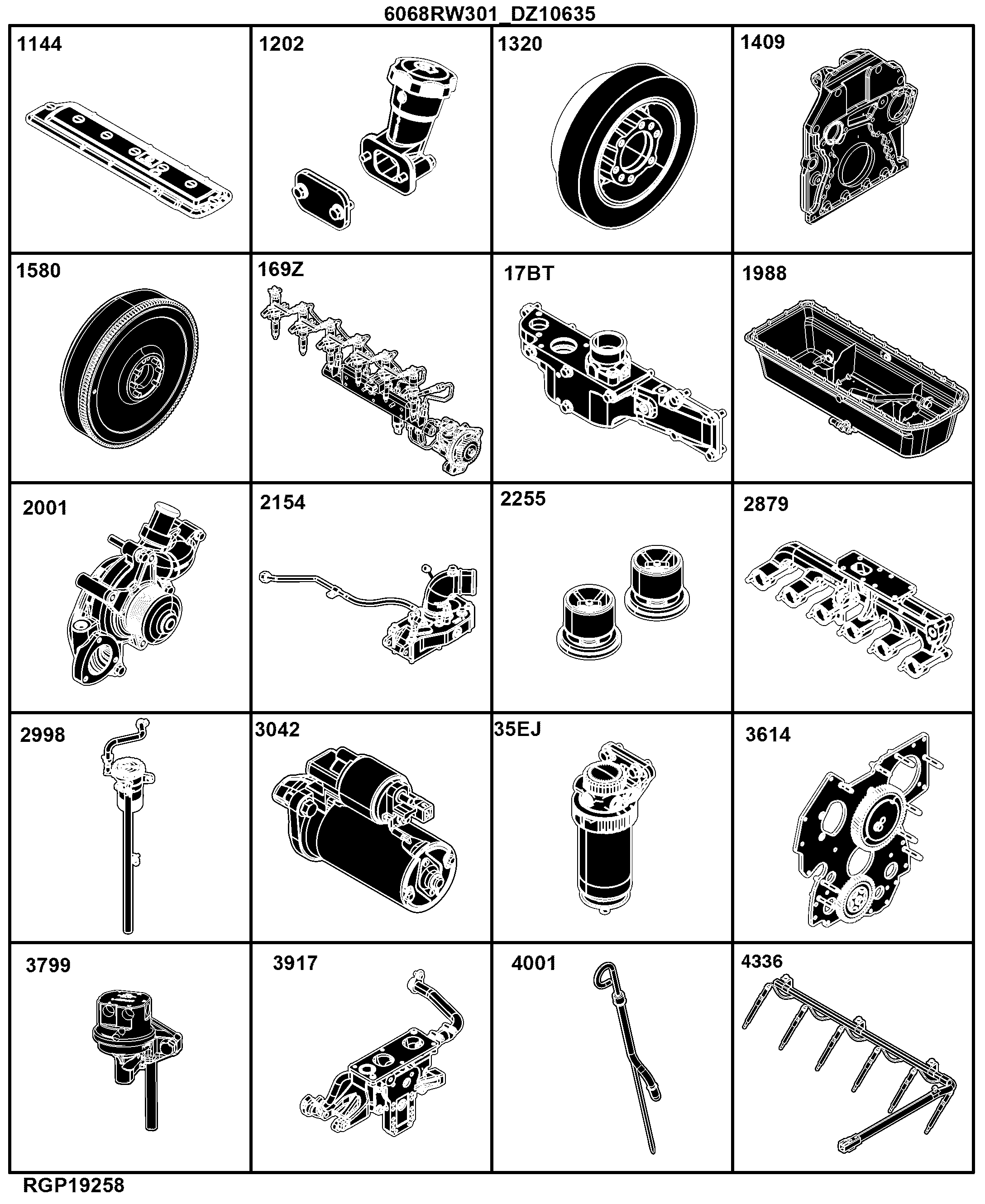

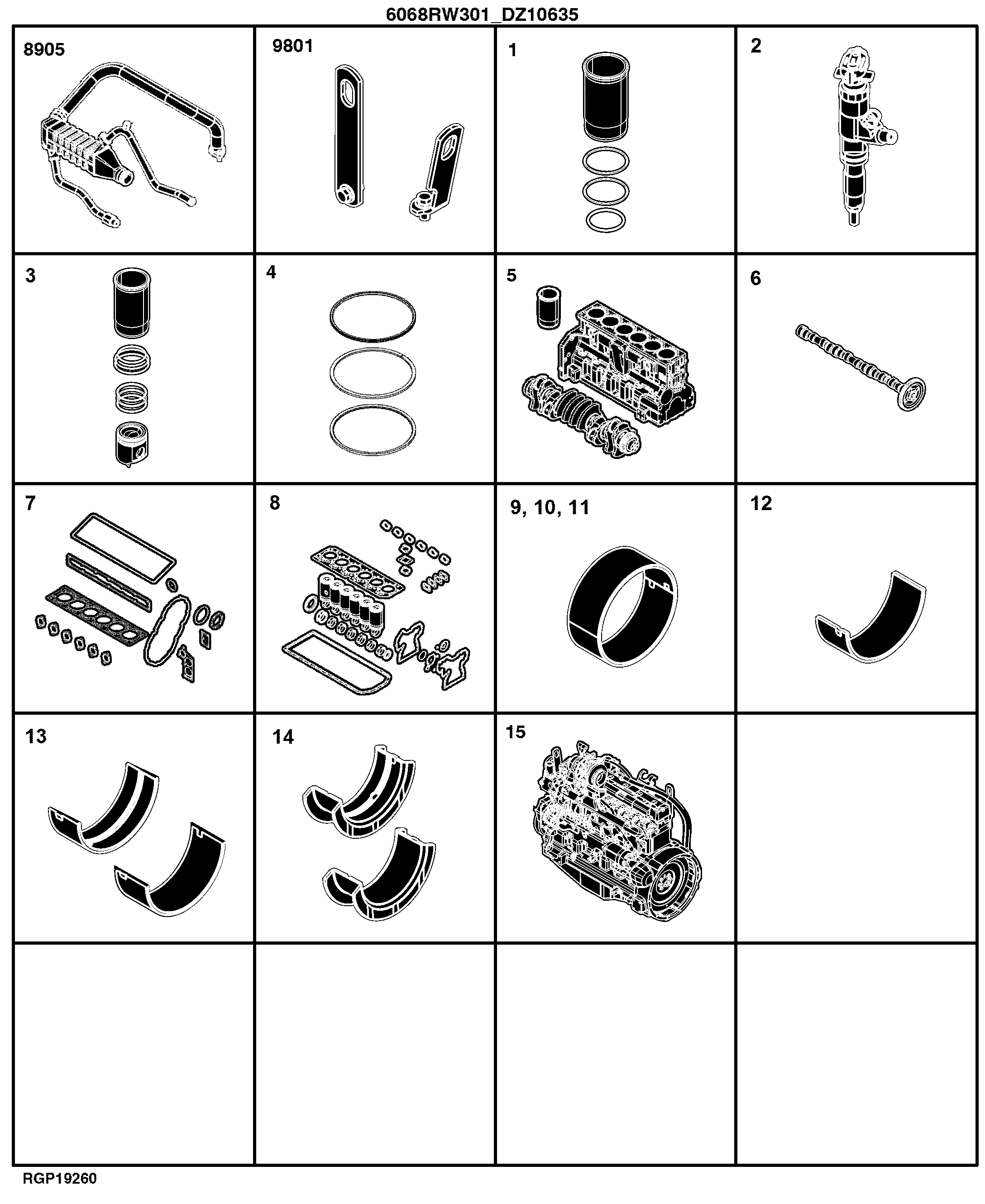

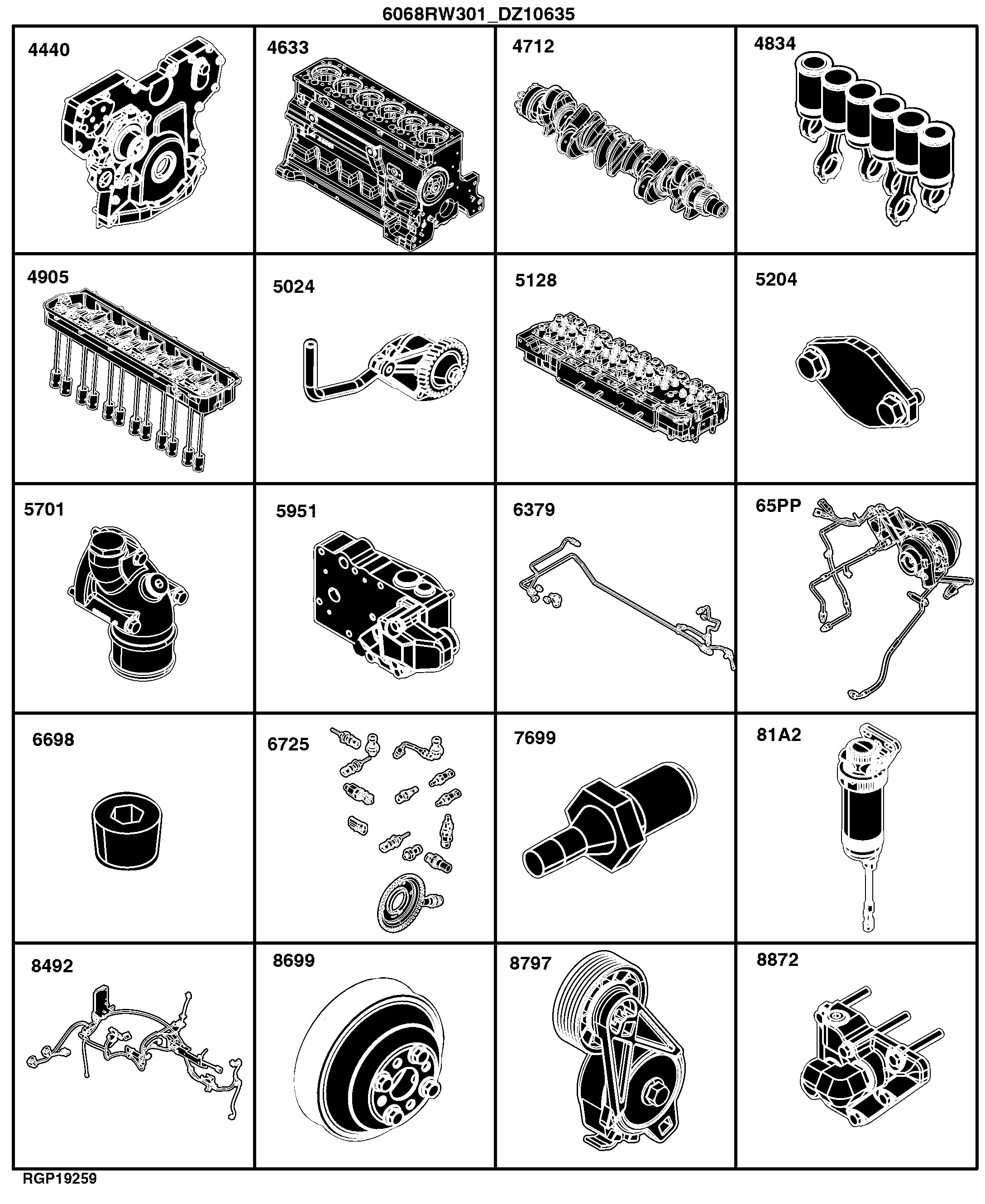

22 Engine 6068RW301-DZ10635

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	5951 Engine Oil Cooler	-
-	-	1	6297 Alternator Mounting Hardware	-
-	-	1	6379 Low Pressure Fuel Lines	-
-	-	1	65PP Turbocharger	-
-	-	1	6698 Temperature Switch Plug	-
-	-	1	6725 Engine Sensors	-
-	-	1	81A2 Primary Fuel Filter	-
-	-	1	8492 Engine Wiring Harness Hardware	-
-	-	1	8797 Belt Tensioner Hardware	-
-	-	1	8872 Engine Oil Filter	-
-	-	1	8905 Exhaust Gas Recirculation	-
-	-	1	9801 Lift Straps	-
-	-	1	9901 Camshaft And Camshaft Gear	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	5701 Water Pump Inlet	-
-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	9901 Engine Gasket Kit	-
-	-	1	9901 Engine Overhaul Kit (1/2)	-
-	-	1	9901 Engine Overhaul Kit (2/2)	-
-	-	1	9901 Injection Nozzle Kit	-
-	-	1	9901 Kit, Piston Liner	-
-	-	1	9901 O-Ring Kit, Cylinder Liner	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	35EJ Final Fuel Filter	-
-	-	1	1202 Oil Filler Neck	-
-	-	1	1320 Crankshaft Pulley	-
-	-	1	1409 Flywheel Housing	-
-	-	1	1580 Flywheel	-
-	-	1	169Z Fuel Injection System	-
-	-	1	17BT Air Intake	-
-	-	1	1988 Oil Pan	-
-	-	1	2001 Water Pump Pulley	-
-	-	1	2154 Thermostat Cover	-
-	-	1	2255 Engine Thermostat	-
-	-	1	2879 Exhaust Manifold	-
-	-	1	2998 Ventilating System	-
-	-	1	3042 Starting Motor	-
-	-	1	1144 Rocker Arm Cover	-
-	-	1	3614 Front Plate	-
-	-	1	3799 Fuel Transfer Pump, Hardware	-
-	-	1	3917 Thermostat Housing	-
-	-	1	4001 Engine Oil Dipstick	-
-	-	1	4336 Starting Aid	-
-	-	1	4440 Timing Gear Cover and Water Pump	-
-	-	1	4633 Cylinder Block	-
-	-	1	4712 Crankshaft and Bearings	-
-	-	1	4834 Connecting Rods and Pistons	-
-	-	1	4905 Valve Actuating Mechanism	-
-	-	1	5024 Engine Oil Pump	-
-	-	1	5128 Cylinder Head with Valves	-
-	-	1	5204 Auxiliary Drive Cover	-
