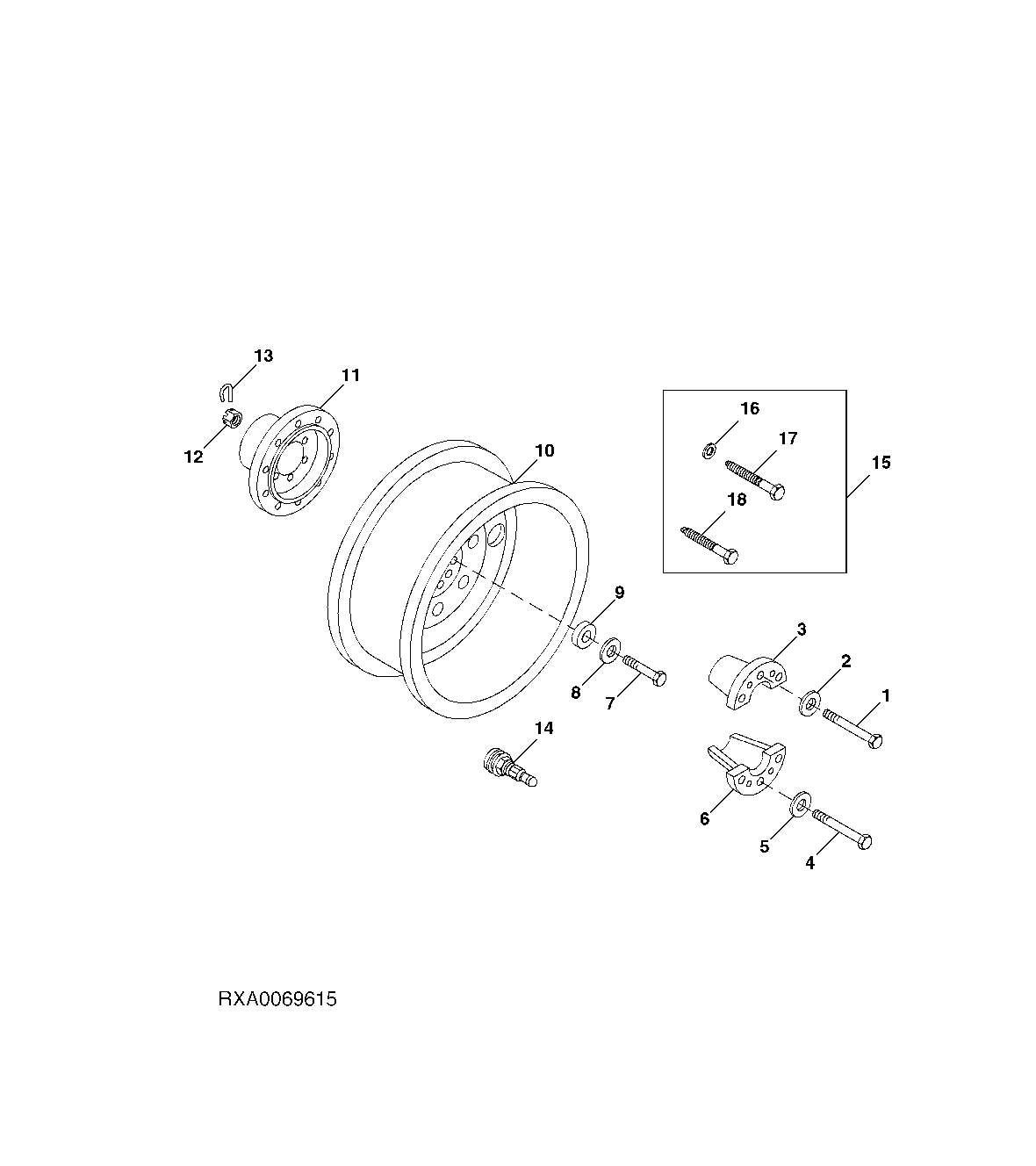

Steel Disk Wheels, Dual (100 mm Axles)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R111009	2	Cap Screw	(Center)
2	R52006	2	Washer	-
3	R124249	1	Sleeve	-
4	R109823	4	Cap Screw	-
5	R99437	4	Washer	-
6	R111103	1	Sleeve	(Key Half) (100MM)
7	R131667	10	Cap Screw	(For Tire Size) (18.4-38, 18.4-42, 18.4-46, 20.8-38) (20.8-42)
7	R111437	10	Cap Screw	(For Tire Size) HS 10.9, (710/70R38, 620/70R42)
8	R52006	10	Washer	-
9	R113692	10	Spacer	(For Tire Size) (710/70R38)(620/70R42)
10	RE214648	1	Wheel	(For Tire Size) (20.8R38)
10	RE211235	1	Wheel	(For Tire Size) (380/90R54)
10	RE223670	1	Wheel	(For Tire Size) (380/90R54)
10	RE273209	1	Wheel	(For Tire Size) (480/80R46) (50K)
10	RE214650	1	Wheel	(For Tire Size) (480/80R46) (18.4R46) (40K)
10	RE211634	1	Wheel	(For Tire Size) (18.4R42)
10	RE557609	1	Wheel	(For Tire Size) (650/85R38), SUB FOR RE191201
10	RE557607	1	Wheel	(For Tire Size) (650/65R42), SUB FOR RE191205
10	RE211631	1	Wheel	(For Tire Size) (20.8R42) (520/85R42)
11	R298758	1	Hub	(W/ Pilot) SUB FOR R127282
12	R111010	2	Nut	-
13	R125475	2	Pin	-
14	AT25226	1	Tire Valve Stem	-
14	AH86866	1	Plug	-
15	AR219841	1	Wheel Kit	-
16	R177903	36	Spring Washer	-
17	R177905	4	Cap Screw	-
18	R177904	8	Cap Screw	-

Steel Disk Wheels, Dual (100 mm Axles)

Нет текстового описания
