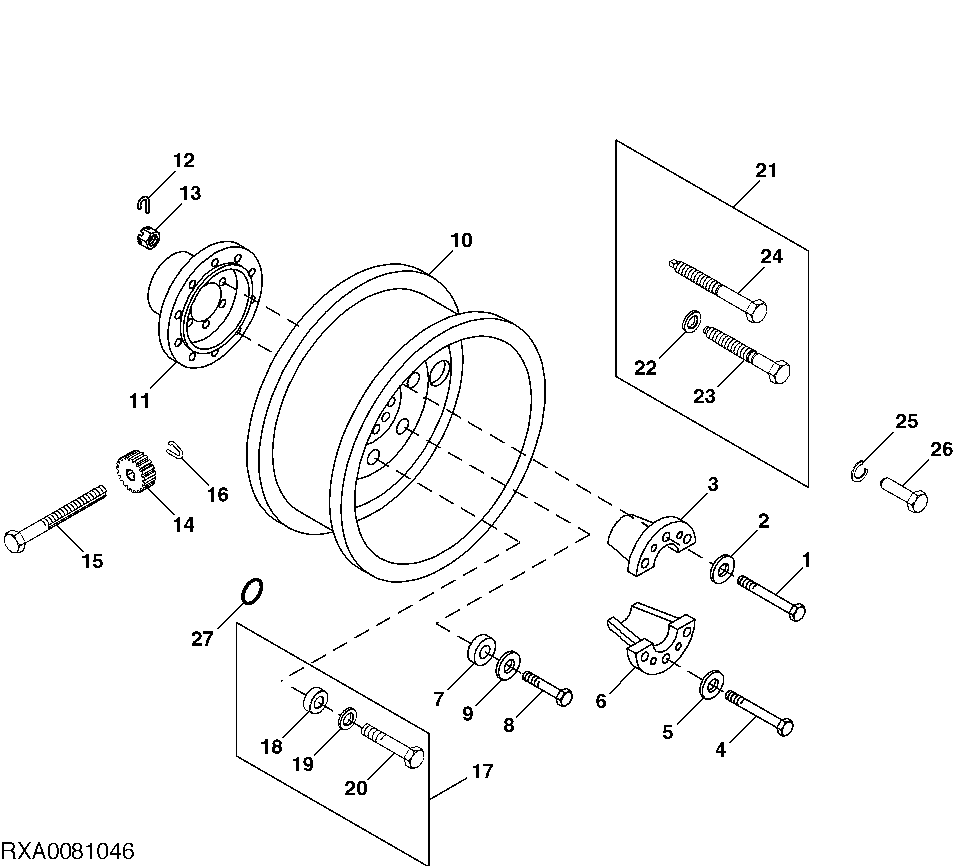

STEEL DISK REAR WHEELS (10-BOLT HUB)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R111009	2	Cap Screw	-
2	R52006	2	Washer	-
3	R124248	1	Half Sleeve	(92)
3	R124249	1	Sleeve	(100)
4	R109823	4	Cap Screw	-
5	R99437	4	Washer	-
6	R111102	1	Half Sleeve	(KEY HALF) (92)
6	R111103	1	Sleeve	(100)
7	R113692	1	Spacer	-
8	R131667	10	Cap Screw	-
8	R111437	10	Cap Screw	(FOR TIRE SIZE)
9	R52006	10	Washer	-
10	RE208559	1	Wheel	(FOR TIRE SIZE) (DRIVE POSITION) (18.4R42)(480/80R42)
10	RE208557	1	Wheel	(FOR TIRE SIZE) (DRIVE POSITION) (20.8R38)(520/85R38)
10	RE208556	1	Wheel	(FOR TIRE SIZE) (DRIVE POSITION) (20.8R42)(520/85R42)
10	RE219206	1	Wheel	(FOR TIRE SIZE) (DRIVE POSITION) (18.4R46)(480/80R46) (520/85R46)
10	RE208544	1	Wheel	(FOR TIRE SIZE) (DRIVE POSITION) (620/70R46)
10	RE557611	1	Wheel	(FOR TIRE SIZE) (DRIVE POSITION) (710/70R38)(650/85R38)(650/75R38), SUB FOR RE208543
10	RE557606	1	Wheel	(FOR TIRE SIZE) (120 MM AXLE) (800/70R38), (SUB FOR RE311097, RE208540)
10	RE557608	1	Wheel	(FOR TIRE SIZE) (DRIVE POSITION) (620/70R42)(650/65R42), SUB FOR RE208548
11	R206426	1	Hub	-
12	R125475	2	Pin	-
13	R111010	2	Nut	-
14	R124105	1	Pinion	92MM, AXLE
14	R124104	1	Pinion	100MM, AXLE
15	R207924	1	Shaft	-
16	R125475	1	Pin	-
17	AR217153	1	Wheel Kit	-
18	R113692	20	Spacer	-
19	R177903	20	Spring Washer	-
20	R213689	20	Cap Screw	-
21	AR219840	20	Wheel Kit	-
22	R177903	30	Spring Washer	-
23	R177904	8	Cap Screw	-
24	R177905	2	Cap Screw	-
25	A4883R	4	Snap Ring	-
26	R109147	4	Cap Screw	-
27	R74210	1	O-Ring	-

STEEL DISK REAR WHEELS (10-BOLT HUB)
