Открытый узел

Seat Assembly, W/ Air Suspension

Seat Assembly, W/ Air Suspension

Seat Assembly, W/ Air Suspension

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

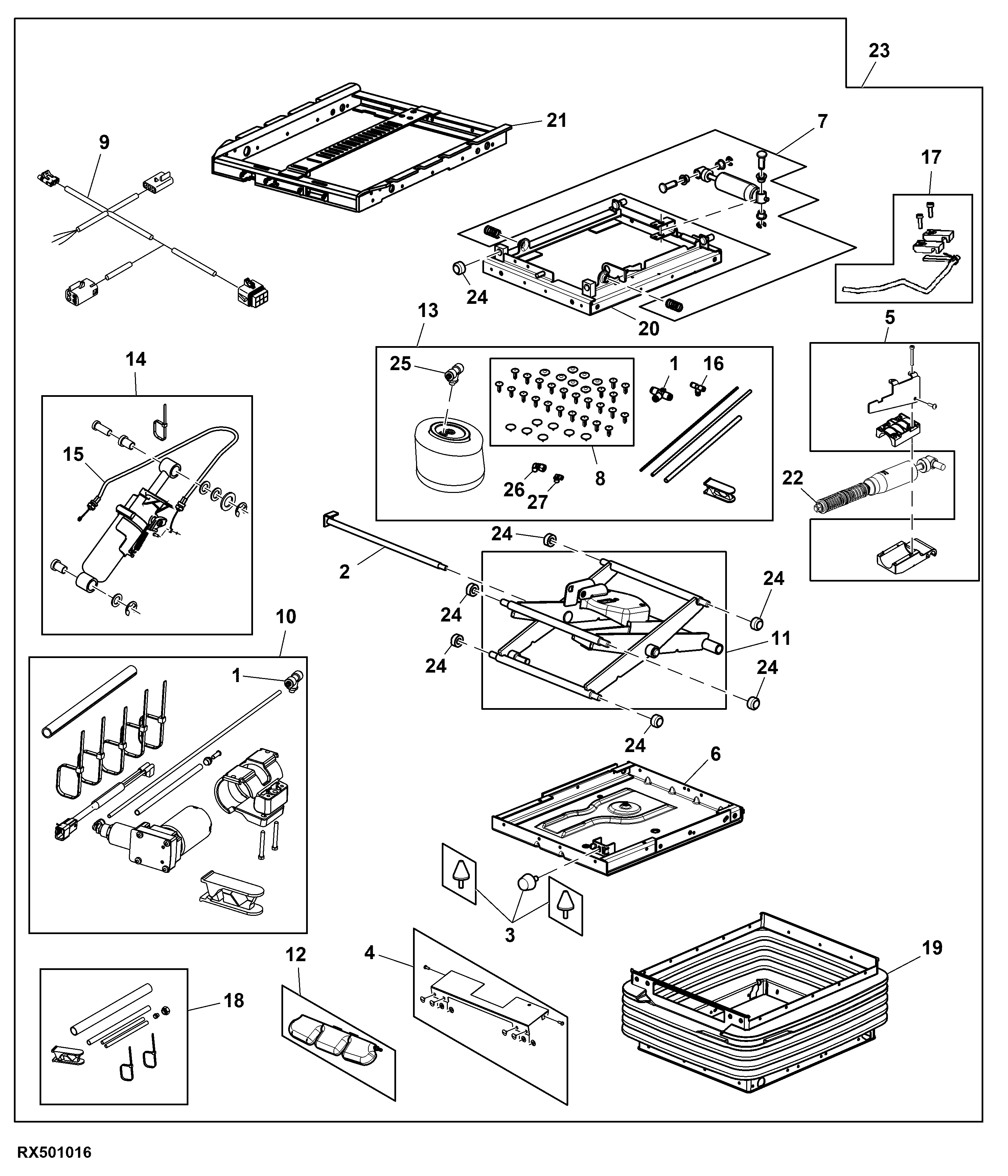

Seat Assembly, W/ Air Suspension

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE306260	2	Elbow Fitting	USE WITH RE232770
1	R331489	2	Tee Fitting	USE WITH RE225254
2	RE166328	1	Seat Kit	Retaining Shaft
3	RE188726	1	Seat Kit	Suspension Bumper
4	RE332924	1	Cover Kit	Cover Plate SUB FOR RE166332
5	RE246423	1	Block Clamp	Fore-Aft Attenuator Block USE WITH RE225254
5	RE307762	1	Seat Kit	Fore-Aft Attenuator Block SUB FOR RE243709; USE WITH RE232770
6	RE225715	1	Housing	Lower Suspension USE WITH RE225254
6	RE243701	1	Housing	Lower Suspension USE WITH RE232770
7	RE166337	1	Seat Kit	Lateral Attenuator USE WITH RE225254
7	RE307761	1	Seat Kit	Lateral Attenuator SUB FOR RE243715; USE WITH RE232770
8	RE167426	2	Seat Kit	Boot Attaching Hardware, Includes 24 Christmas Tree Clips, 7 Female Snap Rivets and 7 Male Snap Rivets
9	RE243690	1	Seat Kit	USE WITH RE232770
9	R268075	1	Wiring Harness	Not Illustrated USE WITH RE232770
9	RE225255	1	Wiring Harness	Component on Separate Page USE WITH RE225254
10	RE331262	1	Compressor Kit	Compressor W/ Bleed Solenoid INCLUDES RE331260
10	RE331260	1	Compressor Kit	Compressor W/O Bleed Solenoid
11	RE202669	1	Mounting Parts	USE WITH RE225254
11	RE243692	1	Seat Kit	USE WITH RE232770
12	RE320624	1	Seat Knob Kit	Suspension Knob SUB FOR RE188711
13	RE331277	1	Air Spring Seat Kit	-
14	RE331298	1	Seat Shock Absorber Kit	USE WITH RE225254
14	RE243696	1	Seat Kit	USE WITH RE232770
15	RE189402	1	Seat Kit	Shock Cable USE WITH RE225254
16	R331490	1	Tee Fitting	-
17	RE166340	1	Seat Kit	-
18	RE246424	1	Line	Air Line
19	R167427	1	Seat Suspension Boot Kit	USE WITH RE225254
19	RE243713	1	Seat Kit	USE WITH RE232770
20	RE224846	1	Housing	Upper Suspension USE WITH RE225254
20	RE289146	1	Housing	Upper Suspension SUB FOR RE243697; USE WITH RE232770
21	RE189405	1	Seat Kit	Lateral Isolator Frame USE WITH RE225254
21	RE188729	1	Seat Kit	Lateral Isolator Frame SUB FOR RE243918; USE WITH RE232770
22	RE188716	1	Seat Shock Absorber Kit	USE WITH RE225254
23	RE232770	1	Seat Suspension	Semi Active Seat NLA
23	RE43451	1	Toggle/Rocker Switch	Not Illustrated USE WITH RE232770
23	R268077	1	Toggle/Rocker Switch	Not Illustrated USE WITH RE232770
23	RE225257	1	Switch	Not Illustrated USE WITH RE225254
23	RE225254	1	Seat Suspension	-
24	RE320623	1	Seat Bearing Roller Kit	Isolater Roller SUB FOR RE166335 OR RE166336
25	RE250902	1	Tee Fitting	-
26	RE305670	1	Elbow Fitting	-
27	RE306260	1	Elbow Fitting	-
28	RE243700	1	Seat Kit	Not Illustrated USE WITH RE232770
29	RE243711	1	Seat Kit	Not Illustrated USE WITH RE232770
30	AT209020	1	Seat Kit	Slide Puck Not Illustrated USE WITH RE232770
