Открытый узел

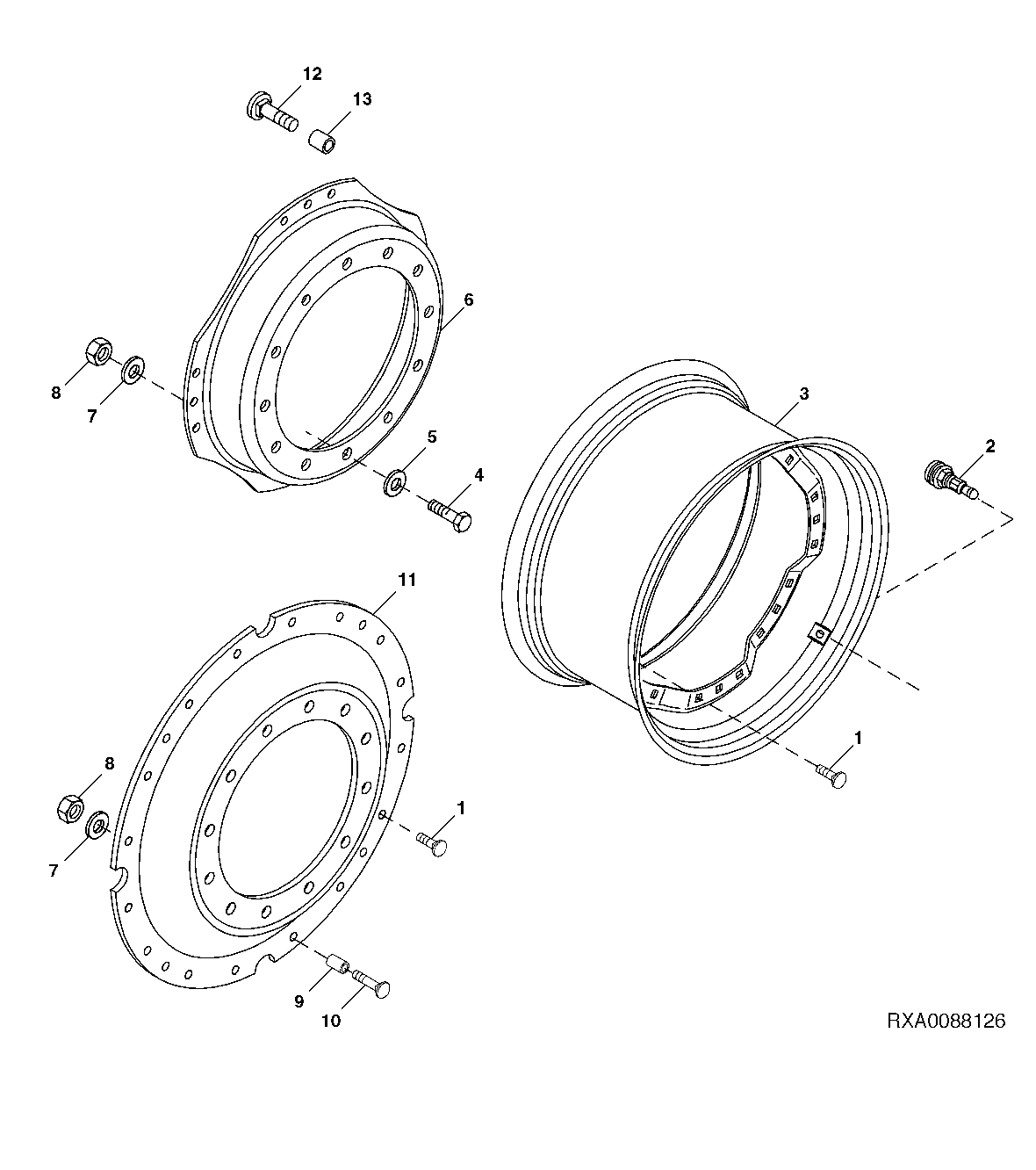

Front Wheel Assembly (MFWD) (12 Bolt) (8-Position)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R175576	12	Bolt	-
2	AT25226	1	Tire Valve Stem	-
3	RE156608	1	Wheel	(FOR TIRE SIZE) (NA &amp; REGION 3) (16.9R30)(480/70R30)(420/90R30), USE WITH R156497 OR R156498
3	RE273210	1	Wheel	(FOR TIRE SIZE) (380/85R34) (50K), USE WITH R156499
3	RE156610	1	Rim	(FOR TIRE SIZE) (14.9R34) (380/85R34) (40K), USE WITH R156499
3	RE176457	1	Wheel	(FOR TIRE SIZE) (F) (23.6R28) (600/65R28), USE WITH R156498
3	RE156606	1	Rim	(FOR TIRE SIZE) (NA &amp; REGION 3) (23.6R28) (600/65R28), USE WITH R156498
3	RE175579	1	Wheel	(FOR TIRE SIZE) (F) (16.9R30)(480/70R30)(420/90R30), USE WITH R156498
3	RE214447	1	Rim	(FOR TIRE SIZE) (F) (540/65R34) (540/75R34), USE WITH R196205
3	RE174340	1	Wheel	(FOR TIRE SIZE) (NA &amp; REGION 3) (540/65R34) (540/75R34), USE WITH R196205
3	RE166194	1	Wheel	(FOR TIRE SIZE) (420/85R34) (480/70R34), SUB FOR RE588919; ALSO ORDER R564612, (12) R187845 AND (12) R187841
3	RE324100	1	Wheel Ring	(FOR TIRE SIZE) (380/80R38), USE WITH R324373 OR R309165
3	RE156609	1	Rim	(FOR TIRE SIZE) (290/95R34) (320/85R34), USE WITH R156499
3	RE221864	1	Wheel	(FOR TIRE SIZE) (14.9R30) (380/85R30), USE WITH R156497
3	RE171004	1	Wheel	(FOR TIRE SIZE) (600/70R30) (620/75R30) (40K), USE WITH R196203
3	RE214448	1	Rim	(FOR TIRE SIZE) (F) (600/70R30) (620/75R30) (50K), USE WITH R196203
3	RE156605	1	Rim	(FOR TIRE SIZE) (16.9R28) (18.4R28) (420/84R28) (480/70R28), USE WITH R156497
4	19M8224	12	Cap Screw	M20 X 60, HS = 10.9
5	24M7242	12	Washer	21.400 X 42 X 5 mm
6	R156497	1	Wheel Center	(FOR TIRE SIZE) (101.6 MM FLANGE OFFSET) 28" & 30" (16.9R30) (420/90R30) (480/70R30) (540/65R30) (14.9R30)(380/85R30)
6	R324373	1	Wheel Center	(FOR TIRE SIZE) (DUALS) 380/80R38, USE WITH RE324100
6	R309165	1	Wheel Center	(FOR TIRE SIZE) 380/80R38, USE WITH RE324100
6	R156499	1	Wheel Center	(FOR TIRE SIZE) (101.6 MM FLANGE OFFSET) 34" (290/95R34) (320/85R34) (380/85R34) (14.9R34)
6	R156498	1	Wheel Center	(FOR TIRE SIZE) (75 MM FLANGE OFFSET) 28" & 30" (600/65R28) (16.9R30) (420/90R30) (540/65R30)
7	24M7241	20	Washer	17 X 34 X 4 mm
7	24M7241	8	Washer	17 X 34 X 4 mm, USE WITH R187845
8	14M7276	20	Nut	M16
8	14M7276	8	Nut	M16, USE WITH R187845
9	R187841	8	Spacer	USE WITH R187845
9	R187841	12	Spacer	USE WITH RE588919
10	R187845	8	Bolt	USE WITH R187841
10	R187845	12	Bolt	USE WITH RE588919
11	R196203	1	Wheel Center	(FOR TIRE SIZE) (75 MM FLANGE OFFSET) 28" & 30" (600/70R30) (620/75R30)
11	R196205	1	Wheel Center	(FOR TIRE SIZE) (75 MM FLANGE OFFSET) 34" (420/85R34) (480/70R34) (540/65R34) (540/75R34)
11	R197147	1	Wheel Center	(FOR TIRE SIZE) (101.6 MM FLANGE OFFSET) (420/85R34) (480/70R34) (12 BOLT), USE WITH RE166194
11	R564612	1	Wheel Center	(FOR TIRE SIZE) USE WITH RE588919
12	R180505	1	Bolt	(66" TREAD SETTING)
13	R115277	1	Spacer	(66" TREAD SETTING)

Front Wheel Assembly (MFWD) (12 Bolt) (8-Position)

Нет текстового описания
