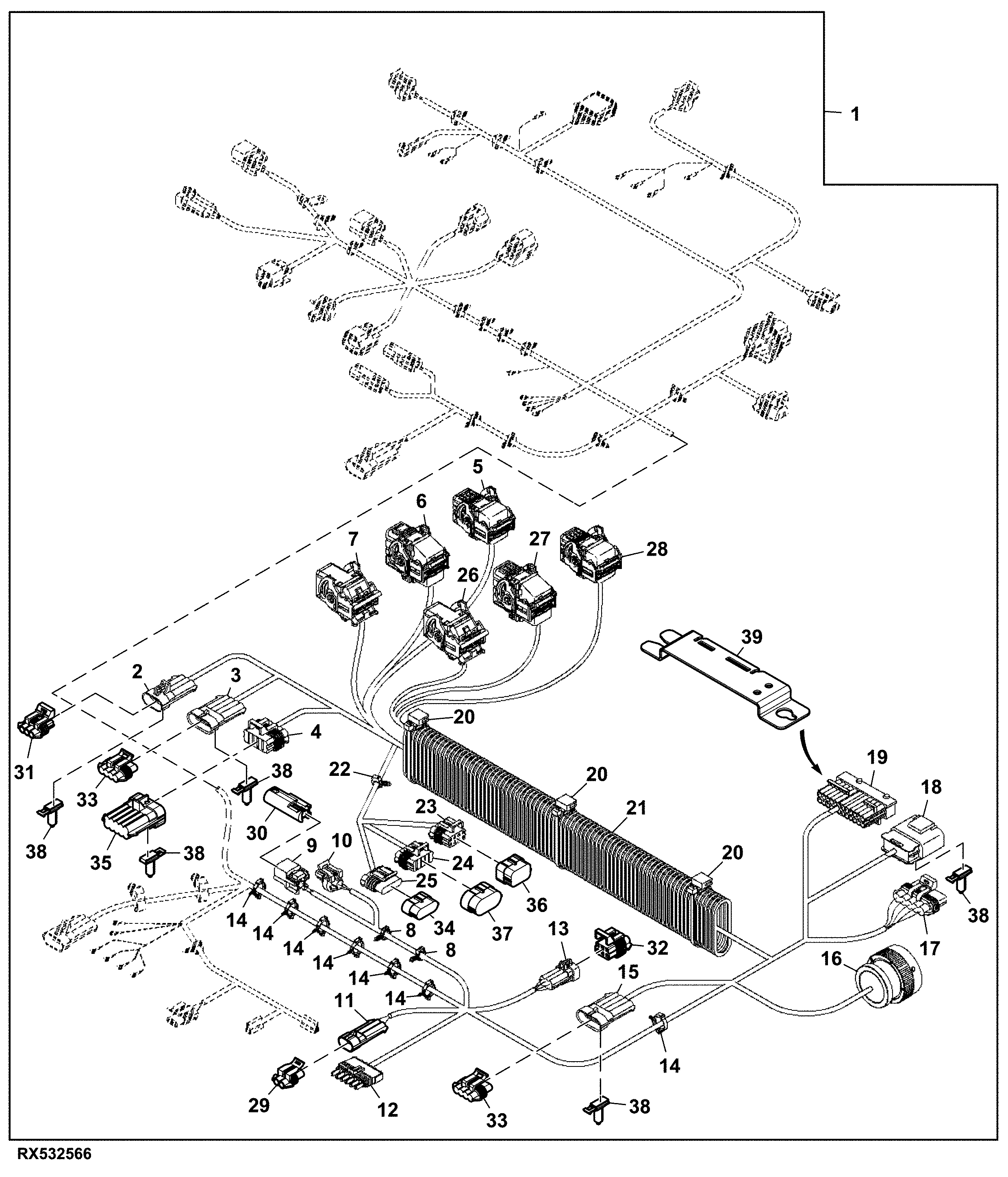

CHASSIS WIRING HARNESS CONNECTORS (2/2) (ELECTRO HYDRAULIC SCV) (W/TLS) (NON-CERTIFIED)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE261618	1	Chassis Wiring Harness	-
2	57M7257	1	Elec. Connector Housing	SCO Harness
2	57M7290	1	Elec. Connector Accessory	-
2	R104919	3	Elec. Connector Terminal	Cavity A, B, C
2	57M7258	3	Elec. Connector Seal	Cavity A, B, C
3	57M8415	1	Elec. Connector Housing	Autotrac Harness
3	57M7469	1	Electrical Connector Assy	-
3	R104919	4	Elec. Connector Terminal	Cavity A, B, C, D
3	57M7258	4	Elec. Connector Seal	Cavity A, B, C, D
4	57M7262	1	Elec. Connector Housing	Hitch Following
4	57M9215	10	Elec. Connector Seal	Cavity A, B, C, D, E, F, G, H, J, K
4	57M7494	10	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G, H, J, K
4	57M8907	1	Elec.Connect Locking Device	-
5	57M10605	1	Elec. Connector Housing	SCU J1 Connector
5	57M8528	1	Electrical Connector Cap	-
5	57M10330	16	Elec. Connector Terminal	Cavity A3, A4, B3, B4, C1, C2, C3, C4, D1, D2, D4, E1, E2, E3, E4, F1
5	57M10331	3	Elec. Connector Terminal	Cavity G3, H3, H4
6	57M10615	1	Elec. Connector Housing	SCU J2 Connector
6	57M10331	8	Elec. Connector Terminal	Cavity L1, L2, L3, L4, M1, M2, M3, M4
6	57M10330	24	Elec. Connector Terminal	Cavity A1, A4, B1, B4, C2, C3, C4, D3, D4, E3, E4, F4, G3, G4, H1, H2, H4, J1, J2, J4, K1, K2, K3, K4
6	57M8529	1	Electrical Connector Cap	-
7	57M10607	1	Elec. Connector Housing	SCU J3 Connector
7	57M8528	1	Electrical Connector Cap	-
7	57M10330	11	Elec. Connector Terminal	Cavity A1, B1, C1, D1, D3, D4, E1, E2, F1, F2, F3
7	57M10331	7	Elec. Connector Terminal	Cavity G1, G2, G3, G4, H1, H2, H3
8	57M8903	6	Clip	-
9	57M8924	1	Elec. Connector Housing	Front Brake Valve
9	57M8633	1	Elec. Connector Accessory	-
9	57M8602	1	Elec. Connector Terminal	Cavity A
9	57M8603	1	Elec. Connector Seal	Cavity A
9	57M8560	1	Elec. Connector Terminal	Cavity B
9	57M8566	1	Elec. Connector Seal	Cavity B
10	57M8624	1	Elec.Connect Locking Device	-
10	57M8603	1	Elec. Connector Seal	Cavity 3
10	57M8602	1	Elec. Connector Terminal	Cavity 3
10	57M8560	2	Elec. Connector Terminal	Cavity 1, 2
10	57M8625	1	Elec. Connector Housing	Front Brake Pressure
10	57M8566	2	Elec. Connector Seal	Cavity 1, 2
11	57M7256	1	Elec. Connector Housing	Air Brake Pressure
11	57M7289	1	Elec.Connect Locking Device	-
11	57M7495	2	Elec. Connector Terminal	Cavity A, B
11	57M9215	2	Elec. Connector Seal	Cavity A, B
12	57M9406	1	Elec. Connector Accessory	Single Point Ground Splice Pack
12	57M8326	1	Electrical Connector Assy	-
12	57M7299	1	Elec. Connector Terminal	Cavity A
12	57M9217	1	Elec. Connector Seal	Cavity A
12	57M7491	5	Elec. Connector Terminal	Cavity B, C, D, E, F
12	57M9218	5	Elec. Connector Seal	Cavity B, C, D, E, F
13	57M9215	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
13	R104919	2	Elec. Connector Terminal	Cavity C, D
13	57M7291	1	Electrical Connector Assy	-
13	57M7263	1	Elec. Connector Housing	Rear / Secondary Brake Harness
13	57M7495	4	Elec. Connector Terminal	Cavity A, B, E, F
14	57M9188	7	Clip	-
15	57M8415	1	Elec. Connector Housing	Draft Hitch Position Sensor
15	57M7469	1	Electrical Connector Assy	-
15	57M7495	4	Elec. Connector Terminal	Cavity A, B, C, D
15	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
16	57M8795	1	Elec. Connector Housing	Cab Connection
16	N282070	2	Elec. Connector Terminal	Cavity 16, 19
16	57M7546	8	Elec. Connector Terminal	Cavity 5, 7, 9, 11, 12, 13, 14, 15
16	57M8165	4	Elec. Connector Terminal	Cavity 22, 25, 26, 28
16	57M9225	6	Elec. Connector Terminal	Cavity 18, 20, 23, 24, 27, 29
16	57M8569	3	Elec. Connector Terminal	Cavity 2, 3, 4
17	57M7301	1	Elec. Connector Housing	Implement Ground
17	57M9219	4	Elec. Connector Seal	Cavity B, C, D, E
17	57M8294	4	Elec. Connector Terminal	Cavity B, C, D, E
17	57M7299	1	Elec. Connector Terminal	Cavity A
17	57M7308	1	Elec. Connector Accessory	-
17	57M9217	1	Elec. Connector Seal	Cavity A
18	57M9220	1	Elec. Connector Housing	Transmission Harness
18	57M8301	8	Elec. Connector Terminal	Cavity B, C, D, E, H, J, K, L
18	57M8321	8	Elec. Connector Terminal	Cavity B, C, D, E, H, J, K, L
18	57M8308	4	Elec. Connector Terminal	Cavity A, F, G, M
18	57M8324	4	Elec. Connector Terminal	Cavity A, F, G, M
19	57M8070	1	Elec. Connector Housing	Transmission Harness
19	57M8943	1	Elec.Connect Locking Device	-
19	57M8732	14	Elec. Connector Terminal	Cavity 1, 3, 5, 6, 7, 9, 10, 12, 13, 14, 15, 18, 19, 24
19	57M8515	14	Elec. Connector Seal	Cavity 1, 3, 5, 6, 7, 9, 10, 12, 13, 14, 15, 18, 19, 24
19	57M7399	7	Elec. Connector Seal	Cavity 2, 4, 8, 11, 17, 22, 23
20	57M9229	3	Clip	-
21	-	1	Part 82	-
22	57M8902	1	Clip	-
23	57M7261	1	Elec. Connector Housing	Hitch & SCV 1
23	57M7296	1	Elec. Connector Accessory	-
23	57M7494	8	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G, H
23	57M9215	7	Elec. Connector Seal	Cavity A, B, C, D, E, G, H
23	57M7258	1	Elec. Connector Seal	Cavity F
24	57M7262	1	Elec. Connector Housing	SCV 2 & SCV 3
24	57M8907	1	Elec.Connect Locking Device	-
24	57M7494	5	Elec. Connector Terminal	Cavity A, B, H, J, K
24	57M9215	5	Elec. Connector Seal	Cavity A, B, H, J, K
24	R104846	3	Elec. Connector Terminal	Cavity C, D, G
24	57M7258	3	Elec. Connector Seal	Cavity C, D, G
25	57M7258	1	Elec. Connector Seal	Cavity D
25	R104846	1	Elec. Connector Terminal	Cavity D
25	57M9215	3	Elec. Connector Seal	Cavity A, B, C
25	57M7469	1	Electrical Connector Assy	-
25	57M8416	1	Elec. Connector Housing	SCV4
25	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
26	57M10606	1	Elec. Connector Housing	ECU J3 Connector
26	57M8528	1	Electrical Connector Cap	-
26	57M10330	9	Elec. Connector Terminal	Cavity B1, B2, C1, C3, D2, D3, F1, F3, F4
26	57M10331	6	Elec. Connector Terminal	Cavity G1, G2, G3, G4, H3, H4
27	57M10615	1	Elec. Connector Housing	ECU J2 Connector
27	57M8529	1	Electrical Connector Cap	-
27	57M10330	8	Elec. Connector Terminal	Cavity A1, A3, B1, B2, C3, F2, H2, J4
27	57M10331	7	Elec. Connector Terminal	Cavity L1, L2, L3, L4, M1, M2, M4
28	57M10605	1	Elec. Connector Housing	ECU J1 Connector
28	57M8528	1	Electrical Connector Cap	-
28	57M10330	9	Elec. Connector Terminal	Cavity A1, A4, B1, C1, D1, D3, E1, F1, F4
28	57M10331	4	Elec. Connector Terminal	Cavity G1, G2, H1, H2
29	57M7289	1	Elec.Connect Locking Device	-
29	57M7254	1	Elec. Connector Housing	Dust Cap
30	57M9222	1	Elec. Connector Housing	Dust Cap
30	57M8633	1	Elec. Connector Accessory	-
31	57M7255	1	Elec. Connector Housing	Dust Cap
31	57M7317	1	Elec. Connector Accessory	-
32	57M7260	1	Elec. Connector Housing	Dust Cap
32	57M7291	1	Electrical Connector Assy	-
33	57M8416	2	Elec. Connector Housing	Dust Cap
33	57M7469	1	Electrical Connector Assy	-
34	L116272	1	Elec. Connector Accessory	Dust Cap
35	57M9213	1	Elec. Connector Housing	Dust Cap
35	57M8907	1	Elec.Connect Locking Device	-
36	L116273	1	Elec. Connector Accessory	Dust Cap
37	L116274	1	Elec. Connector Accessory	Dust Cap
38	57M8910	6	Clip	-
39	R249275	1	Bracket	-
