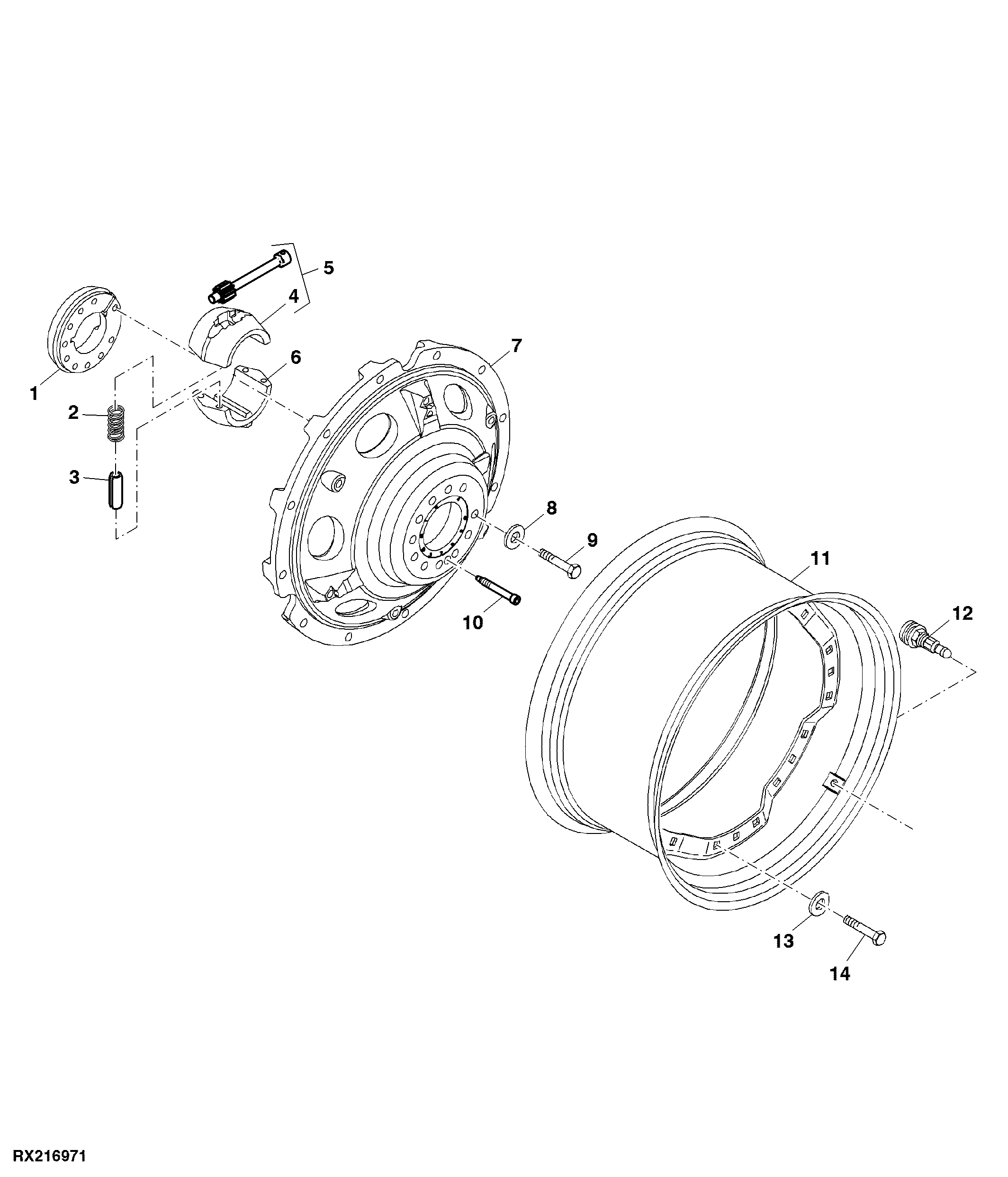

Cast Rear Wheels, RH

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R299784	1	Hub	(DUALS) (SUB FOR R192506)
1	R567134	1	Hub	12 BOLTS, SUB FOR R561560 OR R243063
1	R560248	1	Hub	(DRIVE WHEEL HUB) SUB FOR R212196
2	R51719	4	Compression Spring	-
3	34M7275	4	Spring Pin	10 X 30 mm
4	R207939	1	Half Sleeve	(92 MM AXLE) (SERVICED IN RE251592)
4	R207936	1	Half Sleeve	(100 MM AXLE) (SERVICED IN RE251591)
5	RE251592	1	Half Sleeve	(92 MM AXLE)
5	RE251591	1	Half Sleeve	(100 MM AXLE)
6	R207938	1	Half Sleeve	(92 MM AXLE) (KEY HALF)
6	R207935	1	Half Sleeve	(100 MM AXLE) (KEY HALF)
7	R560247	1	Hub	SUB FOR R304356 OR R212195
7	R567131	1	Hub	SUB FOR R561561 OR R303741 OR R243061
8	R52006	12	Washer	23.012 X 40.894 X 4.775 mm (29/32" X 1.610" X 3/16"), (USE WITH R303741 AND R243063)
8	R52006	10	Washer	23.012 X 40.894 X 4.775 mm (29/32" X 1.610" X 3/16"), (USE WITH R304356 AND R212196)
9	R111434	10	Cap Screw	M22 X 130, (USE WITH R304356 AND R212196)
9	R552105	12	Cap Screw	M22 X 140, (USE WITH R303741 AND R243063)
10	R182940	2	Cap Screw	-
11	RE175481	1	Rim And Wheel Center	(76.2 MM FLANGE OFFSET) (FOR TIRE SIZE) (480/80R42)
11	RE283141	1	Wheel	(FOR TIRE SIZE) (700/70R42) (40K)
11	RE267759	1	Rim	(FOR TIRE SIZE) (800/70R38) (40K)
11	RE273208	1	Wheel	(76.2 MM FLANGE OFFSET) (FOR TIRE SIZE) (480/80R46) (50K)
11	RE175533	1	Wheel	(76.2 MM FLANGE OFFSET) (FOR TIRE SIZE) (520/85R46) (480/80R46) (40K)
11	RE166180	1	Wheel	(76.2 MM FLANGE OFFSET) (FOR TIRE SIZE) (710/70R38), (650//85R38), (50K)
11	RE174770	1	Wheel	(76.2 MM FLANGE OFFSET) (FOR TIRE SIZE) (710/70R38)(650/85R38) (40K)
11	RE175488	1	Rim	(76.2 MM FLANGE OFFSET) (FOR TIRE SIZE) (FOR NORTH AMERICA) (710/70R42)
11	RE224262	1	Wheel	(100 MM AXLE) (76.2 MM FLANGE OFFSET) (FOR TIRE SIZE) (REGION 2 AND AUSTRALIA) (710/70R42)
11	RE175578	1	Wheel	(76.2 MM FLANGE OFFSET) (FOR TIRE SIZE) (600/65R28)
11	RE172186	1	Wheel	(76.2 MM FLANGE OFFSET) (FOR TIRE SIZE) (380/90R50)
11	RE175487	1	Wheel	(76.2 MM FLANGE OFFSET) (FOR TIRE SIZE) (620/70R42)
11	RE172185	1	Wheel	(76.2 MM FLANGE OFFSET) (FOR TIRE SIZE) (320/90R50)
11	RE175532	1	Wheel	(76.2 MM FLANGE OFFSET) (FOR TIRE SIZE) (420/80R46)
11	RE176459	1	Wheel	(76.2 MM FLANGE OFFSET) (FOR TIRE SIZE) (EUROPEAN VERSION) (580/70R42)
11	RE175484	1	Wheel	(76.2 MM FLANGE OFFSET) (FOR TIRE SIZE) (520/85R42)
11	RE174760	1	Rim And Wheel Center	(76.2 MM FLANGE OFFSET) (FOR TIRE SIZE) (520/85R38)
11	RE311098	1	Wheel	(76.2 MM FLANGE OFFSET) (FOR TIRE SIZE) (800/70R38), (SUB FOR RE171073)
11	RE174387	1	Wheel	(76.2 MM FLANGE OFFSET) (FOR TIRE SIZE) (620/70R46)
11	RE164038	1	Wheel	(76.2 MM FLANGE OFFSET) (FOR TIRE SIZE) (480/80R50)
11	RE176460	1	Wheel	(76.2 MM FLANGE OFFSET) (FOR TIRE SIZE) (650/65R42)
12	AT25226	1	Tire Valve Stem	-
12	AH86866	1	Plug	-
13	R52006	12	Washer	23.012 X 40.894 X 4.775 mm (29/32" X 1.610" X 3/16")
14	R131667	12	Cap Screw	-
