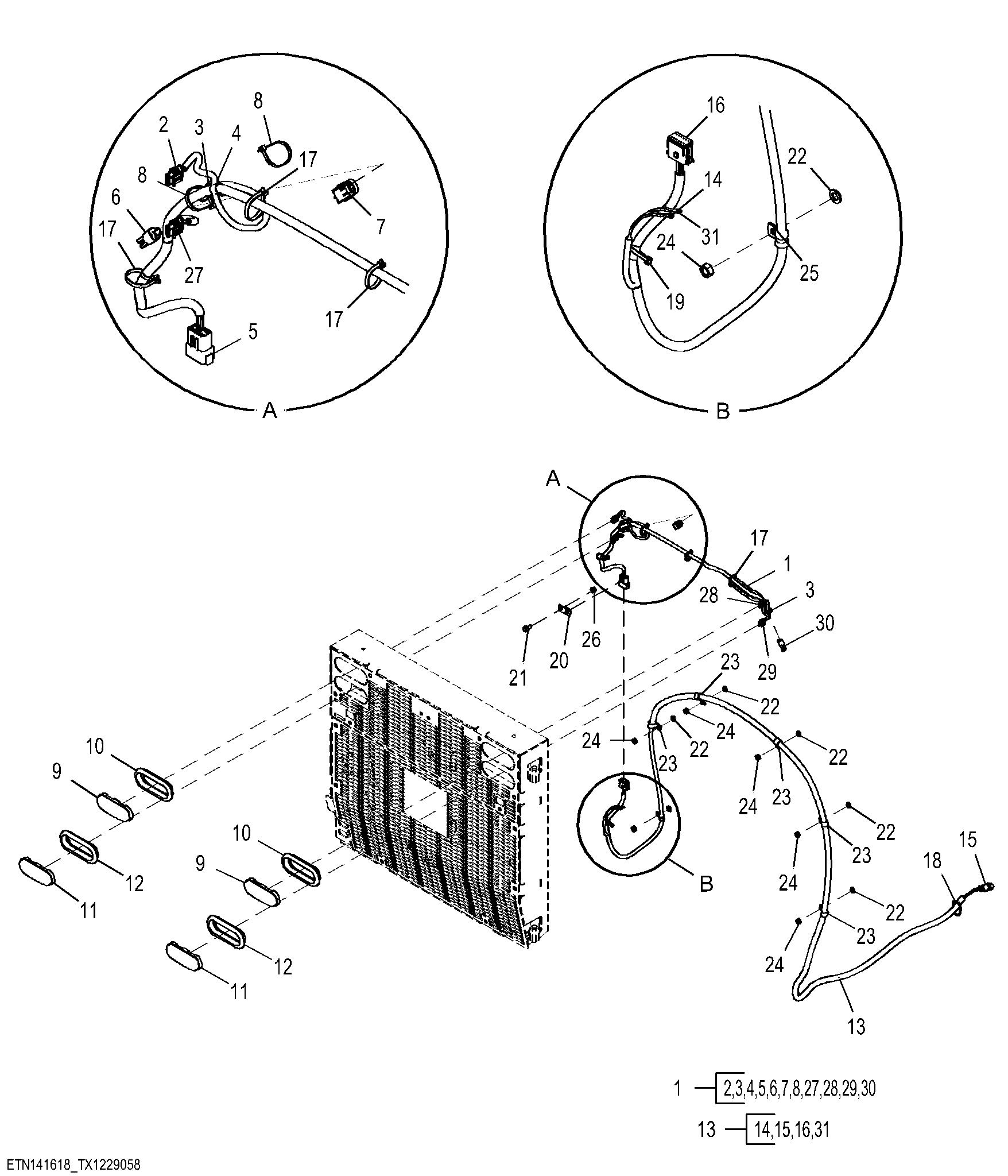

Tail Lights, LED ( - 714574)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT452926	1	Wiring Harness	Turn, Tail and Stop Light Wiring Harness
2	57M8542	1	Elec. Connector Housing	LH Rear Turn Lamp, E9
2	57M7743	1	Elec. Connector Cable Seal	-
2	57M8571	2	Elec. Connector Terminal	-
2	57M9911	1	Elec. Connector Cable Seal	-
3	57M8021	2	Electrical Connector Assy	RH Reverse Lamp, E16
3	R78065	2	Elec. Connector Terminal	-
3	57M8022	1	Elec.Connect Locking Device	-
3	57M8023	1	Elec. Connector Housing	-
3	R78069	2	Elec. Connector Cavity Plug	-
4	RE12363	1	Electrical Connector Assy	To License Plate Light, X77A
4	R78060	2	Elec. Connector Terminal	-
4	R78053	1	Electrical Connector Assy	-
4	R78064	2	Elec. Connector Cavity Plug	-
5	57M7680	1	Elec. Connector Terminal	-
5	R78069	1	Elec. Connector Cavity Plug	-
5	R78066	7	Elec. Connector Terminal	-
5	57M7631	1	Elec. Connector Housing	To Fan Door, X70B
6	57M8021	1	Electrical Connector Assy	LH Backup Light, E15
6	R78065	2	Elec. Connector Terminal	-
6	R78069	2	Elec. Connector Cavity Plug	-
6	57M8022	1	Elec.Connect Locking Device	-
6	57M8023	1	Elec. Connector Housing	-
7	R78053	1	Electrical Connector Assy	-
8	R44302	3	Tie Band	-
9	T246236	1	Turn Signal Lamp	Rear Turn
10	T246238	1	Grommet	-
11	T246237	1	Tail Lamp	Rear Turn
12	T246238	1	Grommet	-
13	AT458205	1	Wiring Harness	Fan Door Wiring Harness
14	57M11361	1	Elec. Connector Terminal	Backup Alarm, H1_2
15	R78066	8	Elec. Connector Terminal	-
15	57M7680	1	Elec. Connector Terminal	-
15	57M7631	1	Elec. Connector Housing	To Rear Platform Harness, X45B
16	57M9071	1	Elec. Connector Housing	To Turn, Tail and Stop Light Harness, X78A
16	R78065	7	Elec. Connector Terminal	-
16	R78069	5	Elec. Connector Cavity Plug	-
16	57M8009	1	Elec.Connect Locking Device	-
17	R44302	4	Tie Band	-
18	R44302	1	Tie Band	-
19	H77698	1	Tie Band	-
20	57M10650	1	Clip Kit	-
21	19M9844	1	Screw	M10 X 20
22	24M7618	6	Washer	11 X 20 X 2 mm
23	T78787	5	Clamp	-
24	14M7645	6	Nut	M10
25	T74412	1	Clamp	SUB FOR T78974
26	14M7648	1	Flange Nut	M10
27	57M8542	1	Elec. Connector Housing	LH Rear Stop and Marker Light, E11
27	57M8571	3	Elec. Connector Terminal	-
27	57M9911	3	Elec. Connector Cable Seal	-
28	57M8542	1	Elec. Connector Housing	RH Rear Stop and Marker Light, E14
28	57M8571	3	Elec. Connector Terminal	-
28	57M9911	3	Elec. Connector Cable Seal	-
29	57M8542	1	Elec. Connector Housing	RH Rear Turn Light, E12
29	57M8571	2	Elec. Connector Terminal	-
29	57M9911	2	Elec. Connector Cable Seal	-
29	57M7743	1	Elec. Connector Cable Seal	-
30	57M7533	2	Elec. Connector Housing	-
31	57M11361	1	Elec. Connector Terminal	Backup Alarm, H1_1
