Cab Trim Panels and Headliner, Low Profile Cab, Standard Controls

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T433117	1	Headliner	Roof, SUB FOR T202687
2	L102023	1	Hook	Coat Hook
3	T196077	7	Nut	-
4	21M7310	2	Screw	M6 X 25
5	T309468	1	Housing	Radio
6	24H1821	14	Washer	9/32" X 47/64" X 1/16"
7	21M7292	10	Screw	M6 X 16
8	24H1695	1	Washer	9/32" X 1-3/8" X 0.065"
9	21M7403	5	Screw	M6 X 40
10	AT307650	1	Cover	Rear Wiper
11	T202799	1	Housing	Front Wiper
12	TT101176	8	Nut	-
13	T196079	9	Nut	-
14	28H3450	2	Spacer	0.364" X 0.540" X 1/2"
15	24H1296	2	Washer	11/32" X 1-3/8" X 0.134"
16	19M7799	2	Screw	M8 X 45
17	AT305406	2	Grille	Speaker
18	37M7259	8	Screw	-
19	T148409	8	Nut	-
20	T220122	4	Plug	-
21	T340934	1	Label	Sunscreen, Rear, SUB FOR T182184
22	-	2	Part 22	MAKE FROM T59938, CTL 40 mm (1.57 in)
23	T186793	11	Label	Gray Circle
24	H173411	6	Nut	-
25	T147891	6	Bushing	-
26	AT348542	1	Bracket	RH
27	AT314363	1	Bracket	LH
28	19M7808	6	Screw	M10 X 65
29	24M7298	1	Washer	8.400 X 25 X 2 mm
30	19M8403	1	Cap Screw	M8 X 75
31	14M7298	1	Flange Nut	M8
32	AT318192	2	Storage Compartment	-
33	U43021	4	Bumper	-
34	19M7866	1	Screw	M8 X 20
35	T227075	1	Plate	-
36	19M7867	2	Screw	M8 X 25
37	-	1	Part 37	MAKE FROM T59938, CTL 530 mm (10.87 in)
38	T364577	1	Cover	Inching Pedal, SUB FOR T274837
39	T308396	1	Grommet	-
40	T254875	1	Cover	Front Console
41	H65107	1	Grommet	-
42	T196078	2	Nut	-

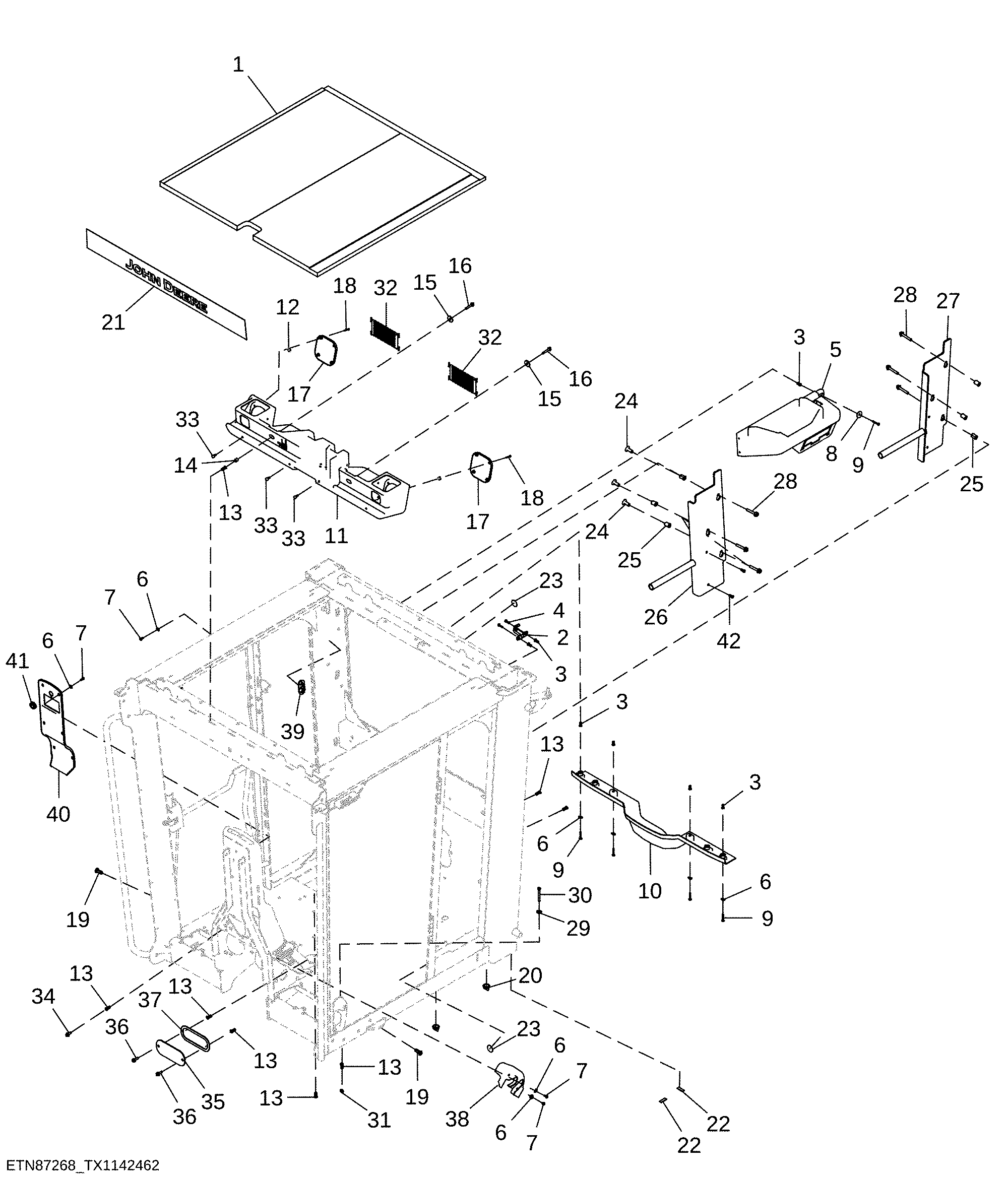

Cab Trim Panels and Headliner, Low Profile Cab, Standard Controls
