Большое обновление пильных узлов

Смотреть

Открытый узел

Multifunction Joystick To Fingertip Control Conversion Kit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT10357	1	Armrest Kit	LF WHOLE GOODS
2	AT450073	1	Control Lever	RH, ORDER AT494890
2	L174312	4	Screw	-
2	AT494890	1	Control Lever	RH, SUB FOR AT484280; INCLUDES (4) L174312
3	T358662	1	Cover	Bottom RH
4	T358661	1	Cover	Top RH
5	AT449204	1	Control	INCLUDES T357582 AND AT449217
5	T357582	1	Boot	-
5	AT449217	1	Grip	-
6	AT449205	1	Control	INCLUDES T357582
6	T357582	1	Boot	-
7	AT449206	1	Control	INCLUDES T357582
7	T357582	1	Boot	-
8	AT449208	1	Control	INCLUDES T362577
8	T362577	1	Boot	-
9	T362578	1	Boot	-
9	T362579	1	Knob	-
9	AT511207	1	Shifter	USE WITH AT494890; SUB FOR AT484282 AND AT495530
9	AT453448	1	Shifter	ORDER AT495530; INCLUDES T362578, T362579; USE WITH AT450073
10	AT106154	1	Toggle/Rocker Switch	INCLUDES (2) R44097, R44096, (3) 21H1309, (3) 12H321 AND 12H292
10	R44097	2	Nut	-
10	R44096	1	Lock Plate	-
10	21H1309	3	Screw	0.138" X 1/4"
10	12H321	3	Washer	0.138"
10	12H292	1	Lock Washer	1/2"
11	AT470908	1	Arm	RH, INCLUDES (4) 37M7237
11	37M7237	4	Screw	-
12	AT457314	1	Boot	-
13	TCU14336	4	Screw	-
14	AT470906	1	Hardware Kit	-
15	AT470915	1	Bracket Kit	-
16	AT470914	1	Bracket Kit	-
17	AT457519	1	Wiring Harness	Right Pod Harness
18	AT452946	1	Cab Wiring Harness	Right Armrest Harness
19	57M9805	1	Elec. Connector Housing	To EH Cab, X65B
19	R78066	12	Elec. Connector Terminal	-
20	57M9777	1	Elec. Connector Housing	To EH Cab, X64B
20	R78066	2	Elec. Connector Terminal	-
21	57M9575	1	Elec. Connector Housing	Auxiliary Mini-Joysticks, A26
21	57M11214	12	Elec. Connector Terminal	-
21	57M7771	12	Elec. Connector Terminal	-
22	57M9576	1	Elec.Connect Locking Device	-
23	57M8012	1	Electrical Connector Assy	Right Electrohydraulic (EH) Lever Controls (RJ1, if equipped), A11
23	57M8013	1	Elec.Connect Locking Device	-
23	R78069	2	Elec. Connector Cavity Plug	-
23	R78065	4	Elec. Connector Terminal	-
24	57M9653	1	Electrical Connector Assy	-
25	57M9658	1	Elec.Connect Locking Device	-
26	57M7677	1	Elec. Connector Terminal	-
27	AT470905	1	Hardware Kit	-
28	AT470897	1	Harness Kit	-
29	AT471429	1	Wiring Harness	Shifter Jumper Harness
30	AT494891	1	Control Lever	LH, SUB FOR AT450074; INCLUDES (4) L174312
30	L174312	4	Screw	-
31	T358660	1	Cover	Bottom LH
32	T358659	1	Cover	Top LH
33	AT449209	1	Control	INCLUDES T357582 AND AT449217
33	T357582	1	Boot	-
33	AT449217	1	Grip	-
34	AT449210	1	Control	INCLUDES T362577
34	T362577	1	Boot	-
35	AT449211	1	Control	INCLUDES T357582
35	T357582	1	Boot	-
36	AT449214	1	Control	INCLUDES T357582 AND AT449214
36	T362577	1	Boot	-
36	AT449217	1	Grip	-
37	T55501	1	Cap	Horn Switch
38	R39554	1	Switch	-
39	37M7237	4	Screw	-
39	AT457310	1	Arm	LH, INCLUDES (4) 37M7237
40	AT457352	1	Push Switch	Float
41	TCU14336	4	Screw	-
42	AT457520	1	Wiring Harness	Left Pod Harness
43	AT470906	1	Hardware Kit	-
44	AT452945	1	Cab Wiring Harness	Left Armrest Harness
45	57M9804	1	Elec. Connector Housing	To Electrohydraulic (EH) Cab Harness, X63B
45	R78066	10	Elec. Connector Terminal	-
45	R78069	2	Elec. Connector Cavity Plug	-
46	R77480	1	Electrical Connector Assy	Horn Switch, S15
46	57M9200	1	Elec. Connector Terminal	-
46	57M9199	1	Elec. Connector Terminal	-
47	57M10265	1	Elec.Connect Locking Device	Float Switch (if equipped), S46
47	57M7771	6	Elec. Connector Terminal	-
47	57M11214	6	Elec. Connector Terminal	-
48	57M8012	1	Electrical Connector Assy	Left Electrohydraulic (EH) Lever Controls (LJ1, if equipped), A10
48	R78065	4	Elec. Connector Terminal	-
48	R78069	2	Elec. Connector Cavity Plug	-
48	57M8013	1	Elec.Connect Locking Device	-
49	57M10346	1	Elec. Connector Housing	-
50	57M9130	1	Electrical Connector Assy	-
51	57M7677	1	Elec. Connector Terminal	-
52	AT470914	1	Bracket Kit	-
53	AT470905	1	Hardware Kit	-
54	AT470897	1	Harness Kit	-
55	T367046	1	Label	Joystick Functions LH
56	T371380	1	Label	Differential Lock
57	T362871	1	Label	Joystick Functions RH
58	T383784	2	Bushing	-
59	M175559	2	Push Nut	5.960 mm (0.235")
60	24M7055	2	Washer	8.400 X 16 X 1.600 mm
61	AT457380	1	Armrest	RH
62	T384287	6	Handle	-
63	24M7298	4	Washer	8.400 X 25 X 2 mm
64	T185683	2	Clip	-
65	N191985	2	Clip	-
66	19M7866	2	Screw	M8 X 20
67	57M10650	2	Clip Kit	-
68	AT457381	1	Armrest	LH

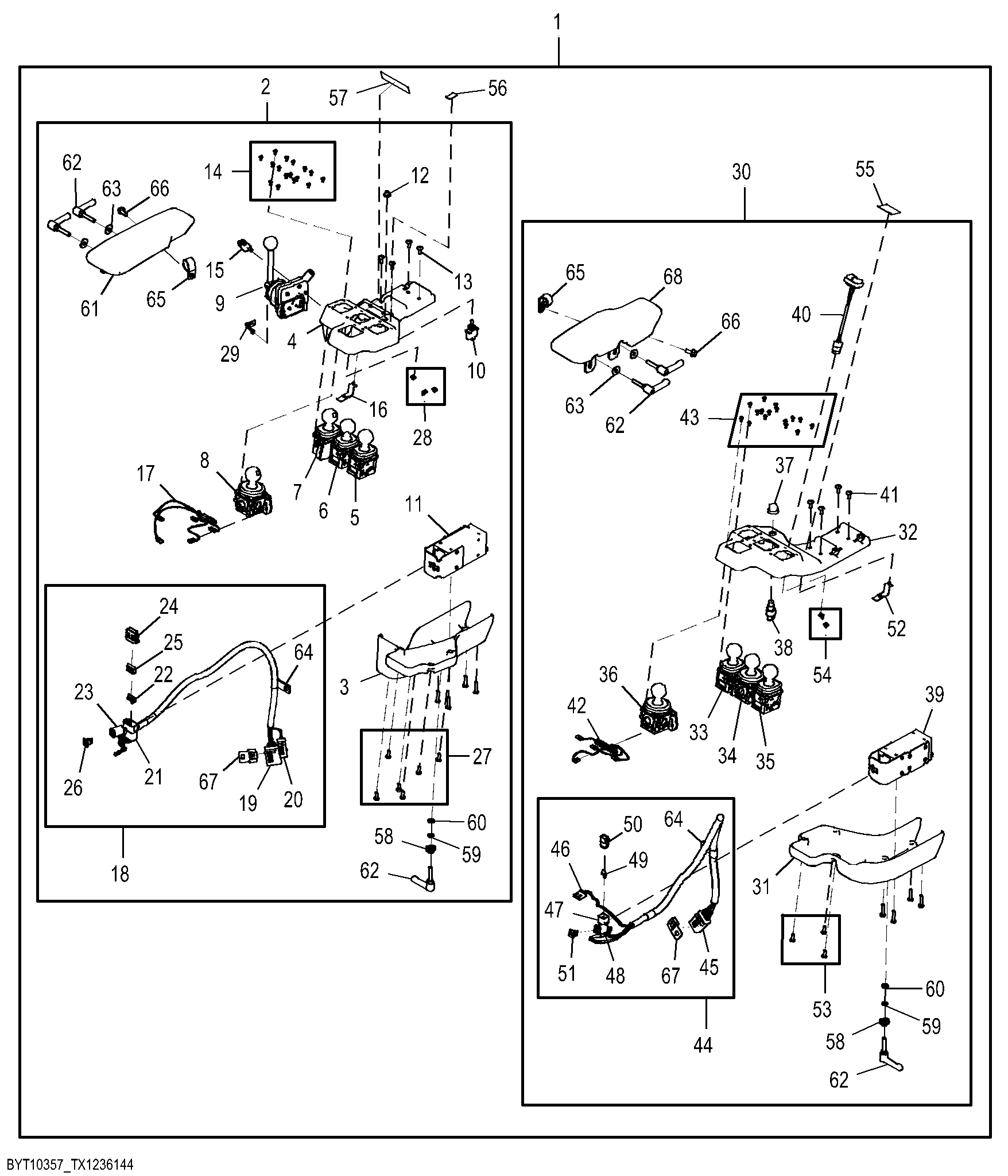

Multifunction Joystick To Fingertip Control Conversion Kit
