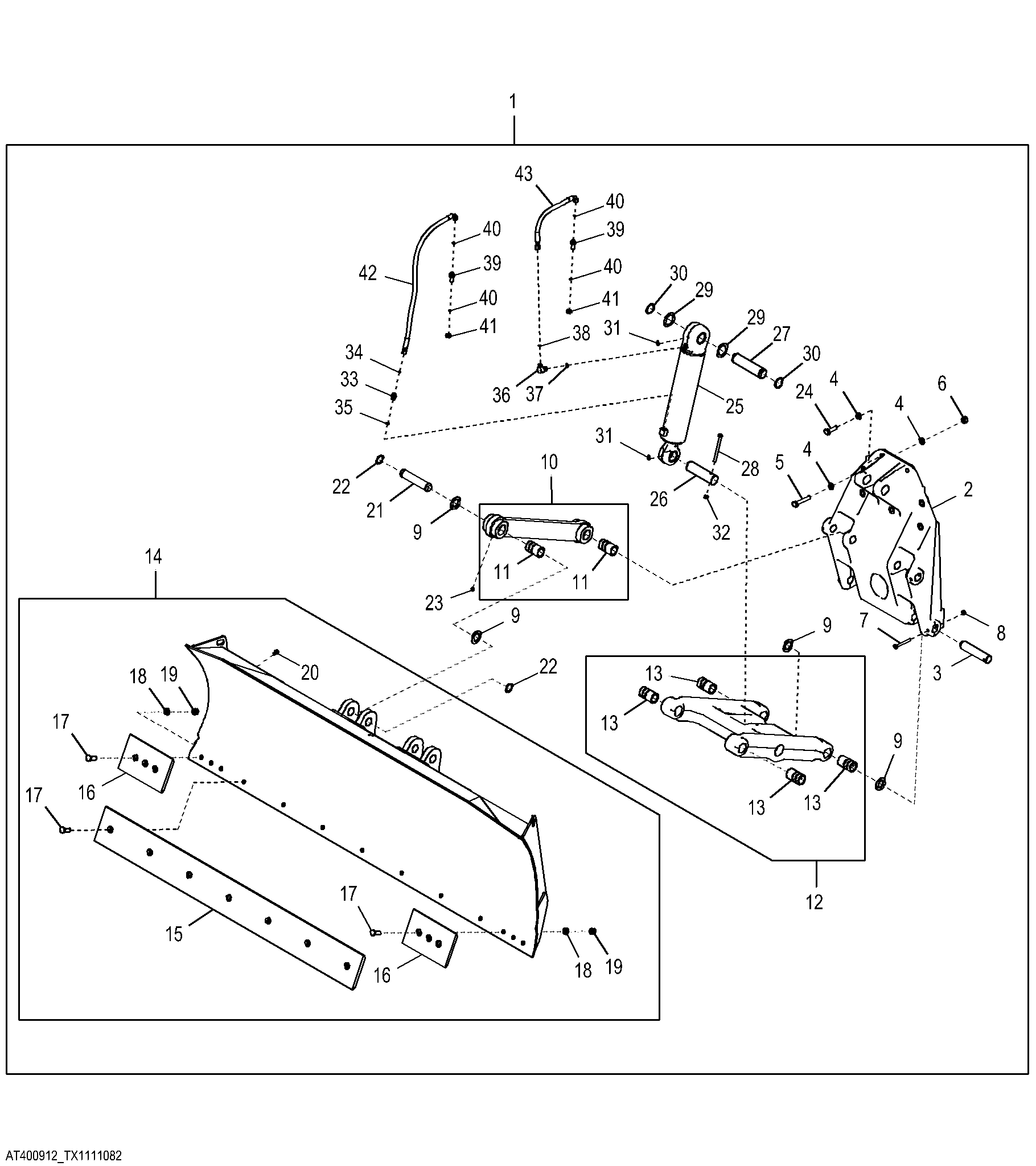

Front Mounted Dozer Blade Kit, 105 INCH

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT439952	1	Dozer Blade	CA
1	AT400912	1	Dozer Blade	CA, NLA; ORDER AT439952
2	T147700	1	Bracket	-
3	U41528	4	Pin Fastener	-
4	T83426	23	Washer	-
5	19H3196	10	Cap Screw	3/4" X 4"
6	14H1058	10	Nut	3/4"
7	19H3586	4	Cap Screw	1/2" X 4-1/4"
8	K40014	5	Lock Nut	-
9	24H1571	16	Washer	1-25/32" X 2-7/8" X 0.120"
10	AT434040	2	Link	SUB FOR AT302889
11	T216283	2	Bushing	-
12	AT162731	1	Scarifier Boom	CA
13	T216283	4	Bushing	-
14	AT400398	1	Blade	Line Fill, INCLUDES (8) U12167
15	T120980	1	Cutting Edge	-
16	T120978	2	End Bit	SUB FOR T162841
17	T70286	13	Bolt	-
18	T10510	13	Washer	-
19	14H1058	13	Nut	3/4"
20	19M7784	10	Screw	M10 X 20
21	T152047	4	Pin	-
22	U12167	8	Snap Ring	-
23	JD7781	8	Lubrication Fitting	-
24	19H2411	3	Cap Screw	3/4" X 2-1/2"
25	AH212650	1	Hydraulic Cylinder	Components Listed On Separate Page
26	T125945	1	Pin Fastener	-
27	T142485	1	Pin	-
28	19H1128	1	Cap Screw	1/2" X 6"
29	24H1679	2	Washer	2-17/64" X 3-1/4" X 0.060"
30	40M7066	2	Snap Ring	-
31	JD7799	2	Lubrication Fitting	-
32	K40014	1	Lock Nut	-
33	38H1171	1	Adapter Fitting	-
34	T77613	1	O-Ring	-
35	R26375	1	O-Ring	-
36	38H1005	1	Elbow Fitting	-
37	R26375	1	O-Ring	-
38	T77857	1	O-Ring	-
39	38H1285	2	Union Fitting	-
40	T77613	4	O-Ring	-
41	T81029	2	Nut	-
42	AT345620	1	Hydraulic Hose	-
43	AT403921	1	Hydraulic Hose	-

Front Mounted Dozer Blade Kit, 105 INCH
