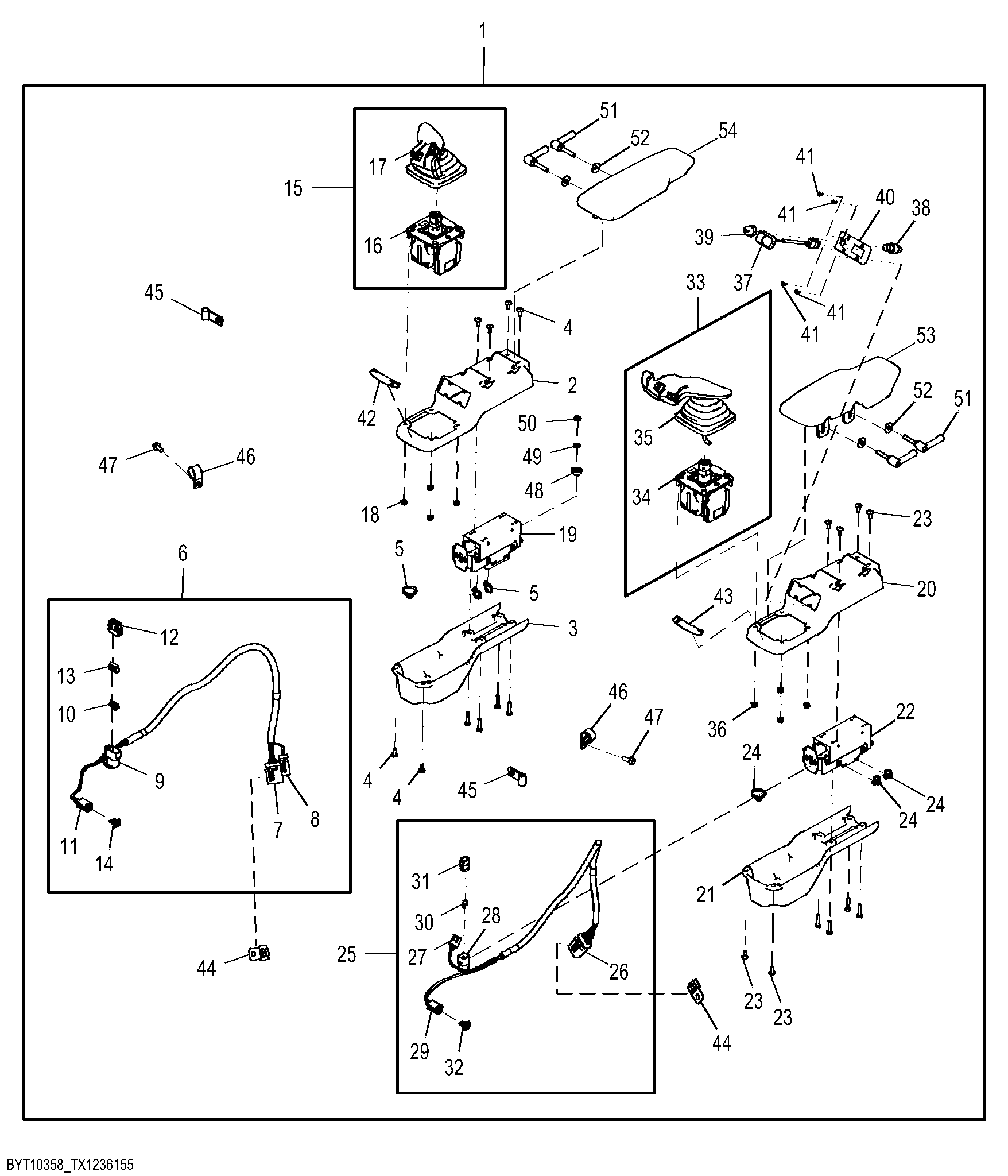

Fingertip Control To Multifunction Joystick Conversion Kit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT10358	1	Armrest Kit	WHOLE GOODS
2	T378498	1	Cover	-
3	T378509	1	Cover	-
4	TCU14336	6	Screw	-
5	H77698	3	Tie Band	-
6	AT452946	1	Cab Wiring Harness	Armrest Harness, RH
7	57M9805	1	Elec. Connector Housing	To EH Cab, X65B
7	R78066	10	Elec. Connector Terminal	-
8	57M9777	1	Elec. Connector Housing	To EH Cab, X64B
8	R78066	2	Elec. Connector Terminal	-
9	57M9575	1	Elec. Connector Housing	Auxiliary Mini-Joysticks, A26
9	57M11214	12	Elec. Connector Terminal	-
9	57M7771	12	Elec. Connector Terminal	-
10	57M9576	1	Elec.Connect Locking Device	-
11	57M8012	1	Electrical Connector Assy	Electrohydraulic (EH) Lever Controls (RJ1, if equipped), RH, A11
12	R78069	2	Elec. Connector Cavity Plug	-
12	R78065	4	Elec. Connector Terminal	-
12	57M9653	1	Electrical Connector Assy	-
13	57M9658	1	Elec.Connect Locking Device	-
14	57M8013	1	Elec.Connect Locking Device	-
15	AT448438	1	Control	Multifunction Joystick RH
16	AT448446	1	Control	Multifunction Joystick Base RH
17	AT448442	1	Control	Multifunction Joystick Boot RH
18	14M7303	4	Flange Nut	M6
19	AT470345	1	Arm	-
20	T378498	1	Cover	-
21	T378509	1	Cover	-
22	AT470345	1	Arm	-
23	TCU14336	6	Screw	-
24	H77698	3	Tie Band	-
25	AT452945	1	Cab Wiring Harness	Armrest Harness, LH
26	R78069	2	Elec. Connector Cavity Plug	-
26	57M9804	1	Elec. Connector Housing	To Electrohydraulic (EH) Cab Harness, X63B
26	R78066	10	Elec. Connector Terminal	-
27	R77480	1	Electrical Connector Assy	Horn Switch, S15
27	57M8809	2	Elec. Connector Terminal	-
28	57M10265	1	Elec.Connect Locking Device	Float Switch (if equipped), S46
28	57M11214	6	Elec. Connector Terminal	-
28	57M7771	6	Elec. Connector Terminal	-
29	57M8012	1	Electrical Connector Assy	Electrohydraulic (EH) Lever Controls (RJ1, if equipped), RH, A11
29	R78065	4	Elec. Connector Terminal	-
29	R78069	2	Elec. Connector Cavity Plug	-
30	57M10346	1	Elec. Connector Housing	-
31	57M9130	1	Electrical Connector Assy	-
32	57M8013	1	Elec.Connect Locking Device	-
33	AT448440	1	Control	Multifunction Joystick LH
34	AT448447	1	Control	Multifunction Joystick Base LH
35	AT448444	1	Control	Multifunction Joystick Boot LH
36	14M7303	4	Flange Nut	M6
37	AT457352	1	Push Switch	Float
38	R39554	1	Switch	Horn Switch
39	T55501	1	Cap	-
40	T383162	1	Cover	-
41	T245247	4	Screw	-
42	T394185X00	1	Label	Joystick Functions RH
43	T394573X00	1	Label	Joystick Functions LH
44	57M10650	2	Clip Kit	-
45	T185683	2	Clip	-
46	T27550	2	Clip	-
47	19M7866	2	Screw	M8 X 20
48	T383784	1	Bushing	-
49	M175559	1	Push Nut	-
50	24M7055	1	Washer	8.400 X 16 X 1.600 mm
51	T384287	5	Handle	-
52	24M7298	4	Washer	8.400 X 25 X 2 mm
53	AT457381	1	Armrest	LH
54	AT457380	1	Armrest	RH

Fingertip Control To Multifunction Joystick Conversion Kit
