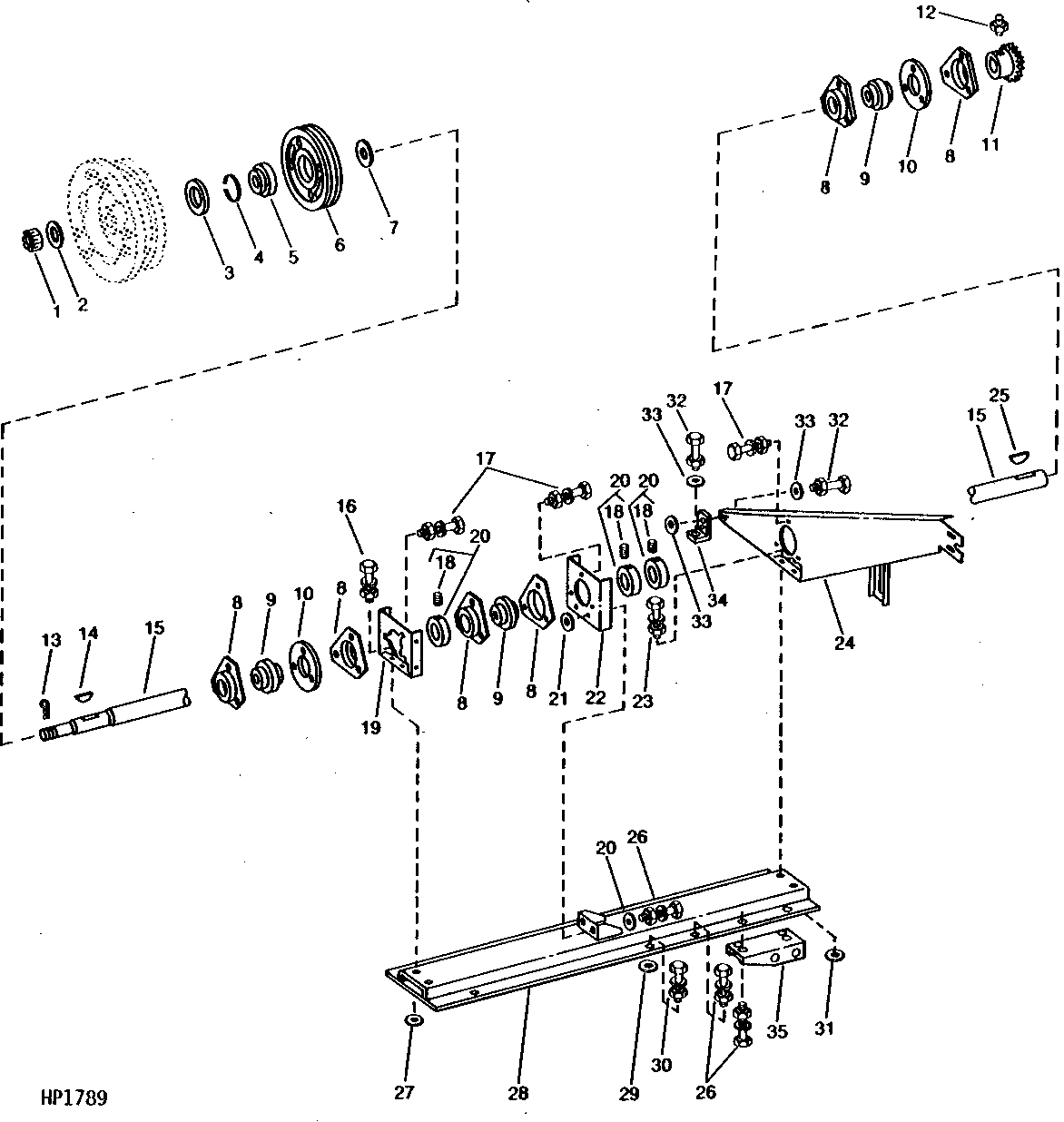

UNLOADING AUGER DRIVE COUNTERSHAFT, SHEAVE, AND DRIVE SPROCKET

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H920	1	Nut	1"
2	24H1138	1	Washer	1-1/16" X 2" X 0.134"
3	24H1548	1	Washer	1-19/32" X 2-3/16" X 0.036"
4	M3649T	1	Snap Ring	-
5	JD7163	1	Ball Bearing	-
6	H93959	1	Pulley	254 MM (10") DIA.
7	H100235	1	Locking Collar	-
8	E10018	6	Pressed Flanged Housing	-
9	JD9274	3	BALL BEARING	-
10	H87784	3	Shim	-
11	AH96703	1	Chain Sprocket	-
12	22H907	1	Set Screw	5/16" X 7/8"
12	14H611	1	Nut	5/16"
13	11H213	1	Cotter Pin	3/16" X 1-3/4"
14	26H40	1	Shaft Key	1/4" X 2-1/8"
15	H102701	1	Shaft	-
16	19H1944	2	Cap Screw	3/8" X 2-3/4"
16	12H304	2	Lock Washer	3/8"
16	14H812	2	NUT	3/8"
17	03H1500	9	Bolt	3/8" X 1"
17	12H304	9	Lock Washer	3/8"
17	14H812	9	NUT	3/8"
18	22H897	3	Set Screw	1/4" X 1/4"
19	H100236	1	Bearing Housing W/O Bearing	-
20	JD8544	3	Bearing	-
21	24H1682	4	Washer	13/32" X 7/8" X 0.120"
22	H94496	1	Bracket	-
23	12H304	2	Lock Washer	3/8"
23	14H812	2	NUT	3/8"
23	03H2133	2	Bolt	3/8" X 2-3/4"
24	AH98266	1	Brace	(SUB AH106931 WITH H108600)
24	AH106931	1	Brace	-
25	26H41	1	SHAFT KEY	5/16" X 2-1/8"
26	19H1731	3	Cap Screw	3/8" X 1"
26	12H304	3	Lock Washer	3/8"
26	14H812	3	NUT	3/8"
26	19H1731	5	Cap Screw	3/8" X 1"
26	12H304	5	Lock Washer	3/8"
26	14H812	5	NUT	3/8"
27	24H1311	1	Washer	13/32" X 1-1/4" X 0.220"
28	AH98074	1	Support	(SUB AH107098)
28	AH107098	1	Support	-
29	24H1111	4	Washer	17/32" X 1-1/16" X 0.090"
30	19H1815	4	Cap Screw	1/2" X 1-1/4"
30	12H301	4	Lock Washer	1/2"
30	14H1040	4	Nut	1/2"
31	24H1311	2	Washer	13/32" X 1-1/4" X 0.220"
32	19H1731	3	Cap Screw	3/8" X 1"
32	12H304	3	Lock Washer	3/8"
32	14H812	3	NUT	3/8"
33	24H1305	5	Washer	13/32" X 13/16" X 0.065"
34	H108600	1	Bracket	-
35	H113449	1	Channel	-
