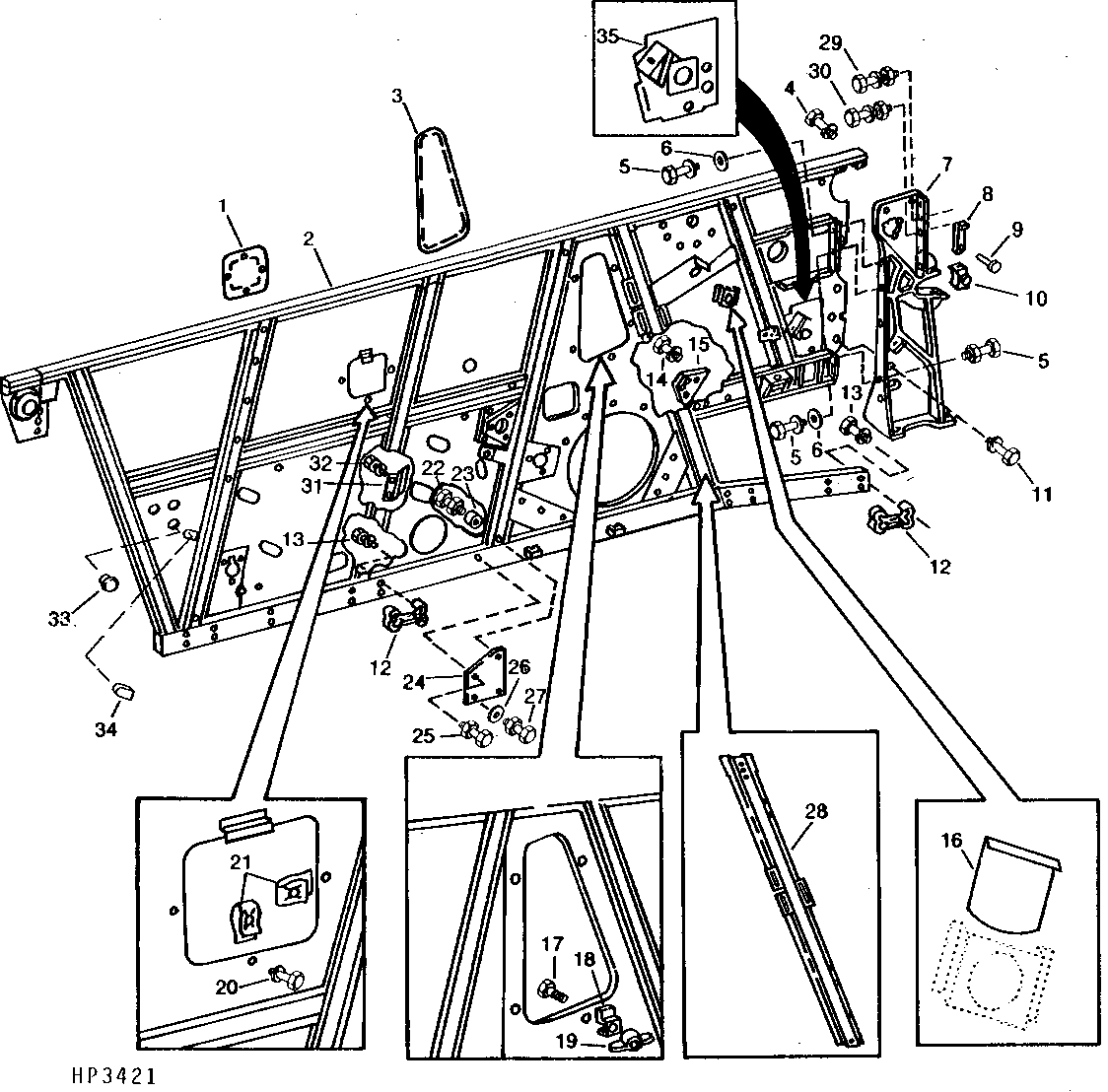

Separator Right - Hand Side Sheet And Frame

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH110685	1	Frame	(DUAL-RANGE), (SUB AH114798)
1	AH96624	1	Frame	-
1	AH129414	1	Frame	-
1	AH114890	1	Frame	(SUB AH129414)
1	AH114798	1	Frame	-
1	AH96624	1	Frame	(SINGLE-RANGE)
2	H89569	1	Door	INSPECTION
2	AH96624	1	Frame	-
3	H76271	1	Cover	INSPECTION
4	03H1499	1	Bolt	1/2" X 1-1/2"
4	12H301	1	Lock Washer	1/2"
4	14H1040	1	Nut	1/2"
5	19H1815	4	Cap Screw	1/2" X 1-1/4"
5	12H301	4	Lock Washer	1/2"
5	14H1040	4	Nut	1/2"
6	24H1111	2	Washer	17/32" X 1-1/16" X 0.090"
7	H117704	1	Post	-
7	H102566	1	Post	(SUB H117704)
7	H92437	1	Support	(SUB H102566)
8	P47415	1	Key	-
8	H102567	1	Key	-
9	19H2020	1	Cap Screw	5/16" X 1/2"
9	12H303	1	Lock Washer	5/16"
10	H10835	1	RETAINER	-
11	09H1590	3	Bolt	3/8" X 1-1/2"
11	12H304	3	Lock Washer	3/8"
11	14H812	3	NUT	3/8"
12	H83115	1	Spacer	-
13	19H1945	3	Cap Screw	1/2" X 3-1/4"
13	12H301	3	Lock Washer	1/2"
13	14H1040	3	Nut	1/2"
14	14H812	4	NUT	3/8"
14	19H1731	4	Cap Screw	3/8" X 1"
14	12H304	4	Lock Washer	3/8"
15	H82545	1	Gusset	-
16	H89544	1	Angle	INSPECTION
17	03H1540	5	Bolt	5/16" X 3/4"
18	P47159	5	Clip	-
19	14H819	5	Wing Nut	5/16"
20	19H1227	3	Cap Screw	1/4" X 1/2"
20	12H302	3	Lock Washer	1/4"
21	P41706	1	Nut	SPEED
22	19H1800	1	Cap Screw	3/8" X 1-1/2"
22	12H304	1	Lock Washer	3/8"
22	14H812	1	NUT	3/8"
23	P43454	1	Bushing	-
24	H92654	1	Plate	-
25	14H1040	1	Nut	1/2"
25	19H1868	1	CAP SCREW	1/2" X 3-3/4"
25	12H301	1	Lock Washer	1/2"
26	24H1305	2	Washer	13/32" X 13/16" X 0.065"
27	19H1732	2	Cap Screw	3/8" X 1-1/4"
27	12H304	2	Lock Washer	3/8"
27	14H812	2	NUT	3/8"
28	AH115448	1	Bracket	(ASSEMBLY)
29	14H1040	1	Nut	1/2"
29	12H301	1	Lock Washer	1/2"
29	19H1815	1	Cap Screw	1/2" X 1-1/4"
30	19H1815	1	Cap Screw	1/2" X 1-1/4"
30	03H1746	1	Bolt	1/2" X 1-1/4"
30	12H301	1	Lock Washer	1/2"
30	14H1040	1	Nut	1/2"
31	AH118212	1	Bracket	-
32	H65108	2	Screw	SELF-TAPPING
33	R52233	1	Plug	(HARVESTFLO CONVERSION ONLY)
34	H128077	1	Plug	(HARVESTFLO)
35	AH129411	1	Support	-

Separator Right - Hand Side Sheet And Frame
