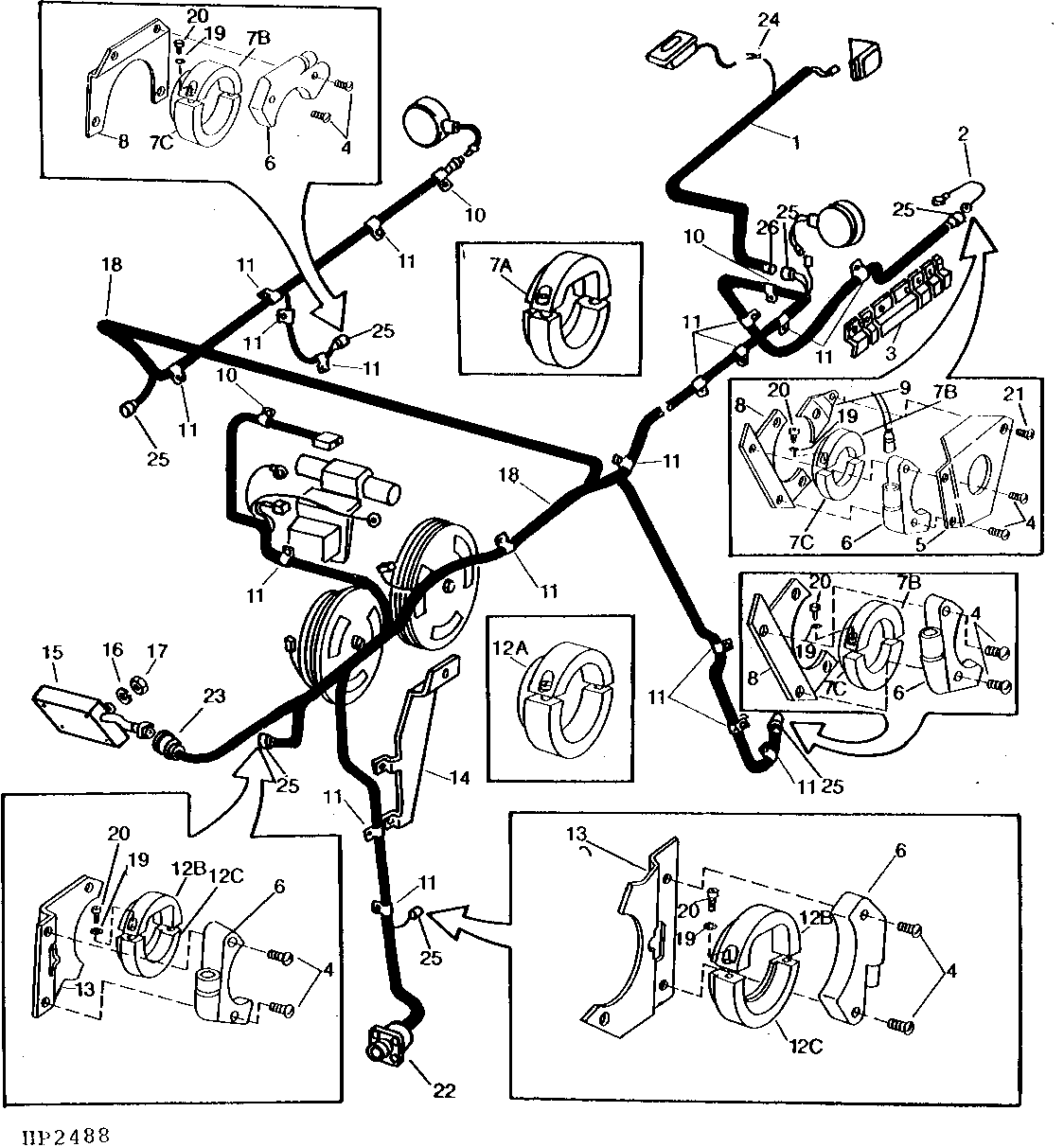

SEPARATOR MAIN HARNESS AND LOW SHAFT SPEED MONITORS ( - 600000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH96516	1	Wiring Harness	REAR HOOD (LEFT-HAND), (SUB AH118015 AND H121814)
2	AH99762	1	Wiring Harness	(USED ON MACHINES WITHOUT STRAW CHOPPER)
3	H95431	1	Shield	-
4	21H985	10	Screw	0.190" X 1"
4	21H1419	10	Screw	0.190" X 1"
5	H100913	1	Shield	(SUB H107706)
5	H107706	1	Shield	(USE WITH STRAW CHOPPER)
6	AH100011	1	REED SWITCH	(4 USED, REGULAR; 5 USED, STRAW CHOPPER), (SUB AH131320, RE12363, R78060 AND R78063)
8	AH100012	3	Bracket	(STRAW WALKER, CLEAN GRAIN ELEVATOR, AND STRAW CHOPPER)
9	H100914	1	Bracket	(USE WITH STRAW CHOPPER)
10	T32231	1	Clamp	-
11	AH89557	16	Clip	-
13	AH100013	2	Bracket	(TAILINGS ELEVATOR AND CONVEYOR AUGER)
14	H99235	1	Guard	-
15	AH99671	1	Circuit Box	LOW SHAFT SPEED MONITOR (REMANUFACTURED)
16	12H302	1	Lock Washer	1/4"
17	14H786	1	Nut	1/4"
18	AH102692	1	Wiring Harness	-
19	12H295	10	Lock Washer	0.190"
20	21H1406	10	Screw	0.190" X 3/4"
20	21H1419	10	Screw	0.190" X 1"
21	37H105	10	Screw	10 X 3/8"
21	37H153	1	Screw	0.190" X 3/8"
22	RE11156	1	Elec. Connector Terminal	(PKG. OF 3)
22	R77464	1	Elec. Connector Terminal	(PKG. OF 50)
22	H118425	1	Electrical Connector Assy	22 HOLES
23	R77465	1	Elec. Connector Terminal	(PKG. OF 50)
23	R77458	1	Elec.Connect Locking Device	-
23	H118426	1	Electrical Connector Assy	24 HOLES
24	H121814	1	Electrical Connector Assy	(NOT INCLUDED IN RE11154 KIT)
25	R70210	7	Elec. Connector Terminal	2 HOLES
25	R70222	1	Elec. Connector Terminal	(PKG. OF 20)
25	AR91793	1	Elec. Connector Terminal	(PKG. OF 20)
26	R70211	1	Electrical Connector Assy	2 HOLES
26	R70222	1	Elec. Connector Terminal	(PKG. OF 20)
26	AR91793	1	Elec. Connector Terminal	(PKG. OF 20)
7A	AH100014	3	Actuator	(STRAW WALKER, CLEAN GRAIN ELEVATOR, AND STRAW CHOPPER), (SUB H104793, H104794, 12H295 AND 21H1406)
7B	H104794	3	Actuator	HALF, TOP
7C	H104793	3	Actuator	HALF, BOTTOM
12A	AH100015	2	Actuator	(TAILINGS ELEVATOR AND CONVEYOR AUGER), (SUB H104795, H104796, 12H295 AND 21H1406)
12B	H104796	2	Actuator	HALF, TOP
12C	H104795	2	Actuator	HALF, BOTTOM

SEPARATOR MAIN HARNESS AND LOW SHAFT SPEED MONITORS ( - 600000)
