SEPARATOR MAIN HARNESS AND LOW SHAFT MONITORS (600001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR91793	2	Elec. Connector Terminal	-
1	R70210	1	Elec. Connector Terminal	-
2	U46370	2	Electrical Connector Assy	-
3	AH99762	1	Wiring Harness	-
4	R70211	1	Electrical Connector Assy	-
4	R70222	2	Elec. Connector Terminal	-
5	R70210	5	Elec. Connector Terminal	2 HOLES
5	R70222	1	Elec. Connector Terminal	(PKG. OF 20)
5	AR91793	1	Elec. Connector Terminal	(PKG. OF 2)
6	H95431	1	Shield	-
7	AH89557	1	Clip	-
8	T32231	1	Clamp	-
9	AH100012	3	Bracket	(STRAW WALKER, CLEAN GRAIN ELEVATOR AND STRAW CHOPPER)
10	21H1419	10	Screw	0.190" X 1"
11	12H295	10	Lock Washer	0.190"
12	H100914	1	Bracket	-
13	H104794	3	Actuator	HALF, TOP
14	37H153	1	Screw	0.190" X 3/8"
15	21H1419	10	Screw	0.190" X 1"
16	H107706	1	Shield	(USE WITH STRAW CHOPPER)
17	AH100011	1	REED SWITCH	(SUB AH131320, RE12363, R78060 AND R78063) (4 USED REGULAR, 5 USED STRAW CHOPPER)
18	H104793	3	Actuator	HALF, BOTTOM
19	AH100013	2	Bracket	(TAILING ELEVATOR AND CONCAVE AUGER)
20	H104796	2	Actuator	HALF, TOP
21	H104795	2	Actuator	HALF, BOTTOM
22	R77456	1	Elec. Connector Terminal	37 HOLES
22	R77464	1	Elec. Connector Terminal	(PKG. OF 50)
23	H99235	1	Guard	-
24	R77465	1	Elec. Connector Terminal	(PKG. OF 50)
24	H118426	1	Electrical Connector Assy	24 HOLES
24	R77458	1	Elec.Connect Locking Device	-
25	AH99671	1	Circuit Box	LOW SHAFT SPEED MONITOR (REMANUFACTURED)
25	TY6662	1	Sensor	LOW SHAFT SPEED MONITOR (REMANUFACTURED)
25	R77462	1	Elec. Connector Terminal	-
25	R77464	1	Elec. Connector Terminal	-
26	12H302	1	Lock Washer	1/4"
27	14H786	1	Nut	1/4"
28	H118422	1	Elec. Connector Terminal	9 HOLES
28	R77460	1	Elec.Connect Locking Device	-
28	R77465	1	Elec. Connector Terminal	(PKG. OF 50)
29	R76873	1	Elec. Connector Terminal	9 HOLES
29	R77464	1	Elec. Connector Terminal	(PKG. OF 50)
30	R65600	2	Elec. Connector Terminal	FEMALE, 14-16 GA.
31	RE11156	1	Elec. Connector Terminal	(PKG. OF 3)
31	H118428	1	Electrical Connector Assy	7 HOLES
32	M43835	2	Electrical Connector Assy	(14-16 GA.WIRE)
33	R32018	2	Elec. Connector Terminal	(14-16 GA. WIRE)
34	AH112739	1	Wiring Harness	(SUB AH120386)
34	AH120386	1	Wiring Harness	-
35	H118417	1	Quick Lock Pin	(16 GA.- 2 WIRE), (SUB Z40862)
35	Z40862	1	ELEC. CONNECTOR HOUSING	-
36	R70210	1	Elec. Connector Terminal	2 HOLES
36	R70222	1	Elec. Connector Terminal	(PKG. OF 20)
36	AR91793	2	Elec. Connector Terminal	(PKG. OF 20)
37	AH118015	1	Wiring Harness	(USE WITH (1) UNIT 40 MM (1-37/64") LONG OF R77502 FROM RE11154 KIT AND (1) H121814)
38	H121814	1	Electrical Connector Assy	(NOT INCLUDED IN RE11154 KIT)
39	AH131320	1	Switch	(4 USED REGULAR; 5 USED STRAW CHOPPER)
40	RE12363	1	Electrical Connector Assy	(4 USED REGULAR; 5 USED STRAW CHOPPER)
41	R78060	1	Elec. Connector Terminal	(8 USED REGULAR; 10 USED STRAW CHOPPER)
42	R78063	1	Elec. Connector Seal	(8 USED REGULAR; 10 USED STRAW CHOPPER)

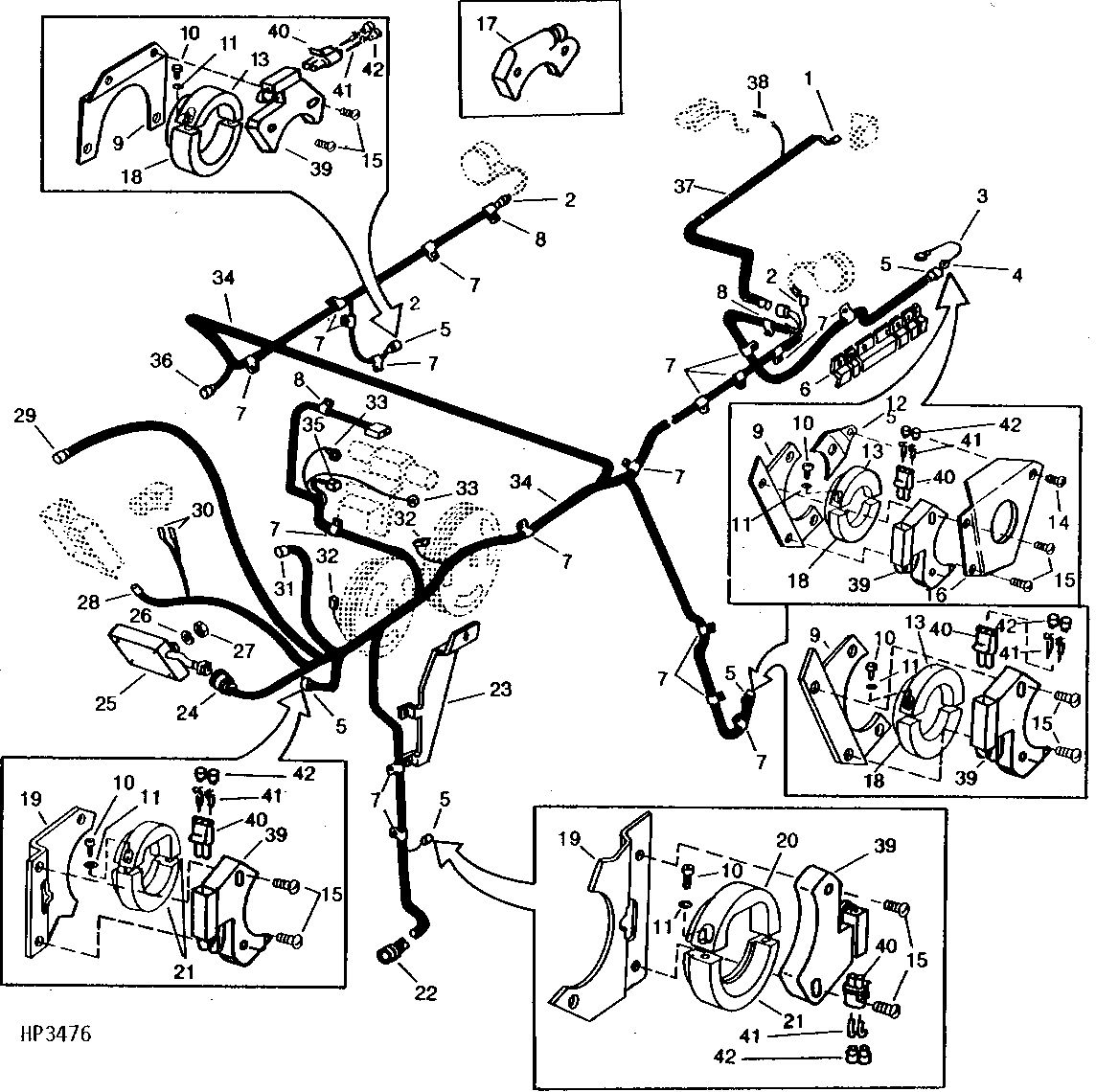

SEPARATOR MAIN HARNESS AND LOW SHAFT MONITORS (600001 - )
