REGULAR FEEDER HOUSE SIDE SHEETS AND FRAME

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

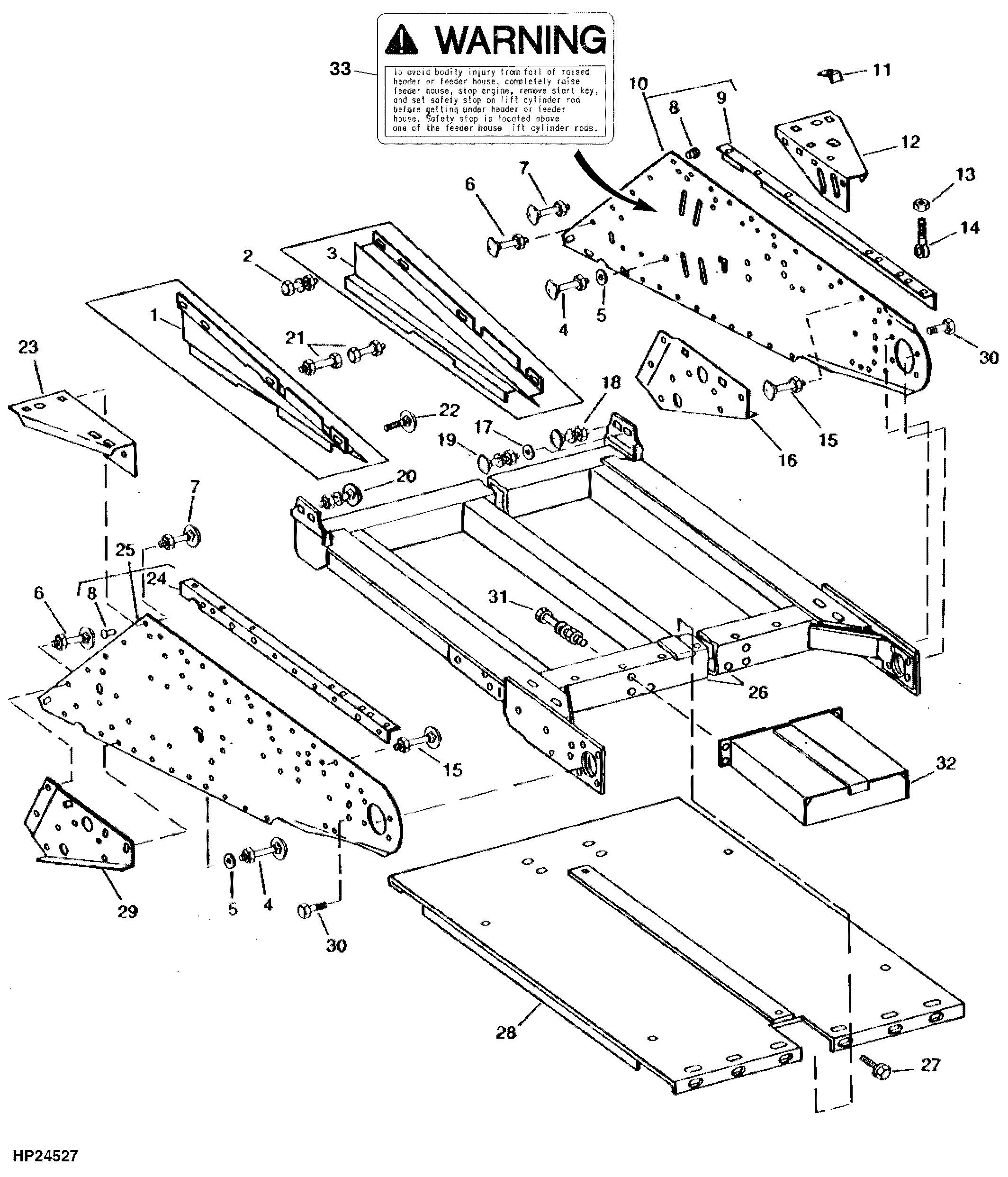

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H83824	1	Shield	INNER, LH
2	21H1029	4	Screw	5/16" X 3/4"
2	14H785	4	Nut	5/16"
2	12H303	4	Lock Washer	5/16"
3	H83823	1	Shield	INNER, RH
4	03H1522	2	Bolt	1/2" X 1-1/4"
4	12H301	2	Lock Washer	1/2"
5	24H1312	2	Washer	13/32" X 1-3/8" X 0.105"
6	03H1268	8	Bolt	5/16" X 3/4"
6	14H785	8	Nut	5/16"
7	14H812	4	NUT	3/8"
7	03H1463	4	Bolt	3/8" X 3/4"
8	16H658	16	Rivet	1/4" X 5/8"
8	16H697	2	Rivet	1/4" X 1"
9	H98042	1	Angle	RH
10	AH95280	1	Sheet	RH, WITH ANGLE
10	AH105292	1	Sheet	(SUB FOR AH101608)
10	AH111700	1	Sheet	-
10	AH117525	1	Sheet	RH
11	H88767	1	Spacer	-
11	H102691	1	Spacer	-
12	H102678	1	Brace	RH, (SUB FOR H77563)
13	14H1040	1	Nut	1/2"
14	H25438	1	Eyebolt	-
14	H102690	1	Eyebolt	-
15	03H1709	2	Bolt	5/16" X 1"
15	14H785	2	Nut	5/16"
16	H101717	1	Reinforcement	RH
17	24H1371	1	Washer	21/32" X 1-3/8" X 0.194"
17	24H1111	3	Washer	17/32" X 1-1/16" X 0.090"
18	03H1522	3	Bolt	1/2" X 1-1/4"
18	12H301	3	Lock Washer	1/2"
18	14H1040	3	Nut	1/2"
18	03H1603	1	Bolt	5/8" X 2"
18	12H294	1	Lock Washer	5/8"
18	14H1039	1	Nut	5/8"
19	14H1039	1	Nut	5/8"
19	12H301	1	Lock Washer	1/2"
19	12H294	1	Lock Washer	5/8"
19	14H1040	1	Nut	1/2"
19	03H1801	1	Bolt	5/8" X 1-3/4"
19	03H1439	1	Bolt	1/2" X 1-3/4"
20	03H1522	4	Bolt	1/2" X 1-1/4"
20	12H301	4	Lock Washer	1/2"
20	14H1040	4	Nut	1/2"
20	03H1801	2	Bolt	5/8" X 1-3/4"
20	12H294	2	Lock Washer	5/8"
20	14H1039	2	Nut	5/8"
21	21H1304	8	Screw	5/16" X 3/4"
21	14H785	8	Nut	5/16"
22	21H1137	1	Screw	5/16" X 1-1/4"
22	21H1235	1	Screw	5/16" X 1-3/4"
23	H102713	1	Brace	LH, (SUB FOR H77538)
24	H98043	1	Angle	LH
25	AH117526	1	Sheet	LH
25	AH111701	1	Sheet	-
25	AH105293	1	Sheet	LH, WITH ANGLE
25	AH91750	1	Sheet	(SUB AH102726)
25	AH102726	1	Sheet	(SUB AH105293)
26	AH101152	1	Frame	(SUB FOR AH96467)
26	AH111146	1	Frame	-
26	AH124959	1	Frame	-
27	H65108	1	Screw	SELF-TAPPING
28	AH124954	1	Bottom	FALSE BOTTOM
28	AH111180	1	Bottom	-
28	AH94033	1	Sheet	-
29	H101718	1	Reinforcement	LH
30	19H1792	4	Cap Screw	1/2" X 1"
31	12H304	6	Lock Washer	3/8"
31	14H812	6	NUT	3/8"
31	19H2205	6	CAP SCREW	3/8" X 6"
31	24H1305	4	Washer	13/32" X 13/16" X 0.065"
32	AH123769	1	Bottom	(BOTTOM SHEET)(DEALER INSTALLED)
33	H149029	1	Safety Sign	-
