Открытый узел

RASP - BAR CYLINDER ( - 562900)

RASP - BAR CYLINDER ( - 562900)

RASP - BAR CYLINDER ( - 562900)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

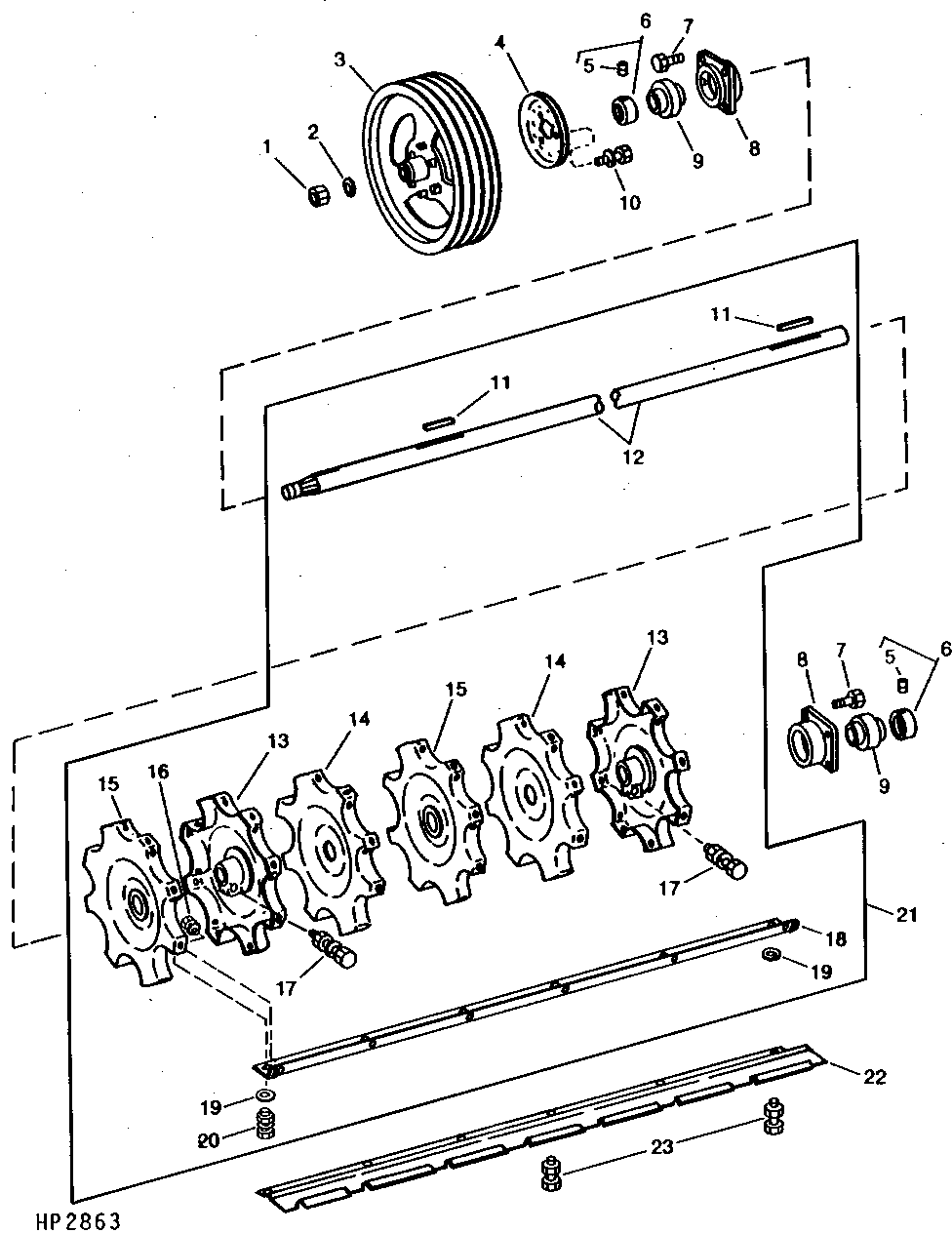

RASP - BAR CYLINDER ( - 562900)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H93931	1	Lock Nut	-
2	24H1509	1	Washer	1-25/64" X 2-1/2" X 0.194"
3	H93645	1	Pulley	569 MM (26-25/64") DIA.
4	AH94959	1	Pulley	228 MM (9-3/8") DIA.
4	AH101245	1	Pulley	239 MM (12-3/8") DIA., (150 PER CENT BEATER SPEED)
5	22H982	2	Set Screw	7/16" X 7/16"
6	JD9365	2	Eccentric Locking Collar	-
7	19H1732	8	Cap Screw	3/8" X 1-1/4"
7	12H304	8	Lock Washer	3/8"
8	H99149	2	Housing	(SUB H203950)
8	H203950	2	Housing	-
9	JD9431	2	Ball Bearing	-
10	12H304	3	Lock Washer	3/8"
10	19H1731	3	Cap Screw	3/8" X 1"
11	-	2	Part 15	(3/8" X 3/8" X 2-1/4"), (CUT FROM H64375)
12	H79642	1	Shaft	-
13	AH96531	2	Cylinder Head	(SUB AH114501 AND AH114502)
13	AH114501	1	Threshing CYL Head (W/HUB)	RH
13	AH114502	1	Threshing CYL Head (W/HUB)	LH
14	H75324	2	Cylinder Head	(SUB (2) H117614, (48) 19H2676, (48) H99923 AND (48) R42729)
14	H117614	2	Threshing Cylinder Head	-
15	AH75101	2	Threshing CYL Head (W/HUB)	(SUB AH114503)
15	AH114503	2	Threshing Cylinder Head	-
16	19M7402	48	Cap Screw	M10 X 25, (USE WITH METRIC RASP BARS)
16	19H2554	48	Cap Screw	3/8" X 5/8", (USE WITH STANDARD RASP BARS)
16	12H304	48	Lock Washer	3/8", (USE WITH STANDARD RASP BARS)
17	19H1820	2	Cap Screw	1/2" X 3"
17	12H301	2	Lock Washer	1/2", (SUB FOR P3629H)
17	14H1040	2	Nut	1/2"
18	AH132976	1	Rasp Bar	RH (STANDARD) (HARDENED) (CONTAINS (2) RASP BARS), (SUB FOR AH75106) (SUB AH161408)
18	AH161408	1	Rasp Bar	RH (METRIC) (HARDENED) (CONTAINS (2) RASP BARS), (ALSO ORDER AH163920 AND AH163921) (SUB AH221674)
18	AH132977	1	Rasp Bar	LH (STANDARD) (HARDEN), (CLH (STANDARD) (HARDENE)LH (STANDARD) (HARDENED)ONTAINS (2) RASP BARS), (SUB FOR AH75107) (SUB AH161406)
18	AH221673	1	Rasp Bar	LH (METRIC) (HARDENED) (CONTAINS (2) RASP BARS), (ALSO ORDER AH163920 AND AH163921 ) (SUB AH161406)
18	AH132978	1	Rasp Bar	RH (STANDARD) (CHROMED) (CONTAINS (2) RASP BARS), (SUB FOR AH117651 OR AH126547 ) (SUB AH161401)
18	AH161401	1	Rasp Bar	RH (METRIC) (CHROMED) (CONTAINS (2) RASP BARS), (ALSO ORDER AH163920 AND AH163921 ) (SUB AH221683)
18	AH161399	1	Rasp Bar	LH (METRIC) (CHROMED), (SUB FOR AH132979 (STANDARD)) (CONTAINS (2) RASP BARS), (ALSO ORDER AH163920 AND AH163921 ) (SUB AH221681)
19	24H1303	2	WASHER	13/32" X 11/16" X 0.065", (USE FOR LEVELING CONCAVE)
20	19H3239	48	Cap Screw	3/8" X 1-1/4", (USE WITH STANDARD RASP BARS)
20	H135891	48	Lock Nut	(USE WITH METRIC RASP BARS)
20	19M7783	48	Screw	M10 X 16, (USE WITH METRIC RASP BARS)
20	H99923	48	Lock Nut	(USE WITH STANDARD RASP BARS)
20	R42729	48	Washer	(USE WITH STANDARD RASP BARS)
21	AH76102	1	Rasp-Bar Cylinder	(HARDENED RASP BARS)
21	AH117625	1	Rasp-Bar Cylinder	(CHROMED RASP BARS)
22	H79486	8	Plate	-
23	19H2676	48	Cap Screw	3/8" X 1"
23	19H3239	48	Cap Screw	3/8" X 1-1/4"
23	H99923	48	Lock Nut	-
..	AH163920	1	Hardware Kit	RASP BAR HARDWARE, (INCLUDES (35) 19M7783, (35) 19M7402 AND (35) H135891)
..	AH163921	1	Hardware Kit	RASP BAR HARDWARE, (INCLUDES (14) 19M7783, (14) 19M7402 AND (14) H135891)
