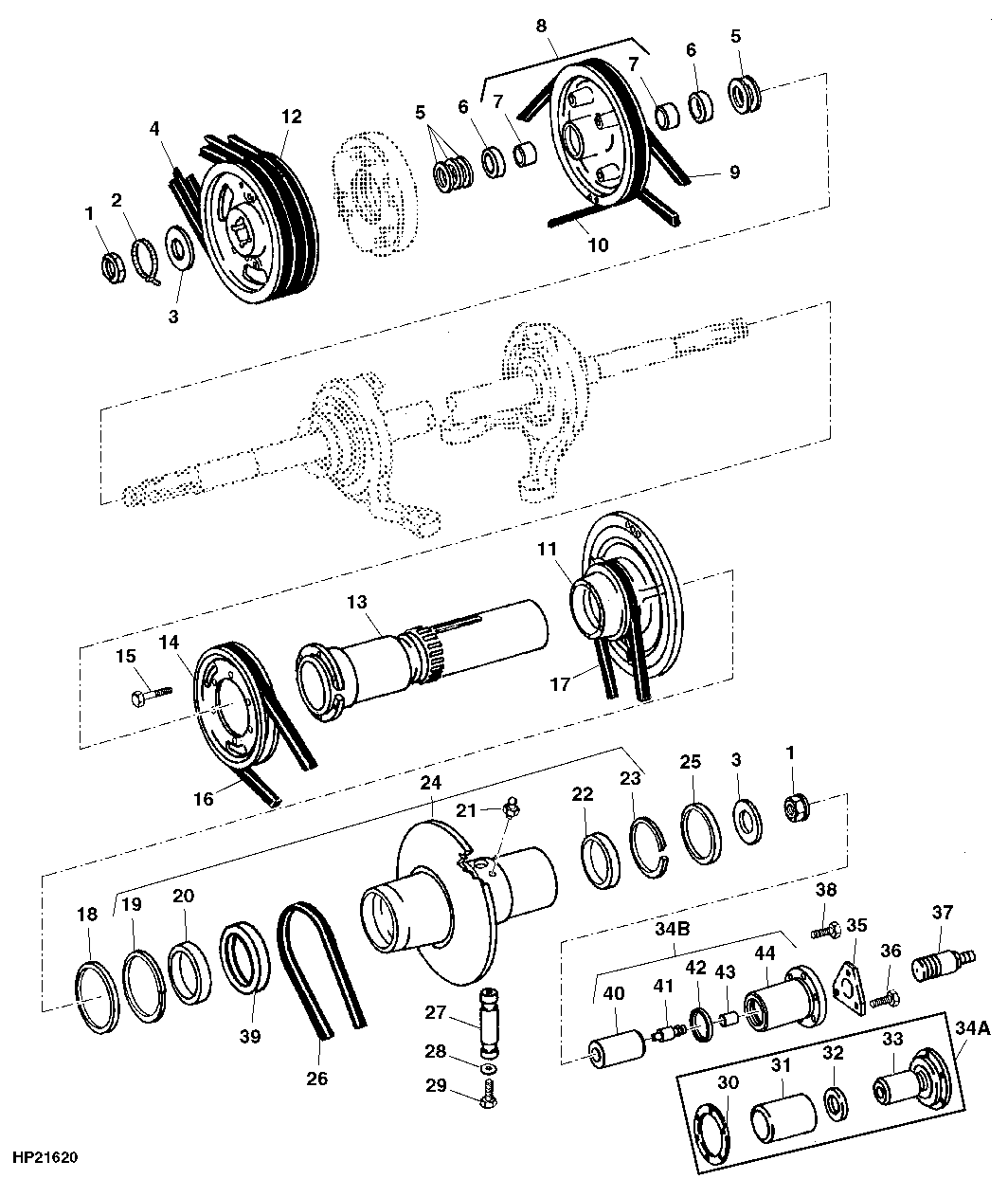

PRIMARY COUNTERSHAFT SHEAVES (562901 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H82620	2	Lock Nut	-
2	H77698	1	Tie Band	-
3	24H1668	2	Washer	1-17/64" X 2-1/4" X 0.134"
4	H94508	1	V-Belt	-
5	24H1577	5	Washer	1-25/32" X 2-7/8" X 0.036"
6	AH76193	2	Seal	-
7	H96996	2	Bushing	-
8	AH96107	1	Pulley	(FIXED DRIVE FEEDER HOUSE AND BELT PICKUP DRIVE)
9	H86274	1	V-Belt	(HYDRAULIC PICKUP DRIVE)
10	H76030	1	V-Belt	(FIXED DRIVE FEEDER HOUSE)
11	H93627	1	Half Sheave	213 MM (8-3/8") DIA.
12	H107310	1	Pulley	389 MM (15-15/64") DIA.
13	H113744	1	Housing	-
14	H94268	1	Pulley	292 MM (11-1/2") DIA.
15	19H1800	6	Cap Screw	3/8" X 1-1/2"
15	12H304	6	Lock Washer	3/8"
16	H101436	1	V-Belt	(STRAW CHOPPER)
17	H81222	1	V-Belt	(SECONDARY COUNTERSHAFT DRIVE)
18	AH94853	1	Seal	-
19	H93631	1	Snap Ring	-
20	H93630	1	Bushing	-
21	JD7759	1	Lubrication Fitting	STRAIGHT, 1/8", (SPECIAL)
22	H113746	1	Bushing	-
23	P48691	1	Snap Ring	-
24	AH111379	1	Pulley	413 MM (16-1/4") DIA., (MARKED H113754)
25	AH87141	1	Seal	-
26	H113749	1	V-Belt	-
27	H102547	1	Pin Fastener	-
28	24H1176	2	Washer	13/32" X 1-1/4" X 0.100"
29	19H1936	2	Cap Screw	3/8" X 3/4"
30	H102533	4	Shim	-
31	-	1	Part 32	(SUB AH108867)
32	H97306	1	Seal	-
33	-	1	Part 34	(SUB AH108867)
35	H93386	1	Retainer	-
36	19H1900	3	Cap Screw	5/16" X 3/4"
36	12H303	3	Lock Washer	5/16"
37	AH92255	1	Coupling	-
38	19H1732	6	Cap Screw	3/8" X 1-1/4"
38	12H304	6	Lock Washer	3/8"
39	H110209	1	Back-Up Ring	(USE WITH SLOW SPEED CYLINDER DRIVE)
40	-	1	Part 44	-
41	-	1	Part 45	-
42	H176205	1	Seal	-
43	AH139238	1	Union Fitting	-
44	-	1	Part 48	-
34A	AH108867	1	Hydraulic Cylinder	-
34B	AH169769	1	Hydraulic Cylinder	-

PRIMARY COUNTERSHAFT SHEAVES (562901 - )
