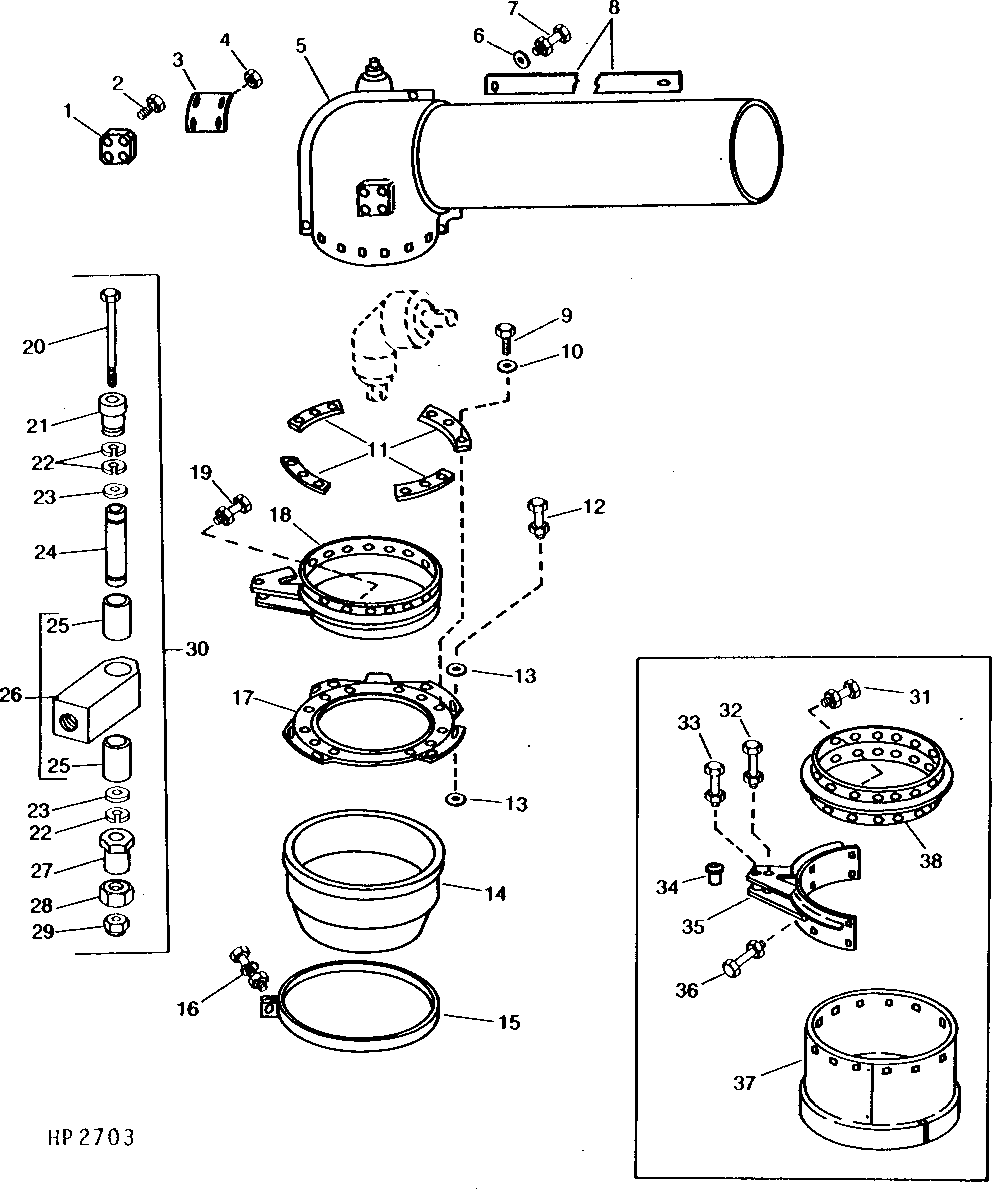

HORIZONTAL UNLOADING AUGER SWIVEL ( - 620800)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH95415	1	Support	-
2	19H1731	4	Cap Screw	3/8" X 1"
2	12H304	4	Lock Washer	3/8"
3	H96652	1	Door	(SUB AH106900, THIS APPLICATION)
3	AH106900	1	Door	(WITH SEAL)
4	A22698	4	Nut	-
5	AH99356	1	Housing	(SUB AH114642)
5	AH114642	1	Housing	-
6	24H1305	1	Washer	13/32" X 13/16" X 0.065"
7	14H812	1	NUT	3/8"
7	E55662	1	Flange Nut	-
7	12H304	1	Lock Washer	3/8"
7	19H1732	1	Cap Screw	3/8" X 1-1/4"
8	H102080	1	Strap	-
9	19H1900	12	Cap Screw	5/16" X 3/4"
9	12H303	12	Lock Washer	5/16"
10	24H1136	12	Washer	11/32" X 11/16" X 0.065"
11	H99903	4	Sector	-
12	19H1732	8	Cap Screw	3/8" X 1-1/4"
12	14H812	8	NUT	3/8"
12	12H304	8	Lock Washer	3/8"
13	24H1305	16	Washer	13/32" X 13/16" X 0.065"
14	H108805	1	Seal	-
14	H118568	1	Seal	-
15	H107102	1	Band	STEEL
15	H118569	1	Band	-
16	19H2440	1	CAP SCREW	5/16" X 2-1/2"
16	19H3588	1	Cap Screw	5/16" X 3-1/2"
16	12H303	1	Lock Washer	5/16"
16	14H785	1	Nut	5/16"
17	H100204	1	Support	-
18	H115290	1	Ring	-
19	14H1080	12	Nut	3/8"
19	14H846	12	NUT	3/8", (SUB 14H1080, THIS APPLICATION)
19	03H2304	12	Bolt	3/8" X 1"
19	12H304	12	Lock Washer	3/8"
20	19H3354	1	CAP SCREW	5/16" X 4-1/4", (SUB 19H2342, THIS APPLICATION)
20	19H2342	1	CAP SCREW	5/16" X 4-1/2"
21	H116794	2	Spacer	(SUB H127591)
21	H127591	1	Spacer	-
22	40M1822	3	Snap Ring	-
23	24H1685	1	Washer	11/32" X 47/64" X 0.083", (SUB 24H1362, THIS APPLICATION)
23	24H1362	2	Washer	41/64" X 1" X 0.075"
24	H116795	1	Trunnion	(SUB H127593)
24	H127593	1	Trunnion	-
25	H96455	2	Bushing	-
26	AH122494	1	End	-
27	H128262	1	Bolt	-
28	14H821	1	Nut	5/8"
29	M40699	1	Nut	-
30	AH124017	1	Kit	-
31	03H2304	24	Bolt	3/8" X 1"
31	14H846	24	NUT	3/8"
31	12H304	24	Lock Washer	3/8"
32	19H1868	1	CAP SCREW	1/2" X 3-3/4"
32	U12622	1	LOCK NUT	-
33	19H2043	1	Cap Screw	5/16" X 3-1/2"
33	19H2493	1	Cap Screw	5/16" X 3-3/4"
33	M40699	1	Nut	-
34	H102045	1	Bushing	-
35	AH102043	1	Sleeve	UPPER ASSEMBLY
36	03H1500	8	Bolt	3/8" X 1"
36	12H304	8	Lock Washer	3/8"
36	14H812	8	NUT	3/8"
36	03H2304	8	Bolt	3/8" X 1"
36	12H304	8	Lock Washer	3/8"
36	14H846	8	NUT	3/8"
37	AH101927	1	Adapter Fitting	-
38	H96301	1	Ring	-

HORIZONTAL UNLOADING AUGER SWIVEL ( - 620800)
