Открытый узел

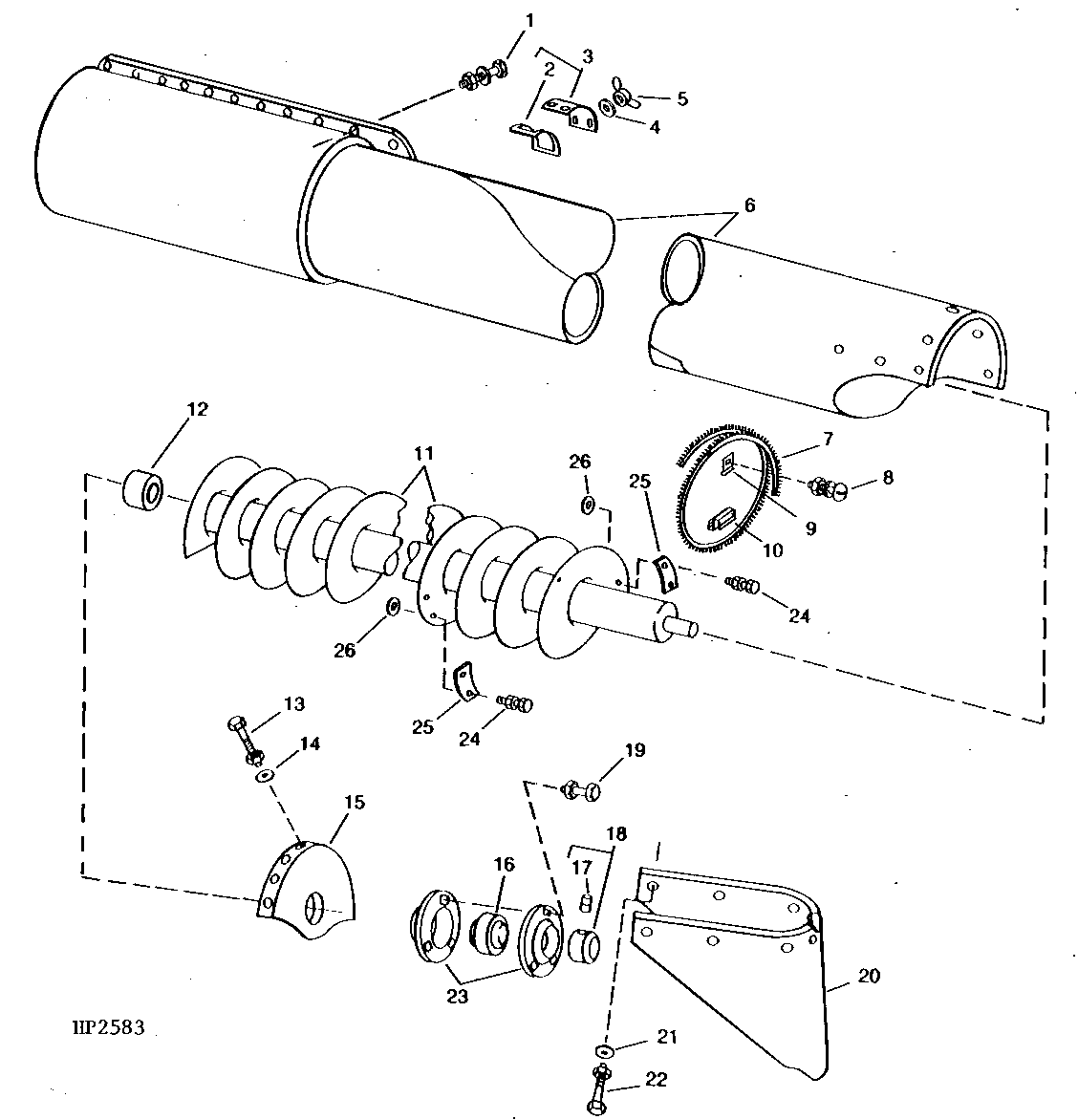

Horizontal Unloading Auger And Housing

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2915	11	CAP SCREW	5/16" X 1-1/4"
1	12H303	11	Lock Washer	5/16"
1	14H785	11	Nut	5/16"
1	19H2117	11	Cap Screw	5/16" X 1-1/8"
2	-	1	Part 5	(USE WITH H96652) (MAKE FROM H81330)
3	H96652	1	Door	(USE WITH AH112865) (SUB AH106900, THIS APPLICATION)
3	AH106900	1	Door	-
4	24H1224	4	Washer	11/32" X 1" X 1/16", (USE WITH H96652 AND AH106900)
5	14H819	4	Wing Nut	5/16", (USE WITH H96652 AND AH106900)
6	AH95390	1	Housing	(SUB AH112865, AH106900, (4) 24H1224, (4) 14H819 AND H81330)
6	AH145050	1	Housing	SUB FOR AH112865 (15FT)
7	AH111354	1	Seal	-
8	21H1029	3	Screw	5/16" X 3/4"
8	14H785	3	Nut	5/16"
8	12H303	3	Lock Washer	5/16"
9	H113717	3	Clip	-
10	H114709	6	Clip	-
11	AH96555	1	Auger	(SUB AH113501)
11	AH113501	1	Auger	(SUB AH123437)
11	AH123437	1	Auger	17 FT.
12	H116292	1	Splined Coupling	-
12	H127921	1	Splined Coupling	-
13	A22698	5	Nut	-
13	N167650	5	Screw	-
13	N10213	5	Lock Nut	-
13	N10213	11	Lock Nut	-
13	19H1900	11	Cap Screw	5/16" X 3/4"
13	N10212	5	Self-Locking Screw	-
14	24H1136	11	Washer	11/32" X 11/16" X 0.065"
15	H96645	1	Cap	-
16	AH169077	1	Ball Bearing	(SUB FOR JD9273) (SUB AH214862)
16	AH214862	1	Ball Bearing	-
16	JD8665	1	Ball Bearing	-
17	22H897	1	Set Screw	1/4" X 1/4"
18	JD8554	1	Eccentric Locking Collar	-
19	03H1709	3	Bolt	5/16" X 1"
19	12H303	3	Lock Washer	5/16"
19	14H785	3	Nut	5/16"
20	H96655	1	Spout	(SUB H109093)
20	H109093	1	Spout	-
21	24H1293	6	Washer	11/32" X 1-1/16" X 0.120"
21	24H1293	8	Washer	11/32" X 1-1/16" X 0.120"
22	19H1905	8	Cap Screw	5/16" X 1"
22	N10213	5	Lock Nut	-
22	A22698	8	Nut	-
23	C13434	2	PRESSED FLANGED HOUSING	-
23	H103264	2	Pressed Flanged Housing	-
24	03H1495	1	Bolt	3/8" X 1-1/2"
24	03H1557	1	Bolt	3/8" X 1-1/4"
24	H99923	1	Lock Nut	-
25	H119566	1	Strip	-
25	H119567	1	Strip	-
25	H119568	1	Strip	-
26	24H1300	1	Washer	25/64" X 2" X 0.220"
26	24H1311	1	Washer	13/32" X 1-1/4" X 0.220"

Horizontal Unloading Auger And Housing

Нет текстового описания
