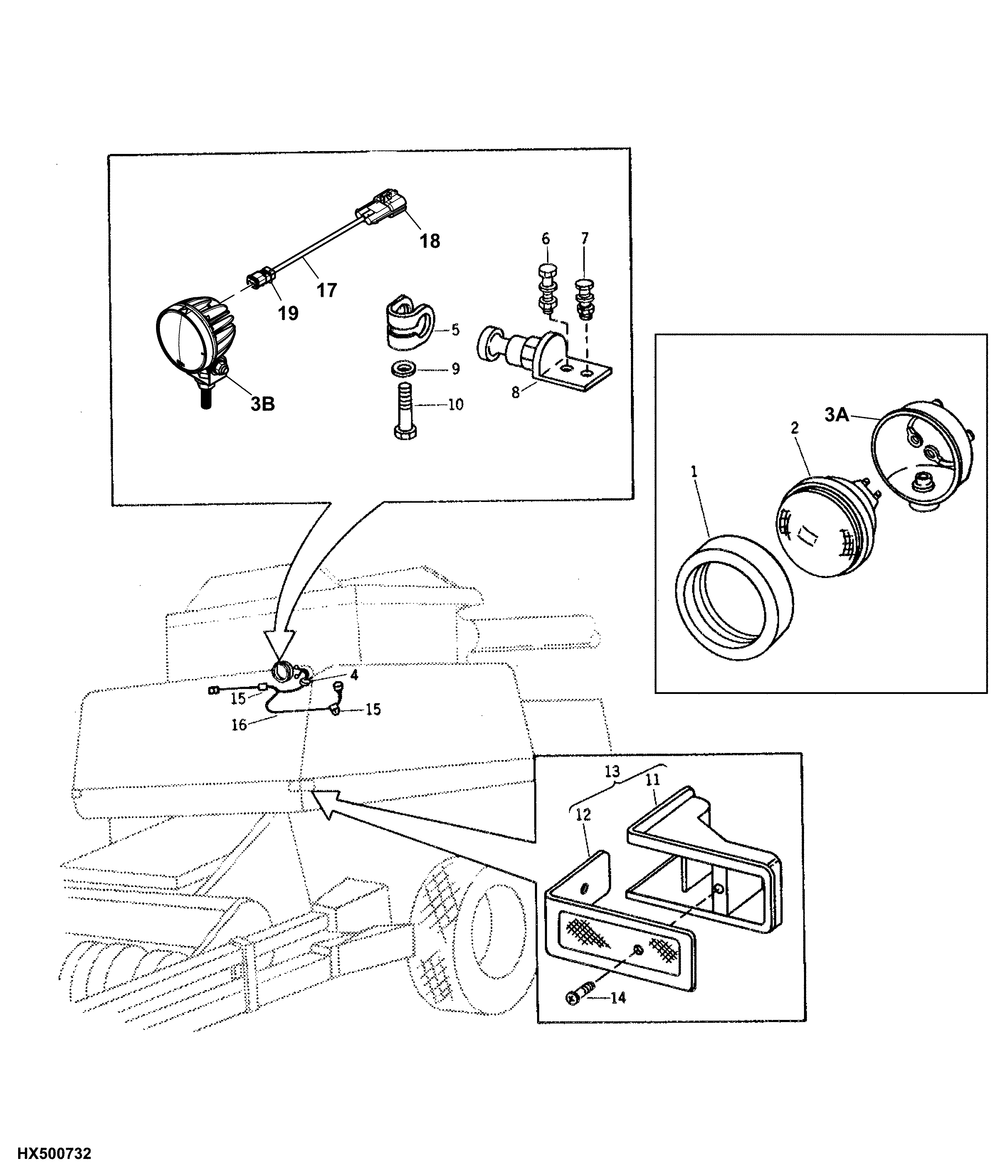

Field Lamp, Harness and Front Reflectors

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R31250	1	BEZEL	USE WITH AH98901
2	AR42591	1	Headlight	35-WATT, USE WITH AH162581
2	AF3892R	1	Bulb	USE WITH AH98901
4	P45476	1	Grommet	-
5	H145112	1	Clamp	SUB FOR R67377
6	19H1900	1	Cap Screw	5/16" X 3/4"
6	12H303	1	Lock Washer	5/16"
6	14H785	1	Nut	5/16"
7	19H1792	1	Cap Screw	1/2" X 1"
7	12H301	1	Lock Washer	1/2"
7	14H1040	1	Nut	1/2"
8	AH100022	1	Bracket	-
9	24H1111	1	Washer	17/32" X 1-1/16" X 0.090"
10	19H1974	1	Cap Screw	1/2" X 2-3/4"
11	-	1	Part 17	SERVICED IN AH80596
12	H81068	1	Lens	-
13	AH80596	1	Reflector	Amber
14	19H2036	1	Cap Screw	1/4" X 7/8"
15	T32231	1	Clamp	-
16	AH98921	1	Wiring Harness	Field Lamp
17	AXE84599	1	Wiring Harness	Jumper Harness, Service Light USE WITH CXT17293
18	57M7305	1	Elec. Connector Housing	-
18	57M7285	2	Elec. Connector Terminal	Cavity A, C
18	57M9219	2	Elec. Connector Seal	Cavity A, C
18	57M10772	1	Elec. Connector Cable Seal	Cavity B
18	57M7307	1	Electrical Connector Assy	-
19	57M8022	1	Elec.Connect Locking Device	-
19	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
19	57M8639	1	Elec. Connector Housing	-
3A	AH98901	1	Headlight	Lamp SUB FORAH162581 KIT AND AF3892R
3B	CXT17293	1	Floodlamp	SUB FOR AH98901, ALSO ORDER AXE84599

Field Lamp, Harness and Front Reflectors
